Automatic Dual-Axis Turntable
Automatic Dual-Axis Turntable

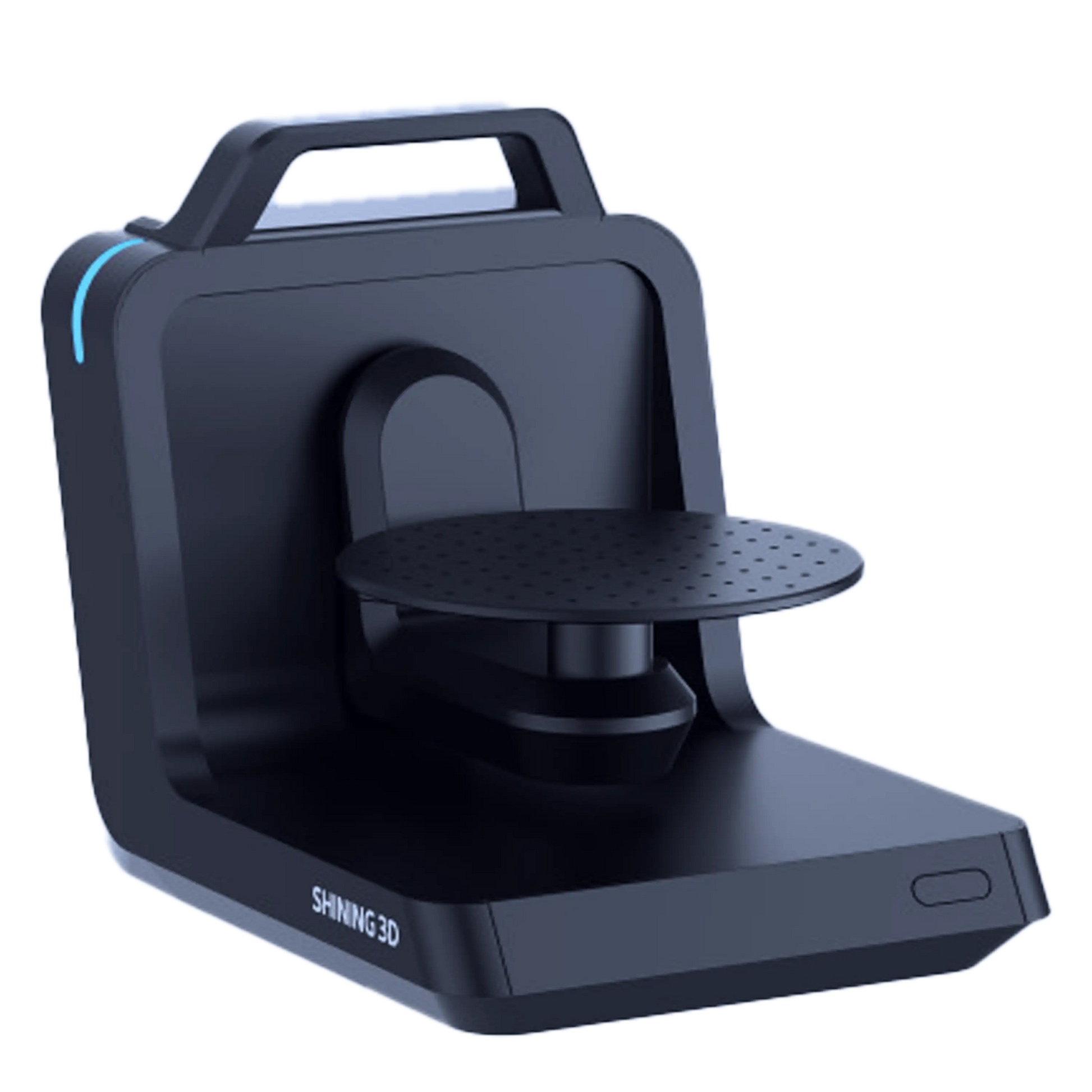

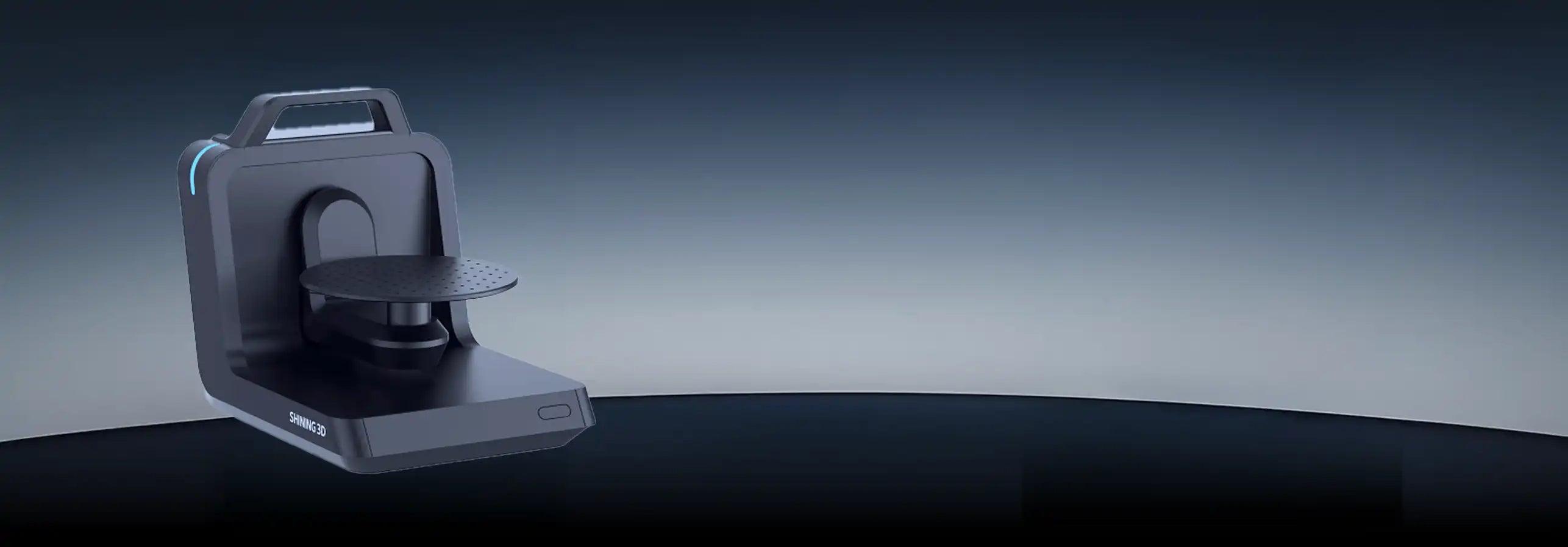

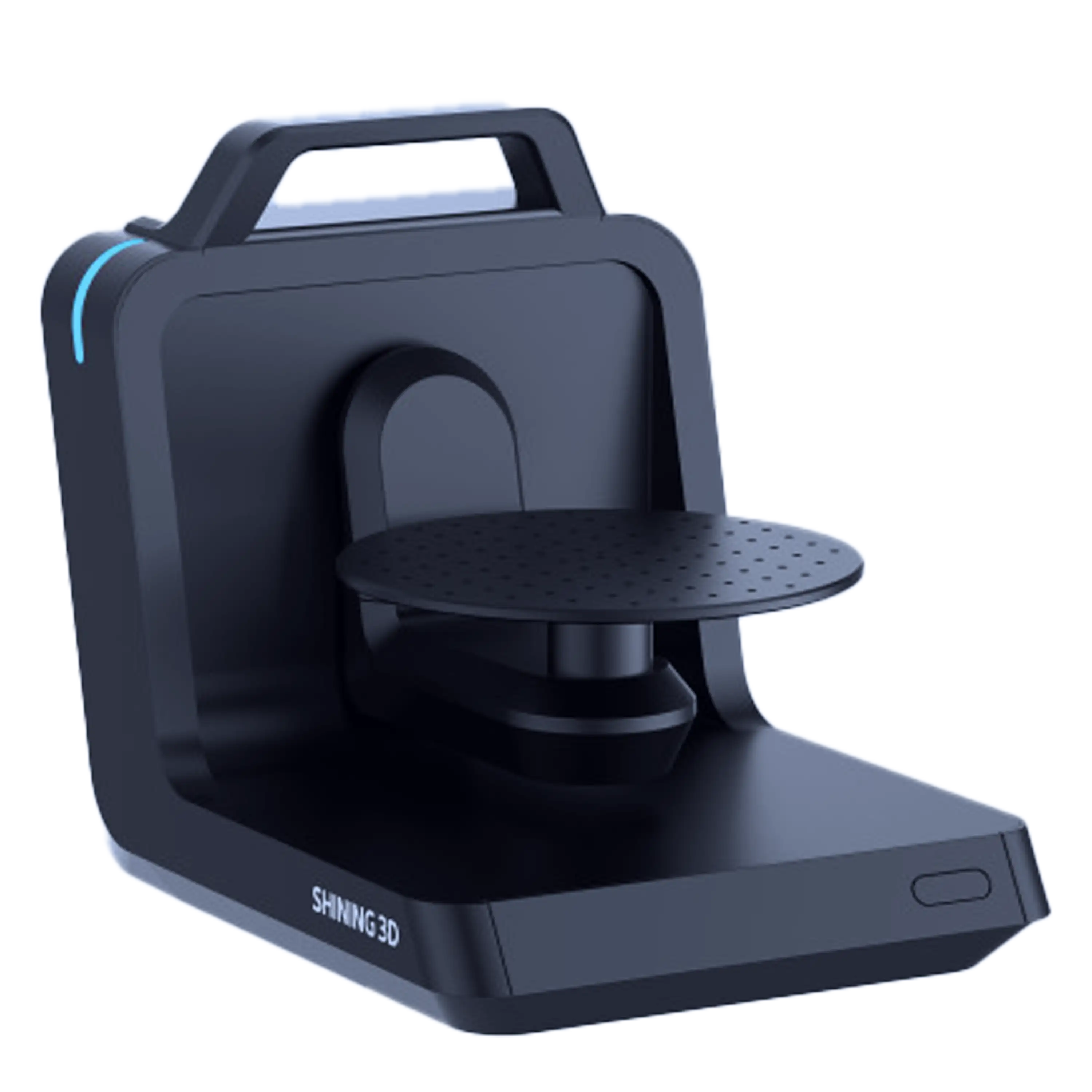

The Shining 3D Automatic Dual-Axis Turntable automates multi-angle rotation and tilt path execution directly inside the scanning software, eliminating line-of-sight occlusions on complex geometries and enabling hands-off batch inspection workflows.
Automatic
Automatically performs rotation and tilting for efficient, multi-angle 3D scanning.
Complete
Captures full 3D data with intelligent path planning and add-scan algorithms.
Simple
Supports small-part batch scanning and adapts to diverse 3D inspection tasks.
One-click operation streamlines scanning and lowers the entry barrier.
Engineered for Metrology Throughput

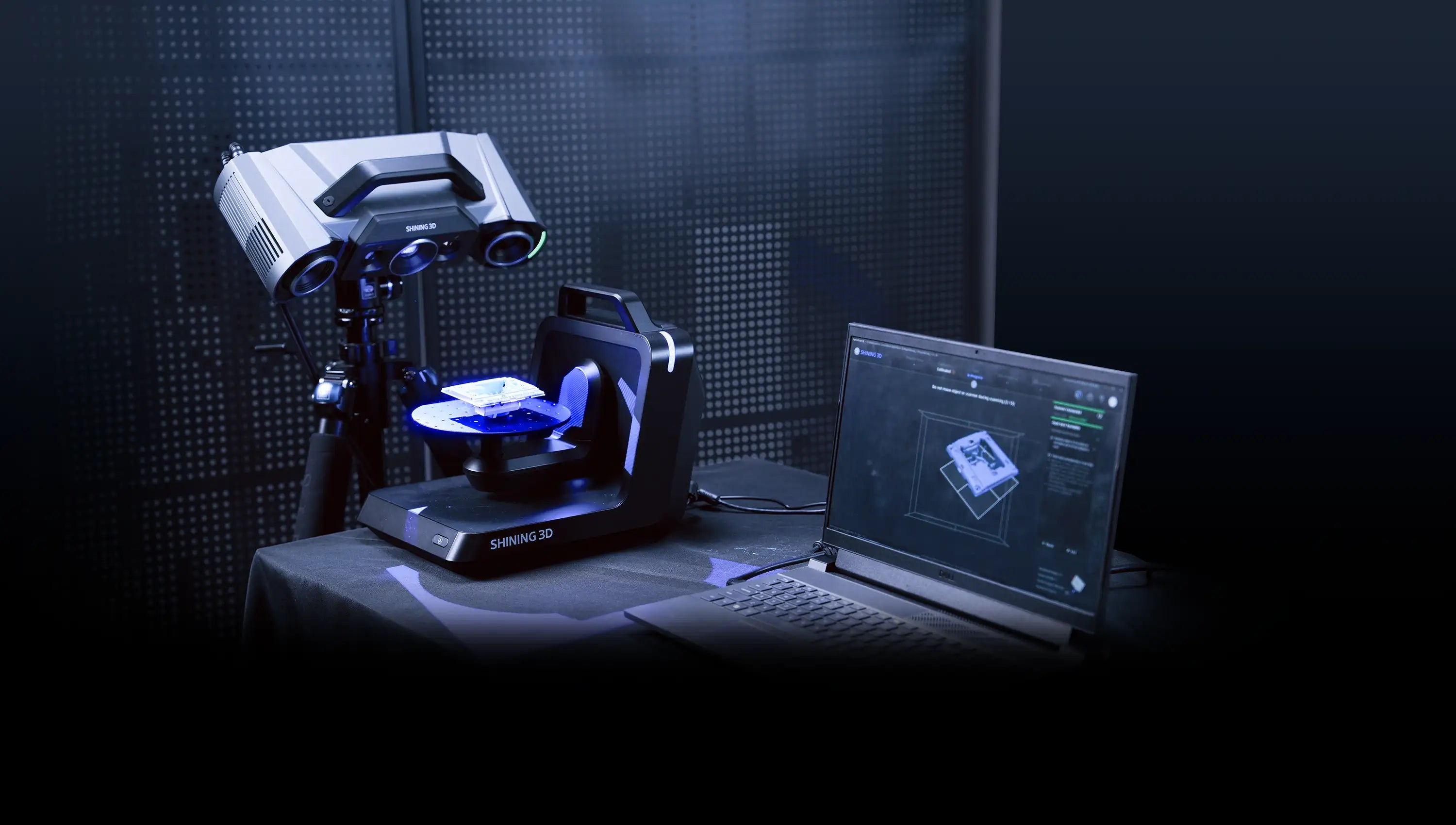

Single-Click Software Synchronisation
The unit interfaces natively with Shining 3D metrology acquisition software. Instead of manually jogging axes or stitching disjointed scanning batches, users define the scan envelope and trigger the routine with a single click. The platform controls both rotation and incline in real time, coordinating sensor triggers to capture dense point clouds with zero manual handling.
Intelligent Path Planning & Auto "Add-Scan"
Deep blind holes, steep drafts, and internal pockets frequently lead to line-of-sight dropouts. The platform's integrated software intelligence automatically identifies point-cloud gaps and recalculates table orientation. It activates targeted "add-scan" passes to capture missing surfaces, delivering fully closed polygon meshes and watertight CAD comparisons without user repathing.

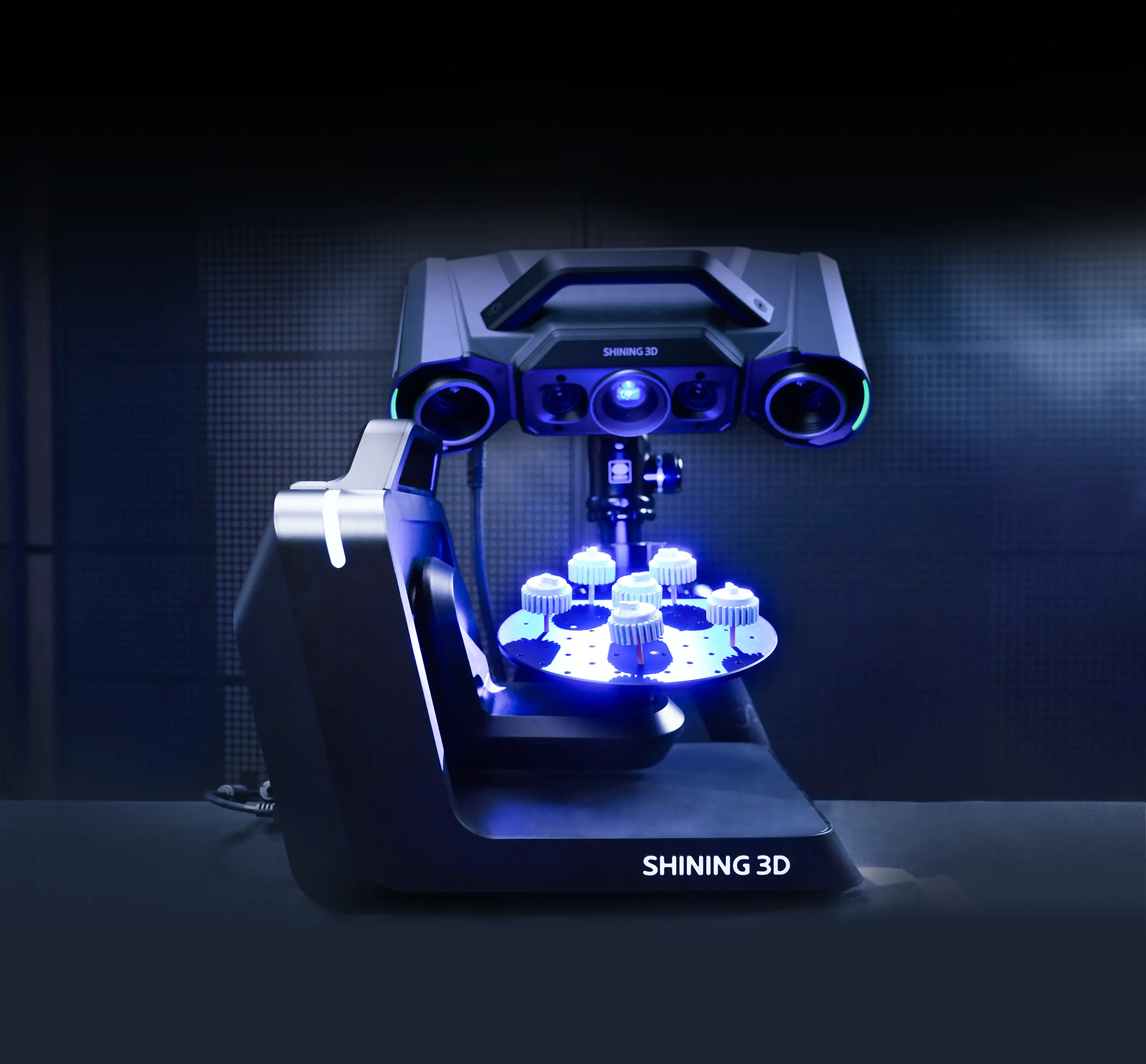

Multi-Object Batch Segmentation
High-mix, low-volume inspection runs demand maximum turntable bed utilisation. The platform supports simultaneous multi-object scanning across its platter. The software automatically segments individual components into separate target zones, registers their geometries independently, and exports individual mesh files per component for automated pass/fail dimensional reporting.
Flip-Scanning Alignment Routines
Capturing complete 360° top-and-bottom profiles is streamlined using automatic alignment algorithms. Once the initial multi-angle routine finishes, flip the component. The software automatically detects overlapping reference landmarks, aligns the two halves, and merges the datasets into a unified coordinate system without manual target registration.

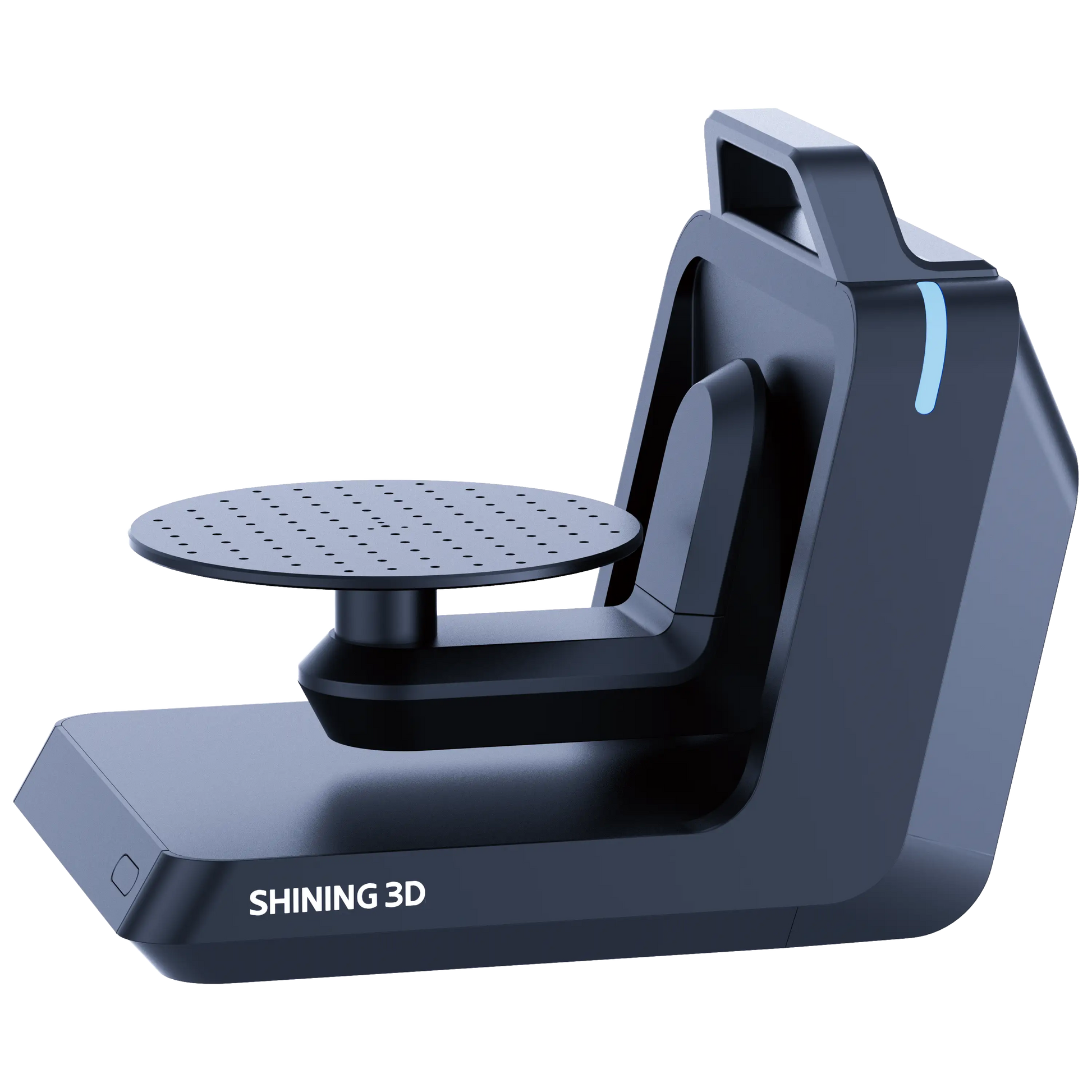

Portable All-In-One Architecture
Featuring an all-in-one design, the turntable is easy to transport and use. It can be paired with high-precision 3D inspection systems for on-site inspections in production workshops.
