XYZ Printing

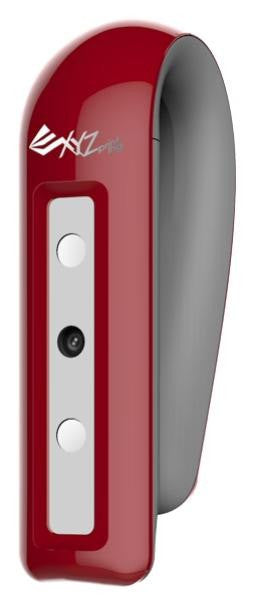

Handheld 3D Scanner PRO by XYZ Printing


The XYZprinting Hand held 3D Scanner PRO- low cost and easy to use for the whole family! This is the updated PRO model which now includes a full body scanning mode.

handheld 3d scanner PRO by xyzprinting

3D Scanner Pro, Enjoy full body scanning with the XYZprinting 3D Scanner. This full body scanner is powered by Intel® RealSense and has a 648x480 at 30 fps scanning resolution. Three Scanning Modes : Head, Object, and Full Body scanning mode are available in the updated version of XYZscan Handy. Maximum scan volume reaches 39.3(D) x 39.3(W) x 79.7 (H) inches. Large objects can also be scanned in Full Body mode. Powered by Intel® RealSense� module, the XYZprinting 3D Scanner Pro is fast in both scanning ability and processing speed. It allows for a 3.93 - 27.55 inch operating range with the wide scanning distance of 5.9 - 9.84 inch, and the quality resolution of 640 x 480 at 30FPS.

Turn physical objects into digital replicas with the XYZprinting 3D Scanner powered by Intel® RealSense™ technology is handheld, fast to use and easy to operate.

XYZprinting 3d scanning process

Just 4 easy steps to replicate.-HOLD, SCAN, SAVE, PRINT

Specifications

System Requirements Windows Version Supported OS: Windows 8.1, Windows 10 (64-bit) Minimum Specs CPU: 4th Generation Intel® Core™ i5 Processor (PC) and above Click Hereto learn how to check if your processor meets the system requirement. RAM: 4G RAM or more Recommended Hardware GPU:
NVIDIA GeForce GTX 750 ti (or above) with 2G VRAM (Desktop)
NVIDIA GeForce GTX 840m (or above) with 2G VRAM (Laptop)
Note: Devices with Intel® RealSense™ Scan module built-in are not supported. Click here for the full list of devices with Intel® RealSense™ Camera. Windows Surface Tablets are not supported. Mac Version Supported OS: Mac OS X 10.10, 10.11, 10.12 Minimum Specs CPU: 4th Generation Intel® Core™ i5 Processor and above RAM: 4G RAM or more GPU: Intel HD Graphics 4000 VRAM: 2G or more Supported Devices: MacBook Pro (Early 2013), iMac (Early 2013) and newer Note: MacBook, MacBook Air, or Mac Mini are not supported.

Scan Engine Intel® RealSense™ Camera
Scan Volume 150 x 150 x 150 mm (L x W x H)3.375 Litres
Maximum Scan Volume

Head Mode 400 x 250 x 400 mm

Object Model 600 x 600 x 600 mm

Body Mode 100 x 100 x 200 mm

Minimum Scan Volume 50 x 50 x 50 mm
Scan Resolution 10.0 to 2.5mm
Depth Image Size 640 x 480 @ 30 FPS
Colour Image Size 640 x 480 @ 30 FPS
Heated Bed No
Operating Range 100 to 700 mm
Data Interface USB 3.0
Dimensions 41 x 157 x 61 mm
Weight 238 grams
Software XYZscan
Output File Types XYZscan .stl  .obj
Operating System

Windows 8.1 and above (32-bit and 64-bit)

Microsoft .NET Framework 4.0 above

Supported OS: Mac OS X 10.10, 10.11, 10.12



Minimum Hardware Requirement

4th Generation Intel® Core™ i5 Process (PC)

Click here to learn how to check if your computer processor meets the system requirement.

8G RAM or above recommended

NVIDIA GeForce GTX 750 ti (or above)

Note:
Devices with Intel® RealSense™ Scan module built-in are not supported. Click here for the full list of devices with Intel® RealSense™ Camera.
Windows Surface Tablets are not supported.



Minimum Specs-


•Supported OS: Mac OS X 10.10, 10.11, 10.12
•CPU: 4th Generation Intel® Core™ i5 Processor and above
•RAM: 4G RAM or more
•GPU: Intel HD Graphics 4000

Recommended Specs-

MacBook Pro (2013 Early), iMac (2013 Early) and newer



Warranty 12 months with local (Australian) Support
