ScanMaster 3D Scanner

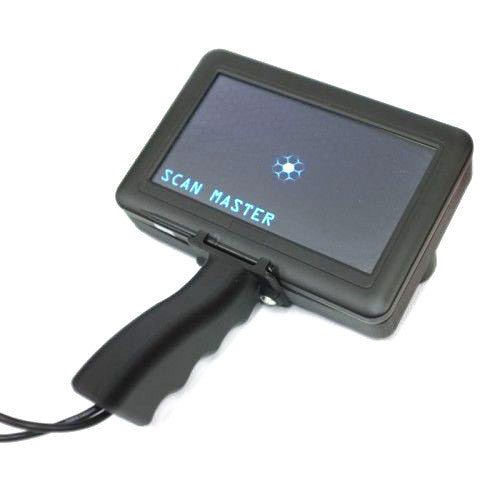

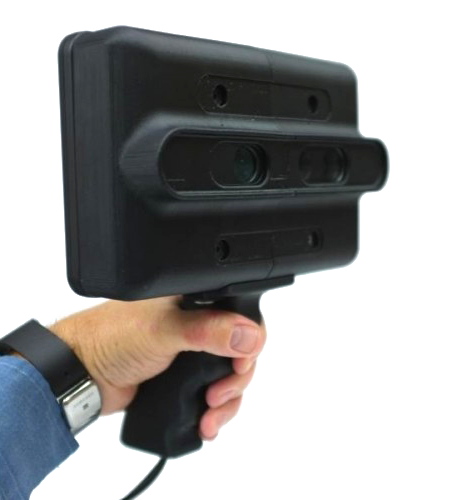

The ScanMaster 3D scanner is a full colour 3d scanning solution which features ane 7 inch USB connected touch screen with stylus, Orbbec Astra Sensor and the Free Reconstructme Software. All packaged in a convenient 3D printers casing with ergonomic handle.

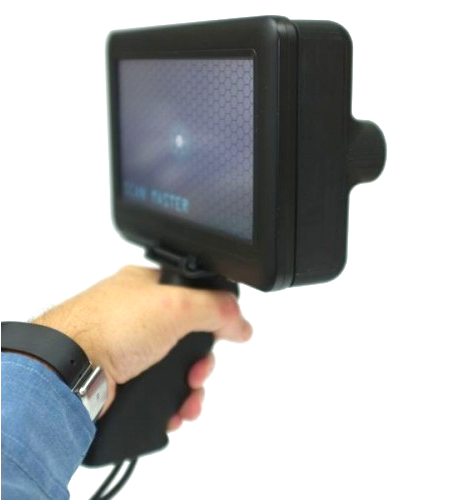

ake your 3D scanning to the next level with the Reconstructme Full Colour 3D Scanner. This incredible setup allows you to see what you are scanning in real time. By having a touch screen mounted to the camera, it allows you effortlessly to scan and construct the 3D models. It is easy to see what has and hasn’t been scanned, without twisting your neck to look at the computer screen.

If you have used other 3D scanning systems, you will appreciate the elegance of the Scan Master System.  The entire 3D scanning work flow  can be controlled from the touch screen. From starting the scan, inspecting the scan, cleaning the object and saving. This speeds up the scanning process and reduces time to setup for the next scan.

Just pop your laptop into your backpack and scan the world!


Features

    Simple menu options allow you to quickly select the size of the volume to a scanned. No complicated commands or settings that need to be specially configured.
    Scan in real time with live video feedback
    See exactly what you are scanning with the 7” touch screen.
    Process the scan within the software
    Integrated step by step workflow. Repairing, closing holes, making scans watertight, removing noise. No third party software required. Right from the touch screen!
    Save as STL for 3D printing. Output directly to an industry standard format
    Offers real time or offline recording
    Best suited for medium to large objects. 20cm or larger.

Requirements

    Recording only: Intel Centrino or higher. CPU Reconstruction: 2 Gb RAM, Quad core processor. GPU Reconstruction: 2 Gb RAM, Intel Core 2, Cuda 2.0 compatible graphics card, with 1 Gb of memory
    Recommended PC: Windows 7 (64 bits), Intel i7, 4 Gb RAM with NVidia GTX 560 or higher.
    Recommended Mac: OS X 10.8 or 10.9, Macbook Pro 2012 or Macbook Air 2013.
    2x USB 2 ports

Package Includes:

  •     3D Printed Parts
  •     7” Touch screen
  •     Orbbec Astra Sensor
  •     1.5m USB Cable

Downloads:



Specifications



  • Power Consumption

    Below 2.5W

  • Distance of Use

    Between 0.8m and 3.5m

  • Field of View

    58° H, 45° V, 70° D (Horizontal, Vertical, Diagonal)

  • Sensor

    RGB & Depth

  • Depth Image Size

    VGA (640x480) : 30 fps
    QVGA (320x240): 60 fps

  • Resolution

    SXGA (1280*1024)

  • Platform

    Intel X86 & AMD

  • OS Support

    Win 32/64 : XP , Vista, 7, 8, MAC

  • Interface

    USB 2.0/ 3.0

  • Operation Environment

    Indoor
