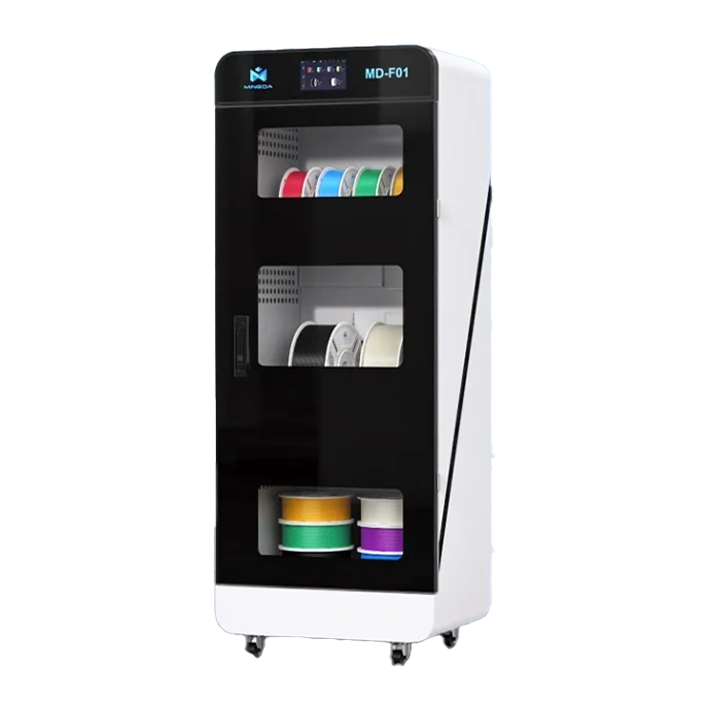

MINGDA MD-F01 | Industrial Filament Management System

What is the MINGDA MD-F01?

The MD-F01 is an integrated filament drying and feeding station designed for continuous, high-volume additive manufacturing. It combines environmental regulation, multi-spool capacity, and automated material switching to eliminate downtime and moisture-related print failures.

The MINGDA MD-F01 is a 1000W industrial filament management unit featuring automated runout switching, active ambient-to-50°C heating, and an adaptive drying environment maintained strictly below 15% RH. Designed for heavy-duty manufacturing, its 3-tier storage configuration houses up to six active spools—including 3kg industrial formats—enabling continuous 10+ day print cycles without manual intervention or material degradation.

Key Capabilities

• Automated Continuity: Features automatic filament switching when spools are exhausted, enabling 10+ days of uninterrupted printing without manual intervention.

• Active Environmental Control: Real-time monitoring with smart drying logic that maintains humidity levels below 15% RH (±5% accuracy).

• Material Intelligence: Integrated RFID support for automatic identification and traceability of official MINGDA filaments.

• Industrial Build: Constructed from metal sheet and glass, weighing approximately 85 kg, designed as a plug-and-play unit.

Storage & Capacity

The MD-F01 utilises a 3-tier smart storage configuration to accommodate varied project scales:

• Top Tiers (Active Feeding): Holds up to 4 x 1kg spools and 2 x 3kg spools for immediate use.

• Bulk Storage: Flexible base compartment (500 x 340 x 410 mm) capable of housing up to 10 x 1kg or 4 x 3kg spools.

• Spool Compatibility: Supports standard 1kg (200mm ø) and 3kg (270mm ø) formats.

Uninterrupted Extrusion Logistics

Production stops when material runs out. The MD-F01 eliminates this critical bottleneck. Integrating automatic filament switching directly into your workflow, the system mechanically transitions between exhausted and fresh spools without user input. You achieve continuous 10-day print cycles on massive geometries. Flawless, seamless surface finishes are guaranteed by completely preventing the oozing and layer-adhesion faults typically caused by manual pause-and-resume artefacts.

Active Environmental Regulation

Hygroscopic engineering polymers require aggressive environmental control. Relying on passive desiccants is insufficient for production-grade parts. The MD-F01 maintains target humidity below 15% RH with a ±5% accuracy tolerance through smart, adaptive drying logic. Internal sensors monitor the chamber in real-time, driving a 1000W heater to dynamically regulate temperatures from ambient up to 50°C. Leftover filament remains perfectly print-ready. Moisture-induced stringing, poor inter-layer bonding, and catastrophic mechanical part failure become non-issues.

Multi-Tier Industrial Capacity

Manage high-volume jobs with the integrated 3-tier smart storage architecture. The active feeding zone securely houses four standard 1kg spools or two massive 3kg spools for immediate deployment. Beneath this, the climate-controlled base compartment archives an additional ten 1kg (or four 3kg) rolls. To streamline shop-floor logistics, MINGDA’s integrated RFID sensors automatically identify official filaments. Traceability is instant. Material management requires zero guesswork.

(Note: Feeding kinematics require rigid or semi-rigid materials; flexible elastomers such as TPU are not supported).
