XYZ Printing

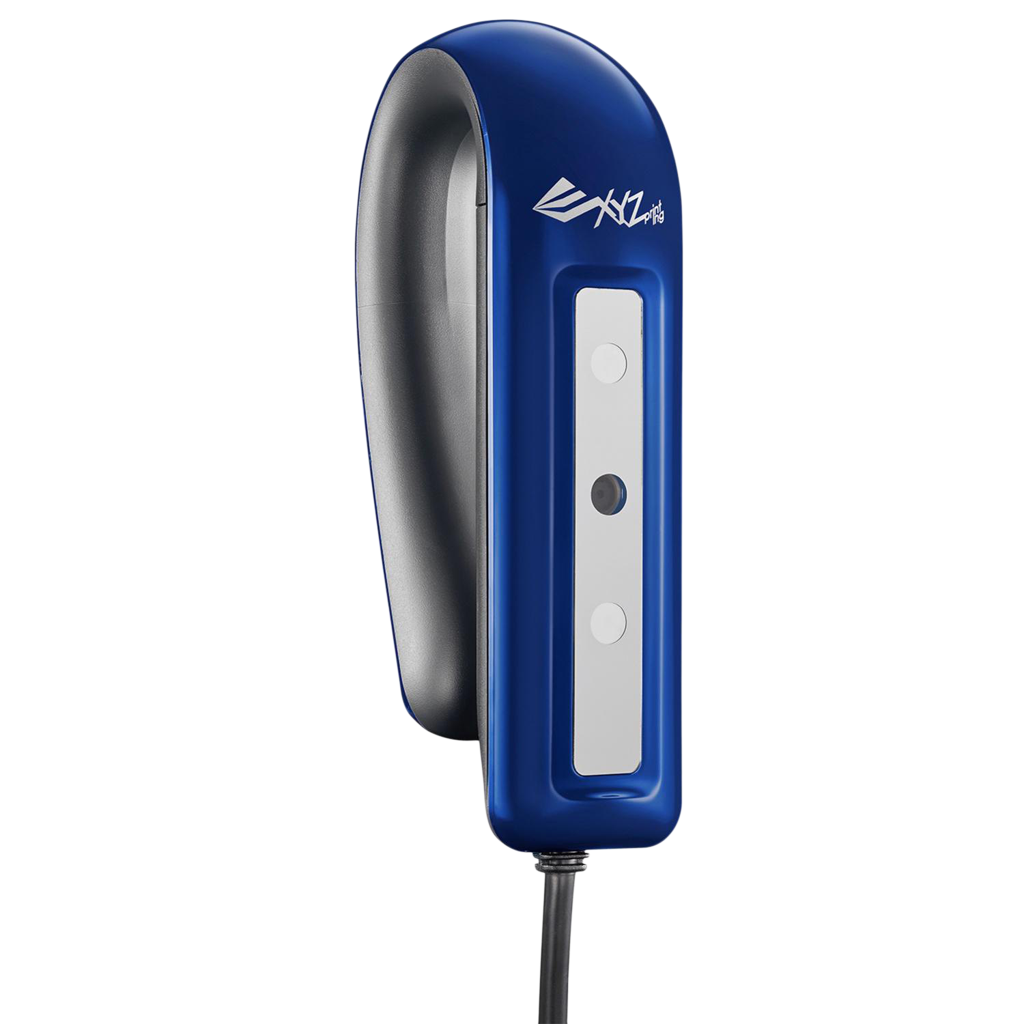

Handheld 3D Scanner PRO 2.0


Introducing the updated XYZ Handheld Scanner Pro 2.0! Now with higher resolution and better colour accuracy.

xyz hand held 3d scanner full body pro 2.0

3D Scanner Pro 2.0, Enjoy full body scanning with the XYZprinting 3D Scanner. This full body scanner is powered by Intel® RealSense and has a 1920x1080 at 40 fps scanning resolution, up from 648x480 at 30 fps of the previous model.

Three Scanning Modes : Head, Object, and Full Body scanning mode are available in the updated version of XYZscan Handy. Maximum scan volume reaches 39.3(D) x 39.3(W) x 79.7 (H) inches. Large objects can also be scanned in Full Body mode. Powered by Intel® RealSense module, the XYZprinting 3D Scanner Pro is fast in both scanning ability and processing speed. It allows for a 3.93 - 27.55 inch operating range with the wide scanning distance of 5.9 - 9.84 inch, and the quality resolution of 1920 x 1080 at 40FPS.

Thanks to the updated sensors, the XYZ Handheld 3D Scanner Pro 2.0 boasts a scan resolution of 0.2 - 1.5mm.

Turn physical objects into digital replicas with the XYZprinting 3D Scanner powered by Intel® RealSense™ technology is handheld, fast to use and easy to operate.

XYZprinting 3d scanning process

Just 4 easy steps to replicate.-HOLD, SCAN, SAVE, PRINT



Specifications

  • Scan Size (WxDxH)
    • Min - 50 x 50 x 50 mm
    • Max - 1000 x 1000 x 2000 mm
  • Scan Resolution
    • 0.2 - 1.5mm
  • Min System Requirements for Windows
    • Operating System - Windows 10 (64-bit)
    • 4th Gen Intel Core i5 Processor
    • USB 3.0 port
    • RAM - 4G RAM Basic (8G RAM recommended)
  • Recommended Hardware for Windows
    • Graphics Card
      • NVIDIA GeForce Gtx 750 ti (for desktops)
      • NVIDIA GeForce GTX 840M (for laptops)
      • VRAM - 2GB or above
  • Min System Requirements for Mac
    • Operating System - Mac OS X 10.10, 10.11, 10.12, 10.13
    • 4th Generation Intel Core i5 Processor
    • RAM - 4G RAM Basic (8G RAM recommended)
    • Graphics card: Intel HD graphics 4000
    • VRAM - 2GB VRAM
  • Supported Devices
    • Macbook Pro (Early 2013), iMac (Early 2013) and newer
    • Note: Macbook, Macbook air, or Mac mini are not supported
