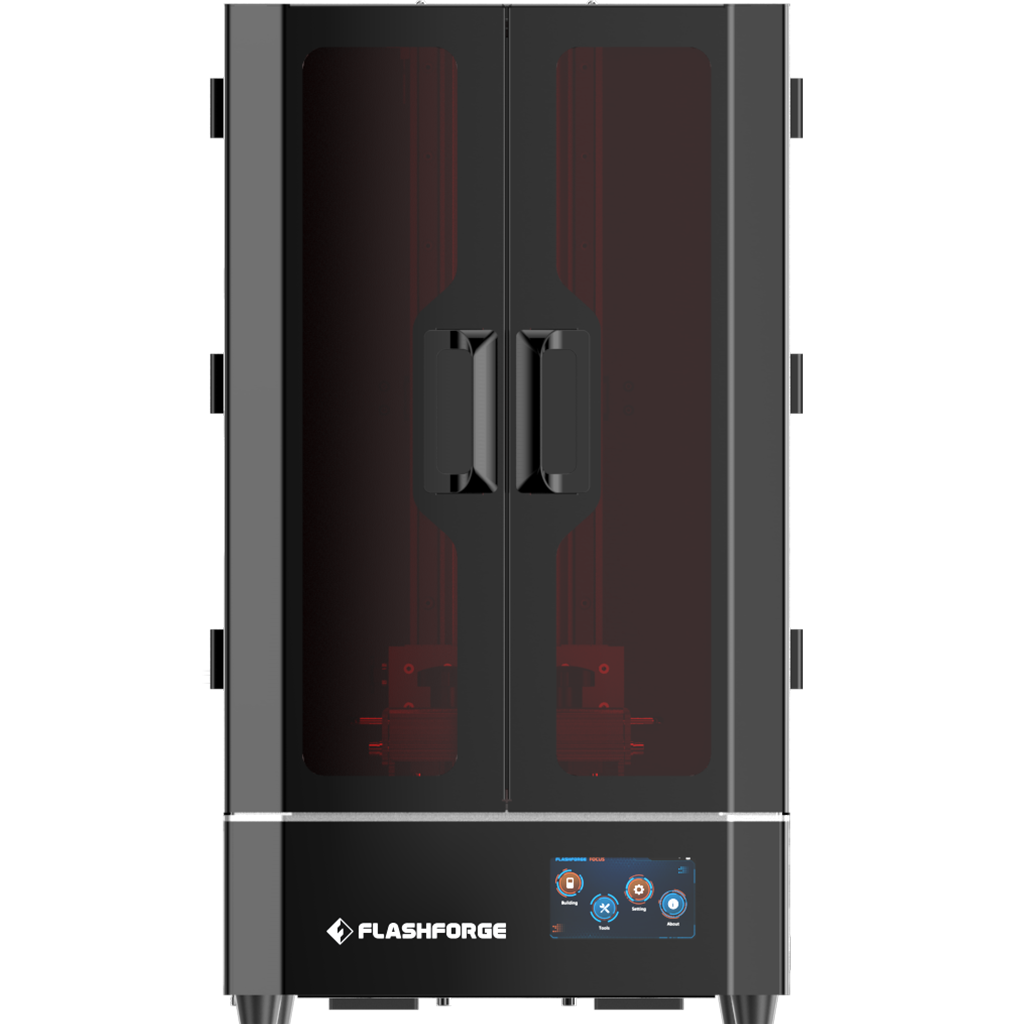

Foto 13.3 - 4K Large Volume LCD Resin 3D Printer

$2,299.00 ex gst $4,449.00 You Save 48% ($2,150.00 ex gst)

Verified Customer Reviews

Based on 42 reviews Write a Review!

Large Format Mass Production 4K Ultra HD LCD Resin 3D Printer

19L build volume: 292x165X400 mm. 4 times larger than that of other normal resin printers.

4 time faster on printing: 13.3-inch LCD 4K monochrome screen allows light transmits efficiently so as to remarkably shorten print time for molding and exposure.

13.3-inch build plate: The number of models set on the build plate could double that of other large-size SLA printers, hence shortening printing time by half.

Lifespan of 4K LCD screen increases by 20%: high-efficiency cooling system improves print quality and elongates the service life of the LCD screen.

Easy to disassemble and replace the LCD screen: the screen is set as a whole modular, which could be replaced as a whole.

Eliminating print layers: the industrial-grade dual linear ball screw ensures stable and accurate movement of motor on Z-axis, eliminating print layers.

Slicer software: FlashDLPrint.

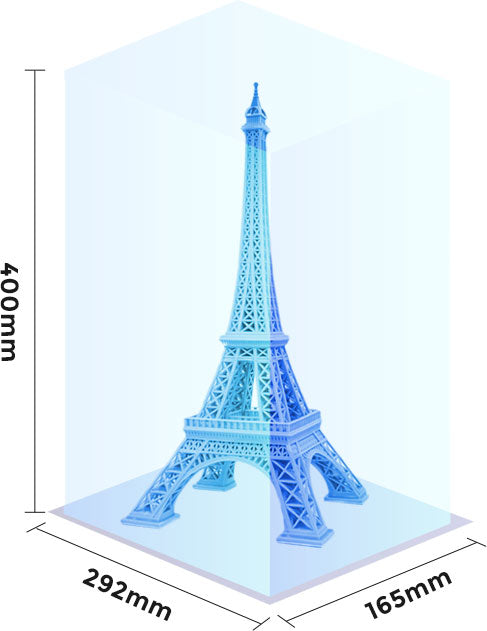

19L build volume with 13.3-inch build plate

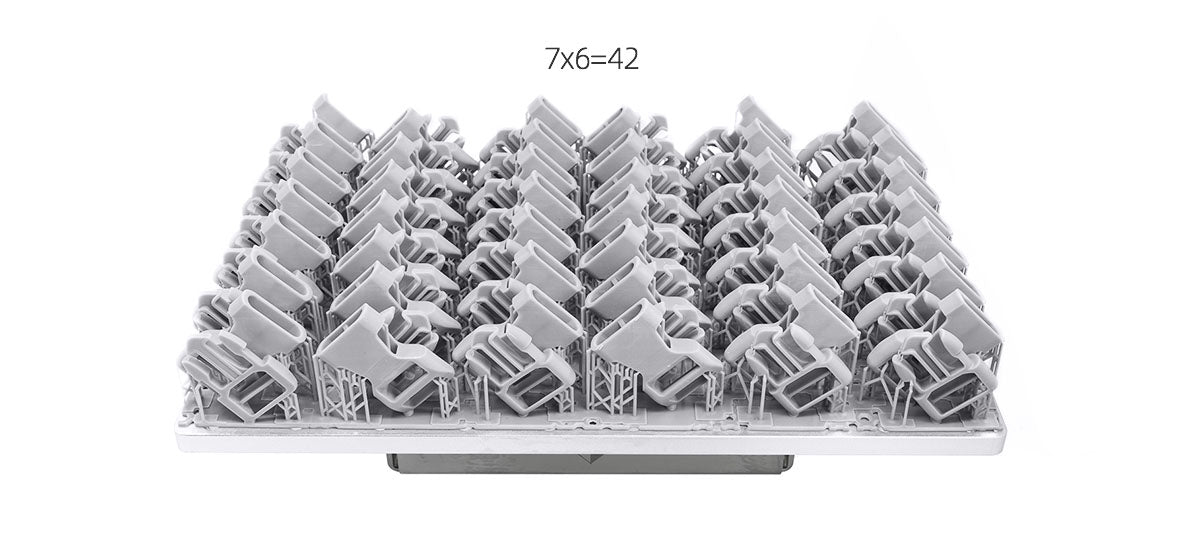

The build volume of Flashforge Foto 13.3 LCD 3D printer is 4 times larger than that of normal large-size LCD printers. The number of models set on the build plate also doubles, which means via Foto 13.3 users could save a half of the production time.

Prints are as precise as the prototype models

Foto 13.3 adopts the HD optical system that ensures high precision of models. For prototype designers and geeks, no wasting time on model polishing anymore. For 3D printing service providers and factory manufacturers that produce model products like jewelry models and parts, Foto 13.3 helps a lot on quick and precise printing.

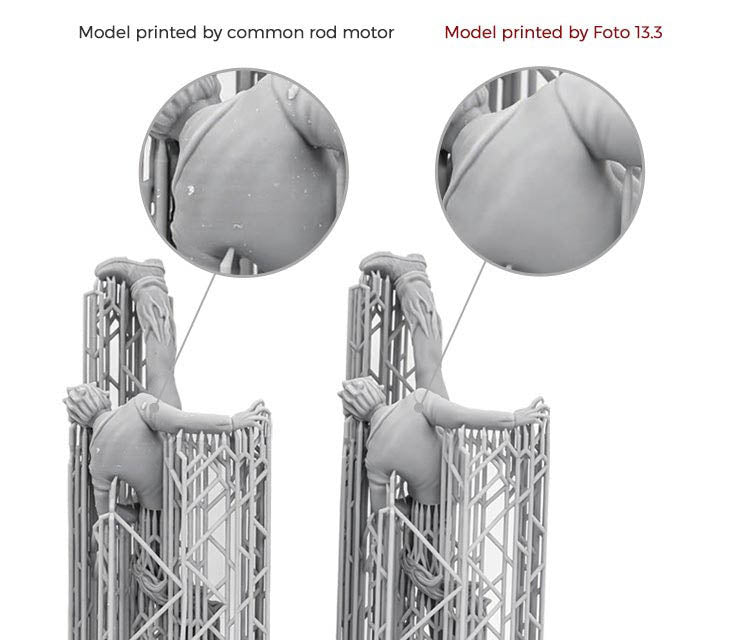

Stable Z-axis moving, eliminates print layers

Different from normal lead screw rod that may cause clear print layers, Foto 13.3 is equipped with dual-linear ball screw rod, which ensures accurate and stable Z-axis moving, hence eliminating print layers and taking on precise details.

Easy to Replace and Maintain

The LCD screen is designed as a whole module, easy to change with a new one. It does not need to be peeled off and assembled layer by layer. The screen change time is only 1/5 of other printers.

Flashforge produce a wide variety of resin materials for this printer and include printing presets for each in their software. The Flashforge Foto 13.3 can be used with non propriety 405nm wavelength resins designed for LCD curing.

Explore Compatible Resins HERE (LCD 405nm)

Specifications

Print Speed 10-30 mm/H

Build Volume: 292 x 164 x 400mm

Layer Height 0.05-0.15 mm Adjustable)

XY Resolution 76 μm

Wavelength 405 nm

Z-axis Industrial grade linear rail

Projection Screen 13.3” (
291.84 x 164.16mm)

Industrial grade 4K Monochrome

LCD Pixel resolution: 4K - 3840 x 2160

Build Plate Matte Platform With Hole (improving the adhesion of model, easy to drain the liquid under the platform during printing）

Vat Capacity 1.8 L

Connectivity USB/Ethernet

LED Lighting Power Rating: 150 Watts

Printer Dimension 380*380*685 mm

Touch Screen 4.5-inch
