AD5X Nozzle Assembly – Precision Engineered for Performance

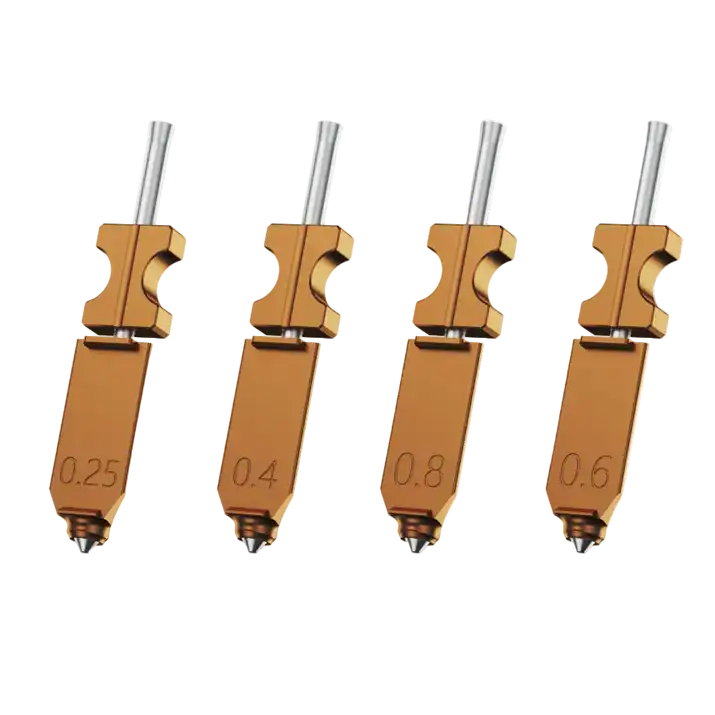

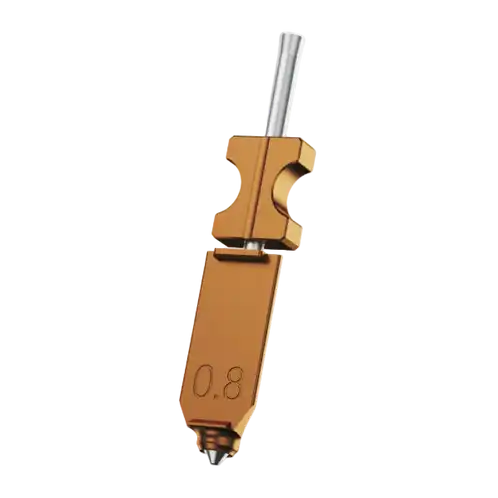

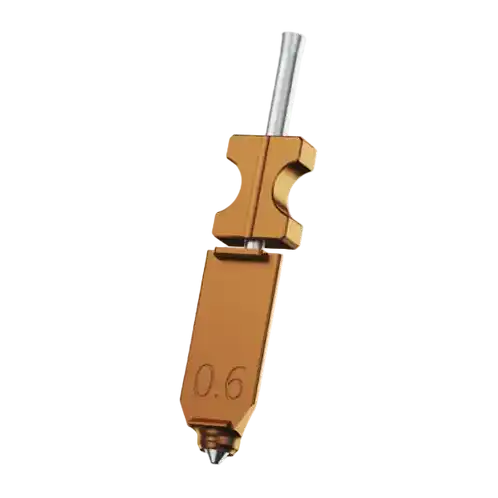

What is the AD5X Nozzle Assembly? The AD5X Series Nozzle Assembly is a unified, quick-swap hotend that integrates a metal heatbreak, heating block, and heatsink into a single continuous structure. This monoblock architecture eliminates thermal creep, prevents filament leakage, and accelerates temperature cycling. Available in 0.8mm, 0.6mm 0.4mm and 0.25mm diameters, it optimises volumetric flow for standard polymers (PLA, PETG, ABS) while delivering precision extrusion for high-resolution micro-printing.

AD5X Series Nozzle Assembly | Integrated Quick-Swap Hotend

Standard multi-part hotends introduce points of failure. The AD5X Series nozzle assembly resolves this. By fusing the precision metal heatbreak, heating block, and heatsink into an all-in-one unit, this system fundamentally shifts thermal management dynamics. Heat transfer to the nozzle tip is immediate. Active cooling efficiency across the sink is maximised. The result is a highly stable melt zone that maintains consistent extrusion pressure, even during rapid XY kinematics.

Routine maintenance is no longer a bottleneck. Swapping diameters or replacing worn components takes seconds. This completely bypasses the tedious alignment and hot-tightening procedures that often lead to catastrophic filament leaks in traditional threaded assemblies.

Core Technical Advantages

• Monoblock Integration: A single-piece structural design. This improves overall thermal efficiency while neutralising the risk of user installation errors, cross-threading, and heatbreak pooling.

• Dynamic Thermal Response: The internal geometry is engineered for rapid temperature scaling. It sheds excess heat instantly from the cold zone while locking in precise target temperatures at the nozzle orifice for uninterrupted flow.

Application-Specific Variants

Each assembly is constructed with a high-thermal-conductivity brass alloy core and capped with a wear-resistant stainless steel tip, ensuring extended operational life across abrasive and standard filaments.

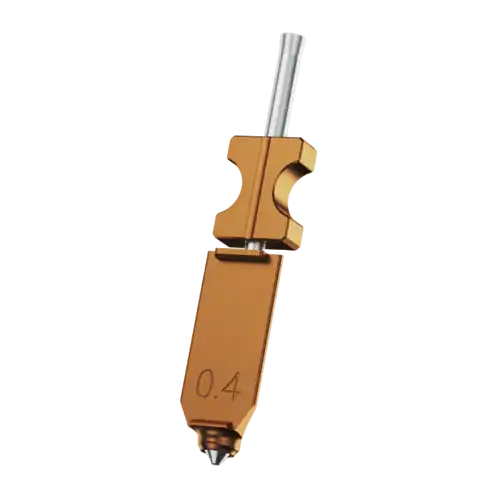

• 0.4mm Assembly (Standard Flow): The baseline for reliable, high-speed production. Calibrated for optimal volumetric flow with PLA, PETG, and ABS. It strikes the exact balance between robust layer adhesion and rapid extrusion rates.

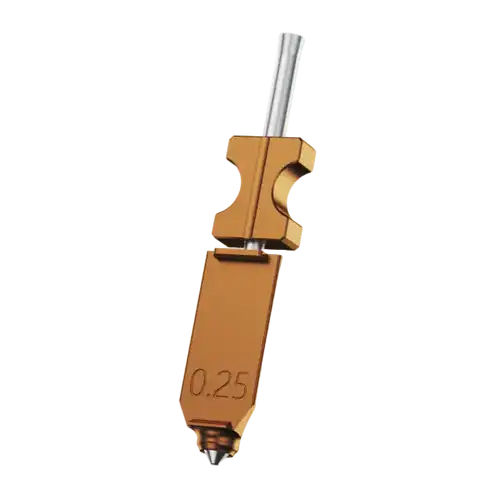

• 0.25mm Assembly (High-Fidelity): Precision execution. Engineered specifically for micro-layer heights and restricted flow rates. Essential for printing tabletop miniatures, intricate mechanical prototypes, and complex geometries requiring absolute dimensional accuracy.
