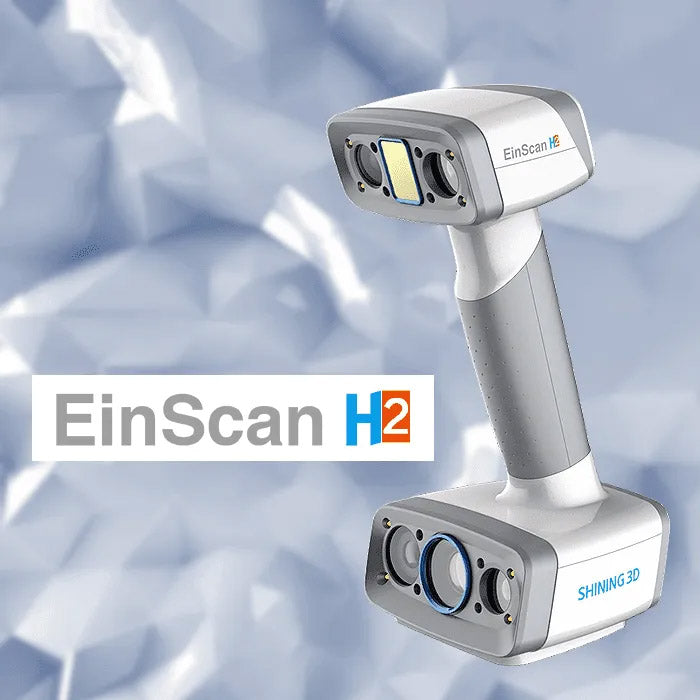

The EinScan H2 improves on its predecessor with a 5MP resolution texture camera, enhanced accuracy, and 3 infrared VCSEL projectors for more photorealistic textures and better quality data.

  • 5MP texture camera
  • 3 VCSEL projectors
  • Accuracy up to 0.05mm
  • Ultra-wide FOV and adjustable working distance

A New Benchmark in Color 3D Scanning

With improved texture camera and accuracy, the EinScan H2 is an excellent option for capturing colored, detailed objects. It remains one of the best options for 3D body scanning, too, with its dedicated algorithms and flashless infrared technology. Last but not least, having kept the EinScan H’s wide FOV and adjustable working distances, it’s just as ideal for 3D scanning large objects

What's New in EinScan H2?

  • Richer, brighter colors: The EinScan H2 is equipped with a 5MP camera offering crispier, more pristine colors. 3D models look even more realistic than before, with a higher level of detail.
  • One, two, three VCSEL projectors: It now integrates not one but three VCSEL projectors that work together to acquire dark surfaces more efficiently and adapt better to different lighting conditions.
  • Heightened accuracy and resolution: Thanks to the extra VCSEL projectors, the EinScan H2’s infrared mode is able to deliver an accuracy of up to 0.1mm (0.05mm in white light mode) instead of 0.5mm. It now also offers a better maximum resolution of 0.2mm instead of 0.25mm.
  • Adjustable working distance: The working distance is now unlocked and ready to adapt to objects and scenes of all sizes. In infrared mode, the working distance can be manually set anywhere from 200mm to 1500mm.
  • New hair capture algorithm: Our software engineers have developed a new “hair enhancement mode” to more easily capture both light and dark hair. This is an exciting addition to SHINING 3D’s “non-rigid” feature which auto-compensates slight body movements.
