Shining 3D EinScan Series | Professional 3D Scanners for 3D Design

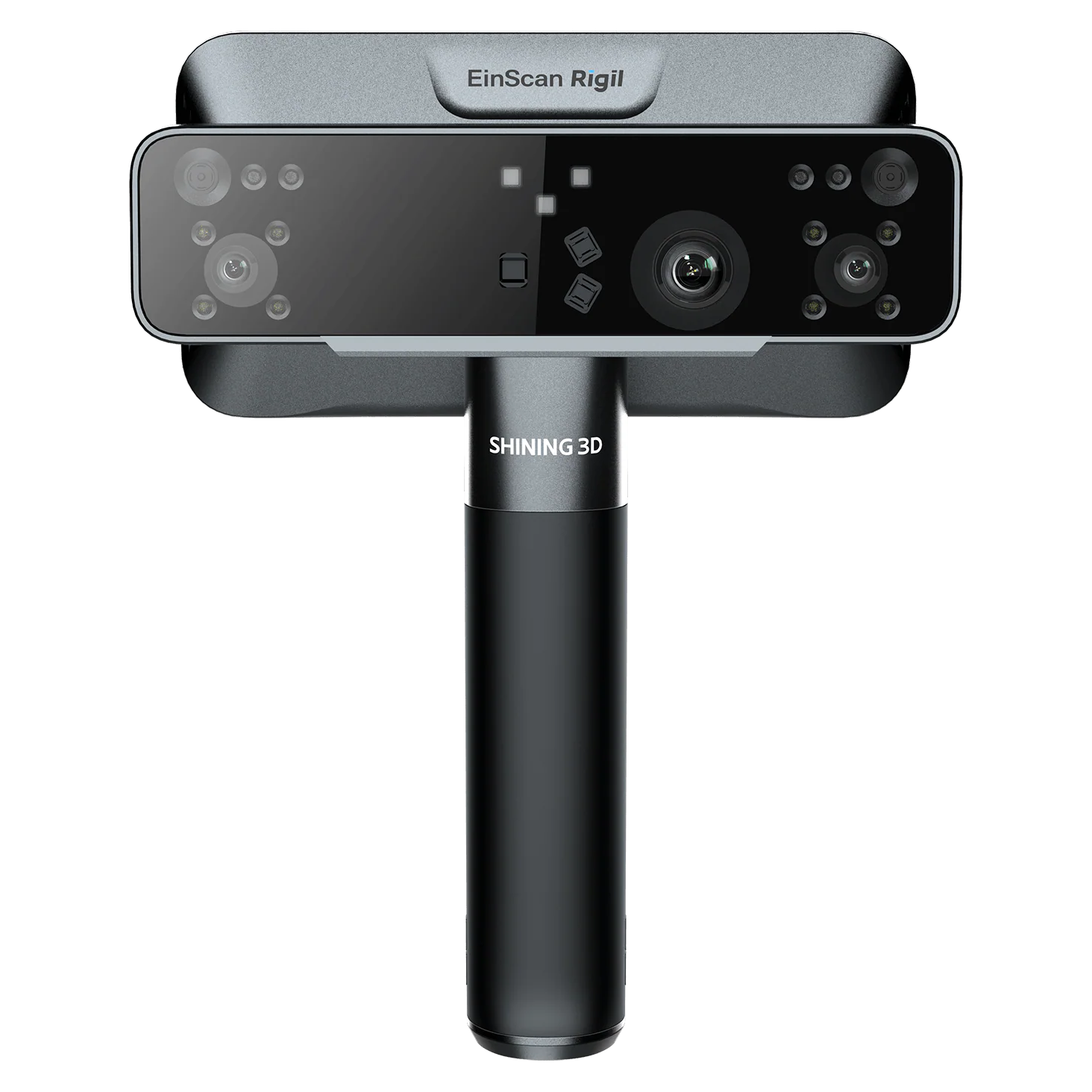

What is the EinScan Rigil Series? The Shining 3D EinScan Rigil Series is a professional ecosystem of all-in-one hybrid laser and infrared 3D scanners featuring built-in processing, onboard 2K AMOLED touchscreen displays, and complete standalone wireless operation. Utilising dual light sources—blue laser lines for metrology-grade detail and IR VCSEL for rapid, marker-free large-volume scanning—the Rigil series completely removes the dependency on tethered external computers for data acquisition, processing, and meshing. Its innovative tracking algorithms and excellent adaptability to dark and reflective surfaces significantly enhance its scanning efficiency and applicability in industries such as automotive, aftermarket, cultural heritage and art preservation, augmented reality (AR), virtual reality (VR), and digital content.
This represents a structural evolution in spatial data capture. Traditional handheld scanning forces operators into a compromised, tethered relationship with a high-performance workstation. The Rigil architecture shatters this limitation by integrating advanced computing hardware directly into the device chassis. You capture, align, mesh, and edit locally. In practice, this translates to immediate workflow compressions in high-stakes reverse engineering environments. Dropping the cables means operators can comfortably reach confined geometries—such as dense engine bays or complex aerospace internals—without negotiating a fragile data link or securing external power. Tracking retention on dark and highly reflective surfaces without the application of dulling spray sets a new operational baseline. 3D Printer Superstore has been operating since 2012, and across our team's 25 years of combined experience in product development and metrology, we recognise the Rigil platform as a definitive leap forward in autonomous precision.
The Expanded Lineup: Lite, Rigil, and Pro
What are the differences between the EinScan Rigil models? The series scales capabilities to match specific industrial requirements. The EinScan Rigil Lite offers an accessible entry point with a streamlined 17+17 laser array and 24GB RAM, retaining full wireless autonomy. The core EinScan Rigil steps up to a 25+25 crossed laser array with 32GB DDR5 RAM for demanding metrology tasks. The EinScan Rigil Pro shares the exact same high-performance hardware architecture as the standard Rigil but integrates the advanced Industrial Metrology 3D Inspection module for immediate quality control and reporting.
EinScan Rigil Lite The baseline for autonomous professional scanning. The Lite model trims the laser projection to 17+17 crossed blue lines while preserving the exact hybrid IR VCSEL projection that enables marker-free tracking. It runs on a robust 24GB of RAM and a 512GB storage drive. It is targeted at operators who demand the wireless all-in-one workflow but operate within slightly lower geometric complexity thresholds.
EinScan Rigil The core system built for versatile industrial digitisation. Centred around 25+25 crossed blue laser lines and 7 parallel lines for deep pocket extraction, the standard Rigil delivers exceptional volumetric accuracy (0.04 + 0.06 mm/m). It carries 32GB of DDR5 RAM and a 1TB SSD. This unit comfortably processes dense point clouds natively without dropping frame rates, excelling in heavy reverse engineering workflows.
EinScan Rigil Pro The turnkey metrology solution. The Rigil Pro utilises the identical hardware specifications as the standard EinScan Rigil—including the 25+25 laser array, 32GB DDR5 RAM, and 1TB SSD. The critical differentiator is software integration. The Pro model includes the SHINING3D Inspect software—a PTB-certified Industrial Metrology 3D Inspection module. This addition allows operators to quickly complete 3D comparisons, execute precise GD&T 3D measurements, and output comprehensive test reports directly. It is engineered specifically to meet the high-precision 3D measurement needs of the automotive industry, foundry industry, and stringent quality assurance fields.
Advanced Multi-Tracking & Marker-Free Operation
What is Marker-Free Laser Scanning? Marker-free laser scanning allows operators to capture high-resolution geometric data using blue lasers without physically applying reflective targets to the object. The EinScan Rigil accomplishes this by dynamically utilising its IR VCSEL projector to track spatial geometry in the background, while simultaneously projecting the blue laser array for dense dimensional data acquisition.
Why buy your EinScan Rigil 3D Scanner from 3D Printer Superstore?
We act as a technical authority for Australian design firms and engineering workshops. Choosing a Rigil system from us means you receive more than just high-end hardware; you gain access to industrial design experts who use these tools daily for complex projects. We provide professional onboarding and technical support to ensure your team can effectively translate scanned data into usable CAD models. Every unit is backed by a local Australian warranty and lifetime technical assistance, ensuring your professional workflow remains uninterrupted.
