We are Australian Distributors of the infamous E3D-Online high performance full metal Hot Ends.

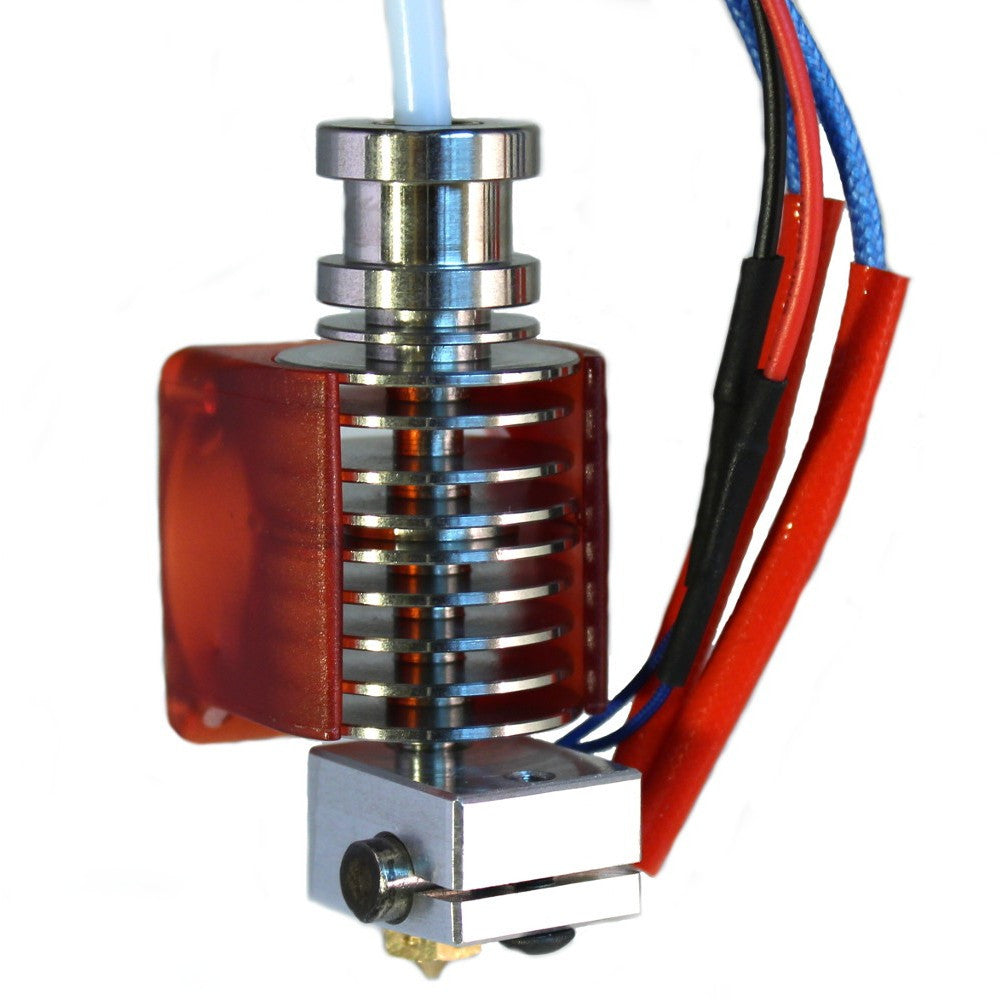

e3D 3D printer Hot Ends are well regarded as one of the best full metal Hot Ends. The e3D Lite6 is a low cost alternative to the e3D V6. It offer the high performance and reliable performance the e3D is famous for but is restricted in the print speeds and temperature that it can print as. It has a partial PTFE lined Hot End so this means that there is a temperature limit of 240C. Lite6 is aimed at the more standard materials, such as ABS and PLA, and it really does produce beautiful looking prints with outstanding reliability.
Bsuitable for printing the widest range of print materials with excellent print results, allowing for soft flexible materials but restricted from higher temperature filaments such as polycarbonate and some
Lite6 does not supersede v6 - more compliments it, think of Lite6 as v6’s little brother. It’s a lower cost hotend, with a more modest specification, but still a great option for beginners and those on a budget. Read on to find out the key differences and features.
Lite6 does not supersede v6 - more compliments it, think of Lite6 as v6’s little brother. It’s a lower cost hotend, with a more modest specification, but still a great option for beginners and those on a budget. Read on to find out the key differences and features. - See more at: http://e3d-online.com/Lite6-1.75mm-Bowden#sthash.F0NYakOB.dpuf
Lite6 does not supersede v6 - more compliments it, think of Lite6 as v6’s little brother. It’s a lower cost hotend, with a more modest specification, but still a great option for beginners and those on a budget. Read on to find out the key differences and features. - See more at: http://e3d-online.com/Lite6-1.75mm-Bowden#sthash.F0NYakOB.dpuf
Lite6 does not supersede v6 - more compliments it, think of Lite6 as v6’s little brother. It’s a lower cost hotend, with a more modest specification, but still a great option for beginners and those on a budget. Read on to find out the key differences and features. - See more at: http://e3d-online.com/Lite6-1.75mm-Bowden#sthash.F0NYakOB.dpuf
ComparisonChart
e3D V6
e3D Lite6
Max Temp
>400 Degrees Celsius
245 Degrees Celsius
Speed
20-100mm/s
20-50mm/s
Compatibility
Filament Diameter
1.75mm of 3mm
1.75mm
Bowden
Yes
Yes
Volcano
Yes
Yes
V6 Nozzles
Yes
Yes
Cross section through 3eD Lite6. Note that the PTFE tube runs further down the hot end compared to the e3D V6 Hot Ends displayed below.
Cross sectional view through the three E3D V6 hot ends. Left 1.75mm Universal, middle 3mm Direct, right 3mm Bowden.
What's in the box
Embedded Bowden Coupling (Universal for Direct & Bowden) HeatSink Heater Block 1.75 x 0.4mm Nozzle (interchangeable) Heater Cartridge Thermistor (Semitec 104GT2) Section of PTFE Fan Fan Duct All the fixings and wiring you need
This above cutaways show the internals of all three HotEnds. Left to Right: 1.75mm Universal, 3mm Direct, 3mm Bowden. - See more at: https://e3d-online.com/E3D-v6/Full-Kit/v6-1.75mm-Universal-Bowden#sthash.cOCmL0t2.dpuf
This above cutaways show the internals of all three HotEnds. Left to Right: 1.75mm Universal, 3mm Direct, 3mm Bowden. - See more at: https://e3d-online.com/E3D-v6/Full-Kit/v6-1.75mm-Universal-Bowden#sthash.cOCmL0t2.dpuf
