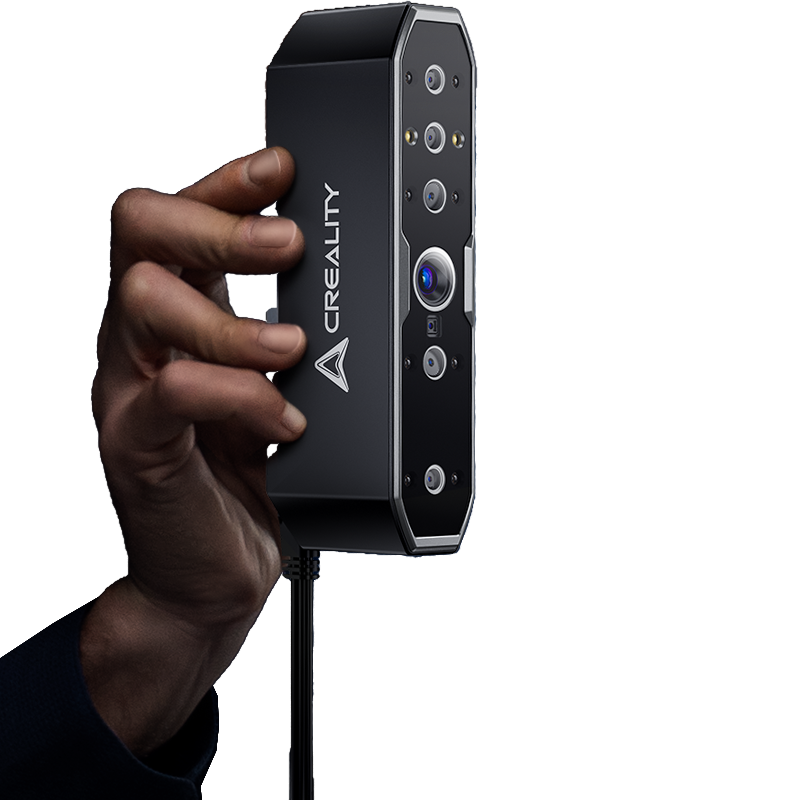

CR-Scan Otter

$1,362.73 ex gst

Verified Customer Reviews

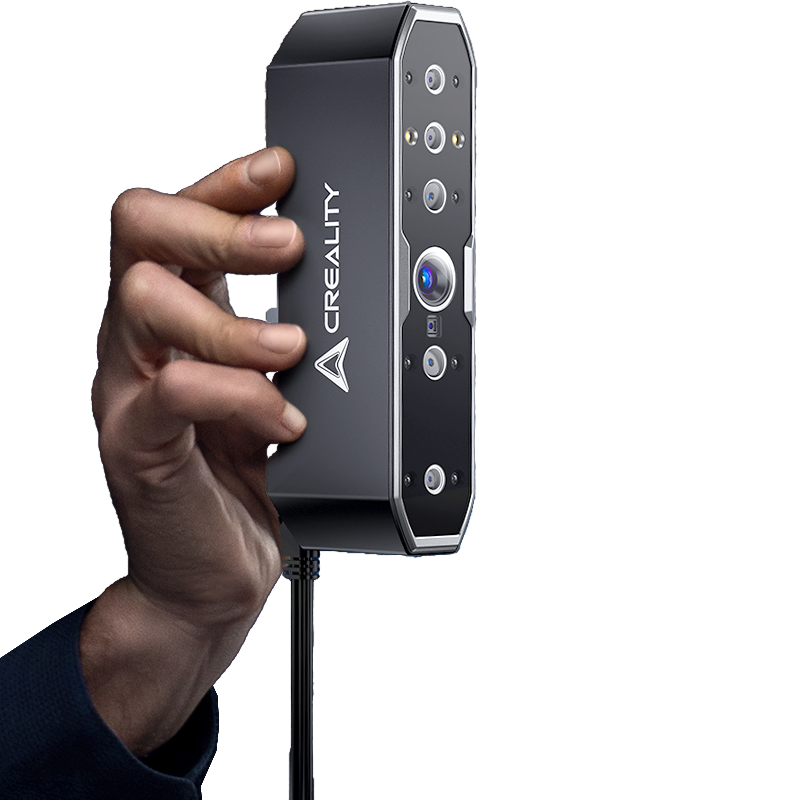

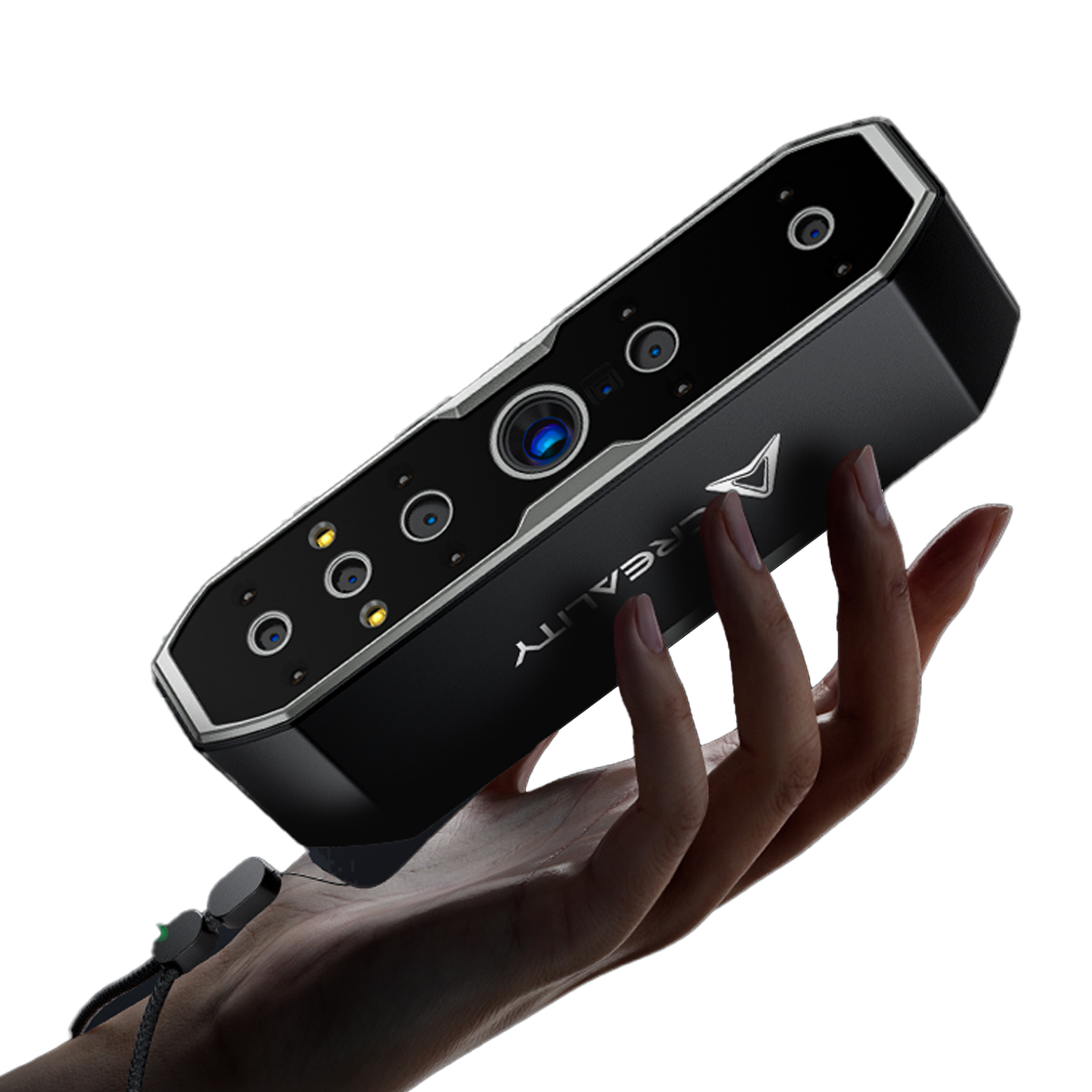

CR-Scan Otter Wide Size Range 3D Scanner

CR-Scan Otter proves to be versatile in 3D scanning, addressing personal and commercial requirements.It excels in detailed 3D scanning across a wide range of object sizes, leveraging a dual lens setup. It simplifies scanning of
traditionally challenging materials, such as black or metallic items,
without the need for additional sprays.

Having eight infrared lights, the scanner improves its capability to track marker points on objects without clear features, resulting in precise scans. This marker mode is especially beneficial for high precision objects. The scanner is engineered with advanced DOE (Diffractive Optical Element) 3D structure-light technology, as an accuracy of up to 0.02mm and a 3D resolution of 0.05-2mm. It has an object scanning range of 10mm to 2000mm.

Innovative Four-Lens Stereo Vision

The CR_Scan has two pairs of focal lenses catering to small and large object scanning. Close up for sall object or set back to capture a larger objects.

Small Object 3D Scanning

Scan small objects to 10mm in sizewith a 3D Resolution of 0.05mm.

Large Object 3D Scanning

Ideal for automotive applications. Scan large objects up to 2 meters in size with a 3D Resolution of 2mm.

ideal for 3d scanning automotive parts and full car 3d scans

3D Scan in Daylight

Engineered with advanced DOE (Diffractive Optical Element), the CR Scan Otter 3D scans using Infrared Structured Lightwhich enables it to scan in full sun light in indoors.

24-Bit Full Colour Scanning

Equipped with million pixel full-colour RGB cameras. Object colour can be captured and mapped onto the mesh model.

Creality CR Scan Otter 24 bit colour capture from built in camera

3d scan with mark point allignment with the cr scan oter for high dimensional accuracy

Marker Scanning Mode

Scan with marker points for high dimensional accuracy on parts when scanning parts with fewer features.

3D Scan Black & Metalic Objects such as car parts, tires can castings without the need of scanning spray.

3D Scan in Low Light Environments

The inbuilt dual LEDs ensure faithfully reproduced precise colour textures in in low light conditions.

Face & Body Scan Mode

Utilising Near-Infrared Light, invisible to the human eye, can safely and easily capture fine details and hair with ease.

A body scan in full colour can be captured within 2 minutes.

Powerful Scanning Software

The powerful Creality Scan, intuitively leads you step-by-step through the calibration, scanningand mesh alignment process. Once a scan is complete, the software will allow you to generate an optimsed water tight mesh ready for your down stream application.
