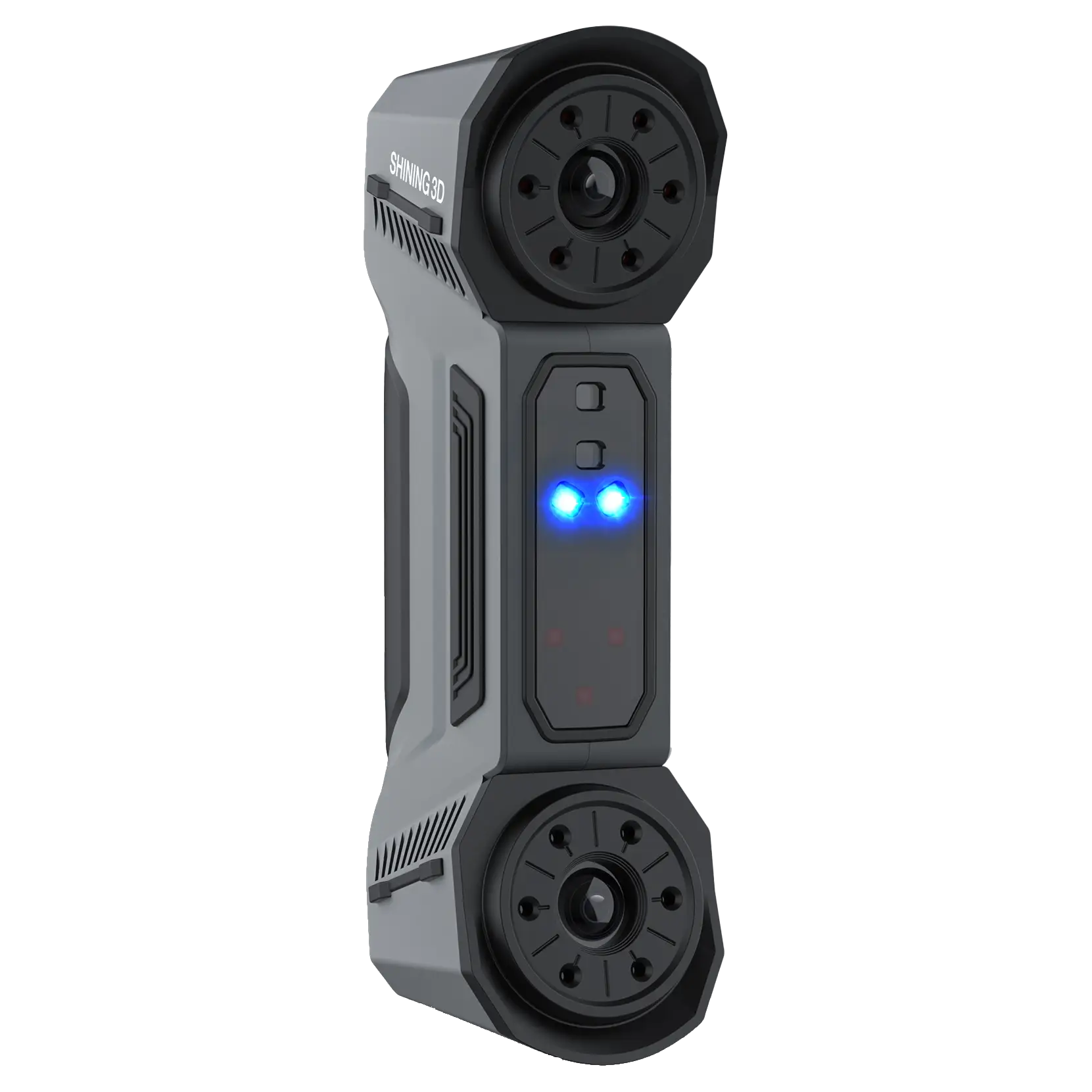

FreeScan Combo Plus
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

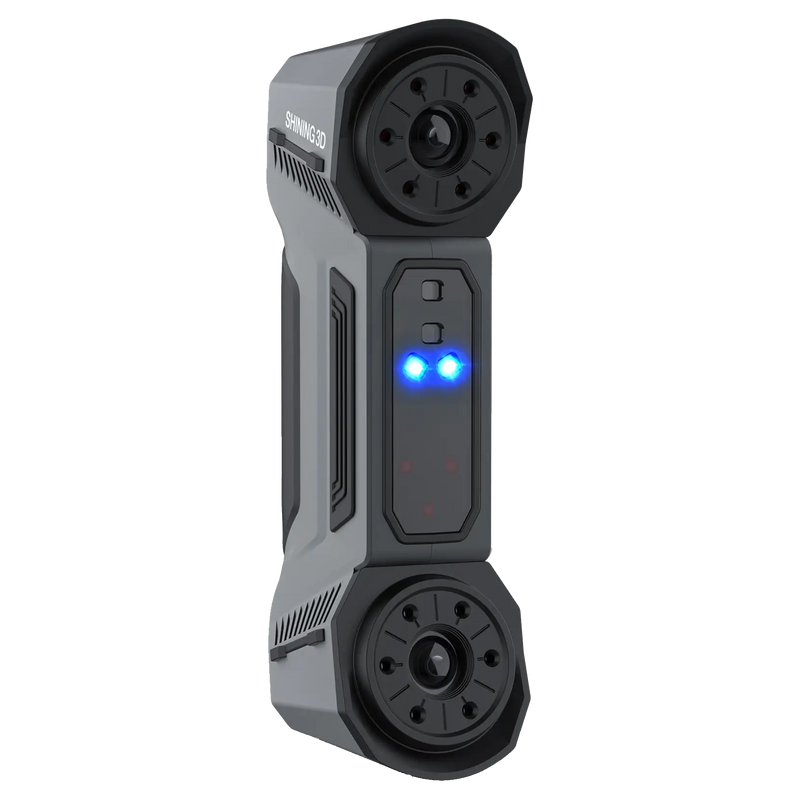

Compact and Powerful Metrology
Dual Blue Line + Infrared Light
The FreeScan Combo Plus combines blue line and infrared scanning technology at the same time ensuring accurate results withing various scanning scenarios. Improving both the speed of capture quality results.
Infrared Light Scan Mode
Use the Infrared light mode for quick scans with rapid capture without markers

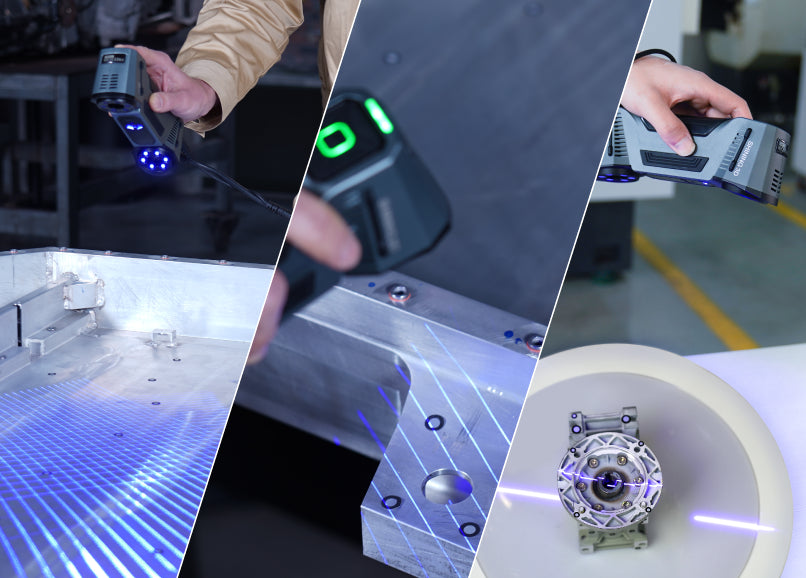

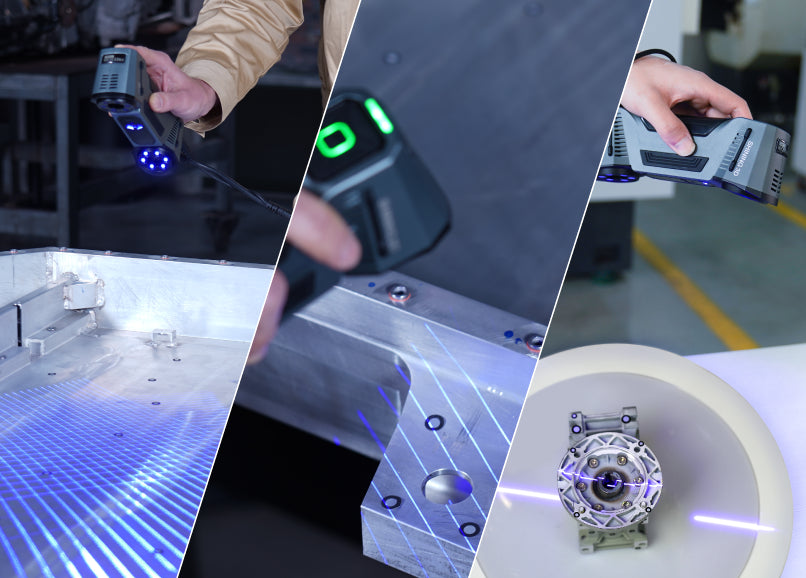

Three Blue Laser Line Laser Modes
- Multiple-line mode with 50 crossed laser lines for overall scans.
- Fine scanning mode with 7 parallel laser lines to acquire intricate details.
- Deep hole scanning mode with 1 single laser line.

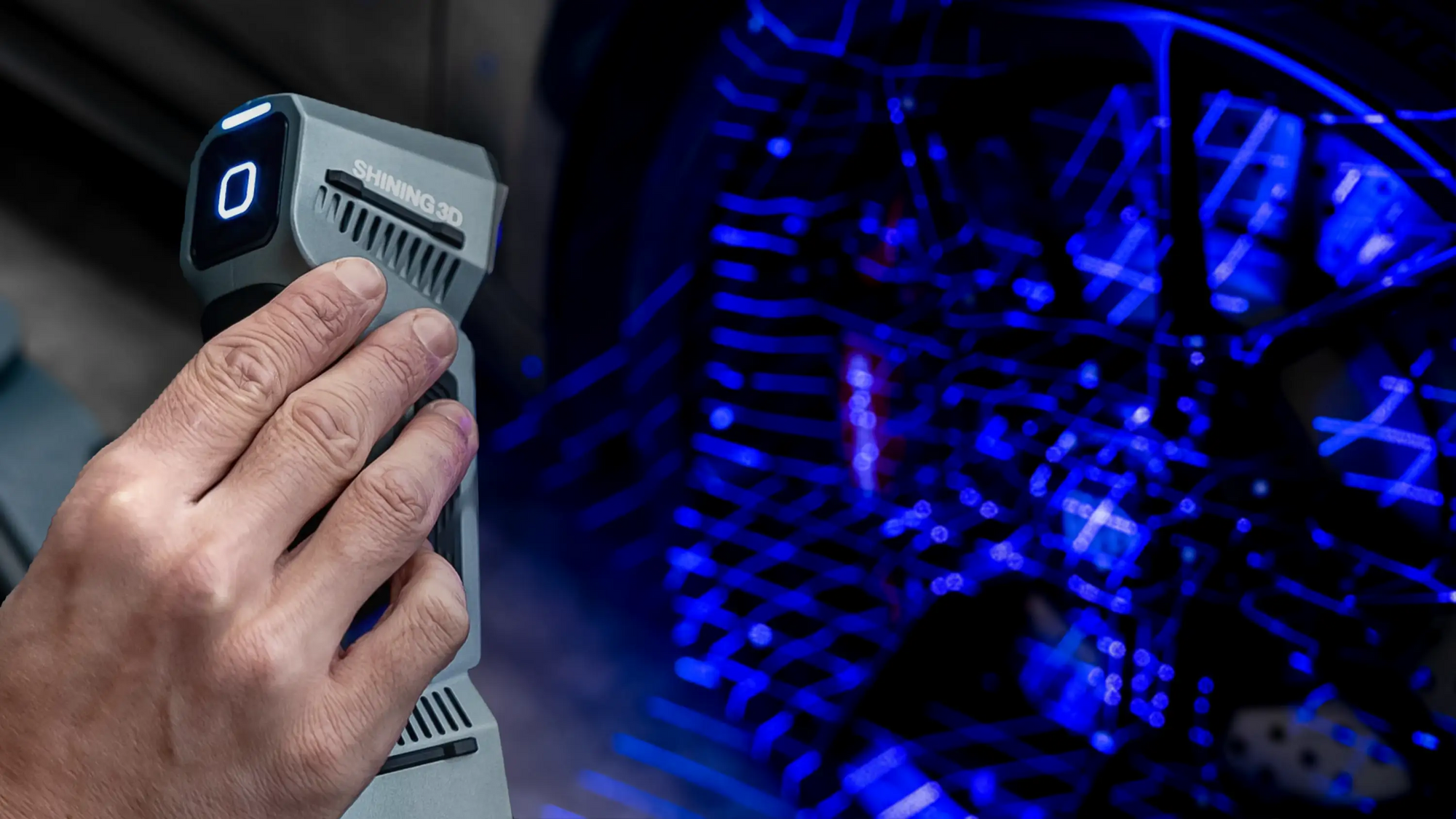

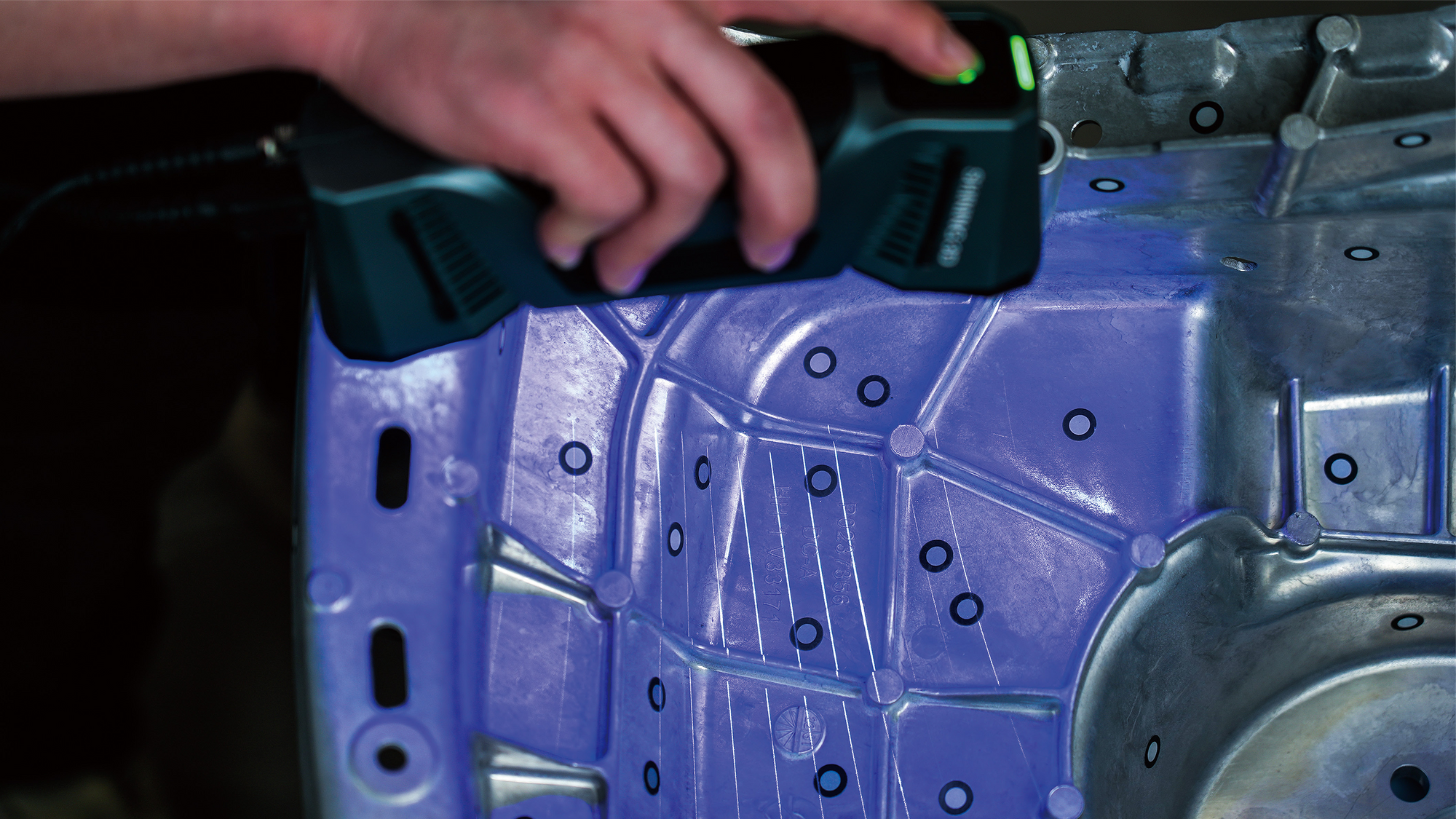

Compact & Ergonomic
The FreeScan Combo Series boasts an ergonomic, compact, and lightweight design that makes 3D scanning convenient and easy.
The optimised camera angle makes it more suitable for working in narrow and complex environments, allowing for fast data capture in seams.

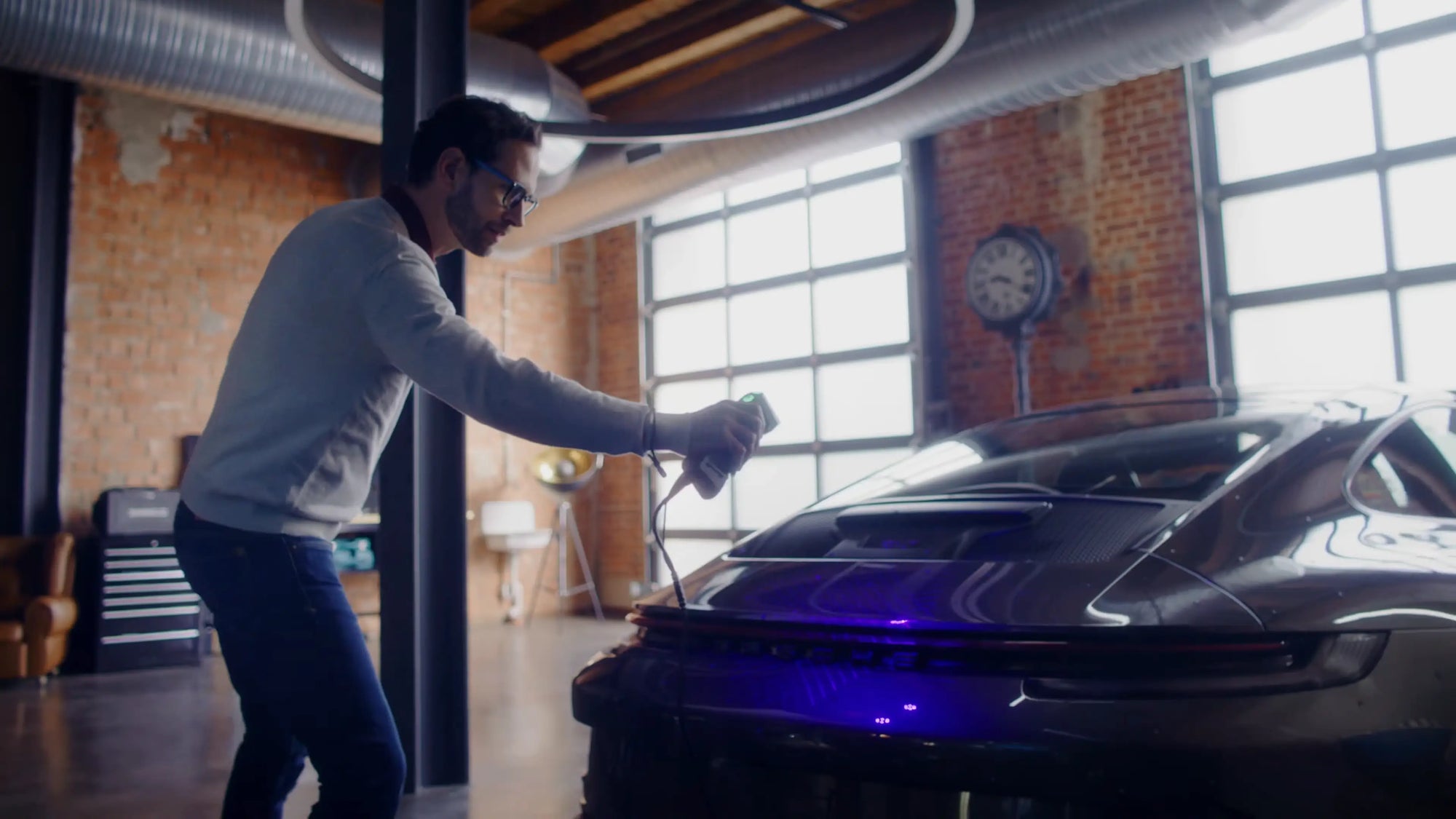

Why do Car Restoration Pros and Motorsport choose the FreeScan Combo Plus?
The biggest bottleneck in automotive modification is getting accurate data from difficult surfaces quickly. Traditional scanners struggle with black paint, carbon fibre, and chrome trim. The FreeScan Combo Plus eliminates these issues.
1. Scan Black & Shiny Surfaces Spray Free.

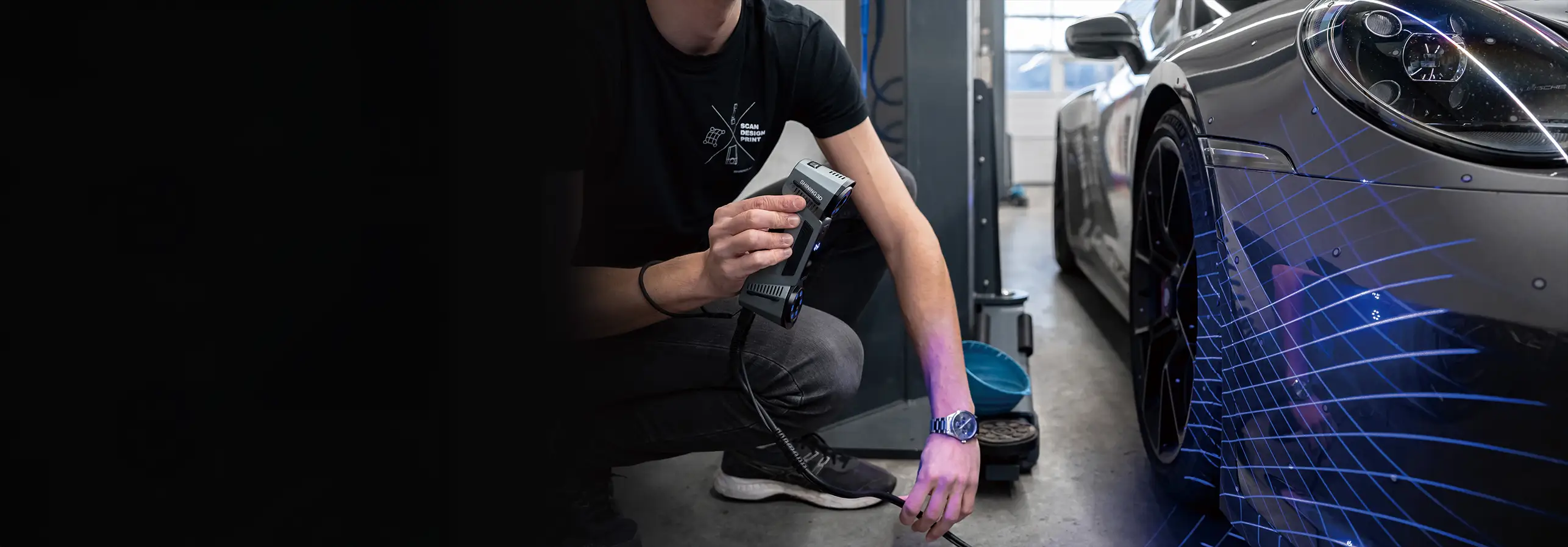

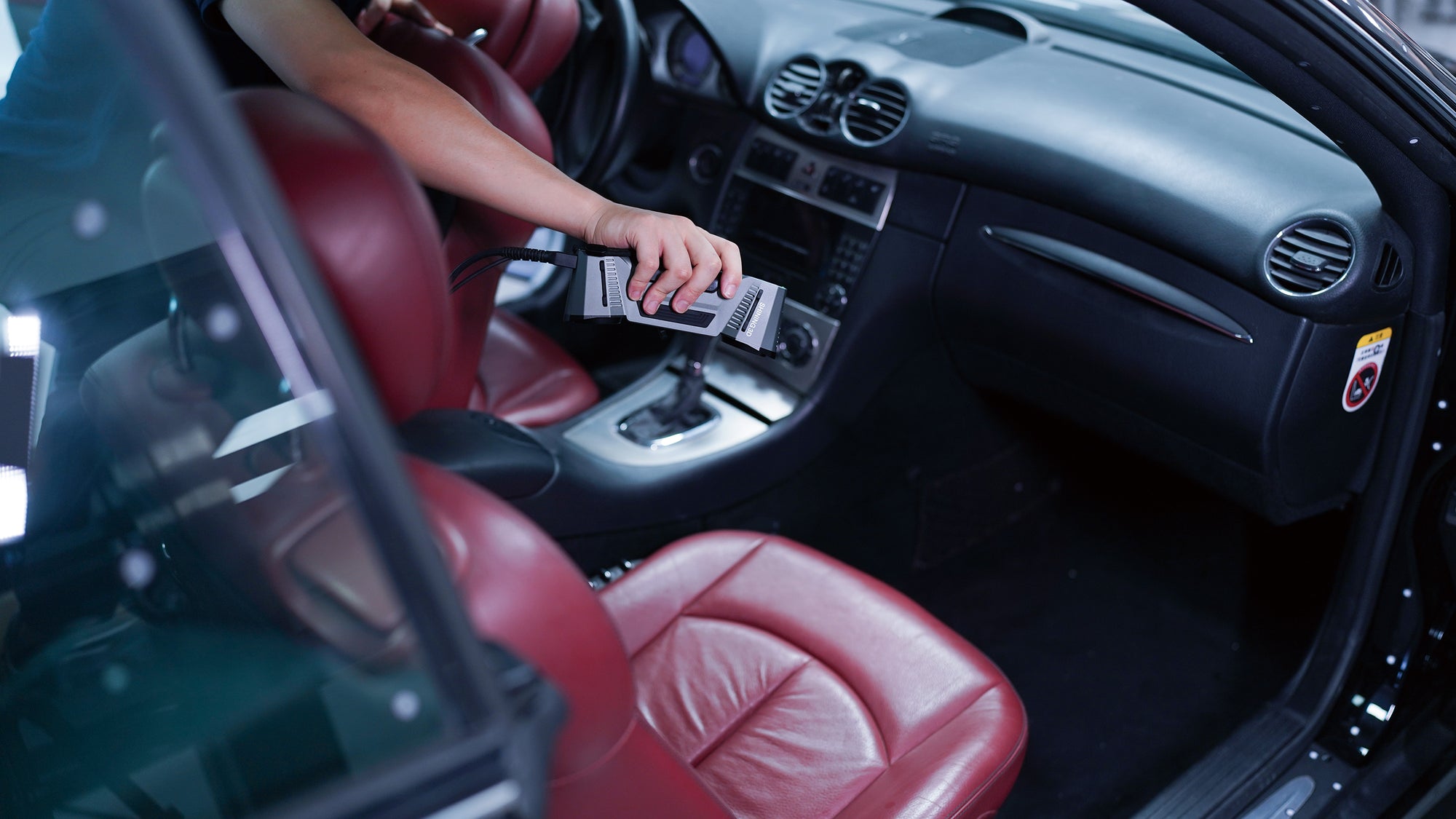

Forget the vanishing spray. The Combo Plus utilises a massive array of 50 blue laser lines (almost double the standard model) combined with an infrared mode to capture glossy automotive finishes and black plastic trim directly.Real-world application: Scan a dashboard, leather interior, or a gloss-black bumper without spending hours cleaning up scanning powder afterwards.

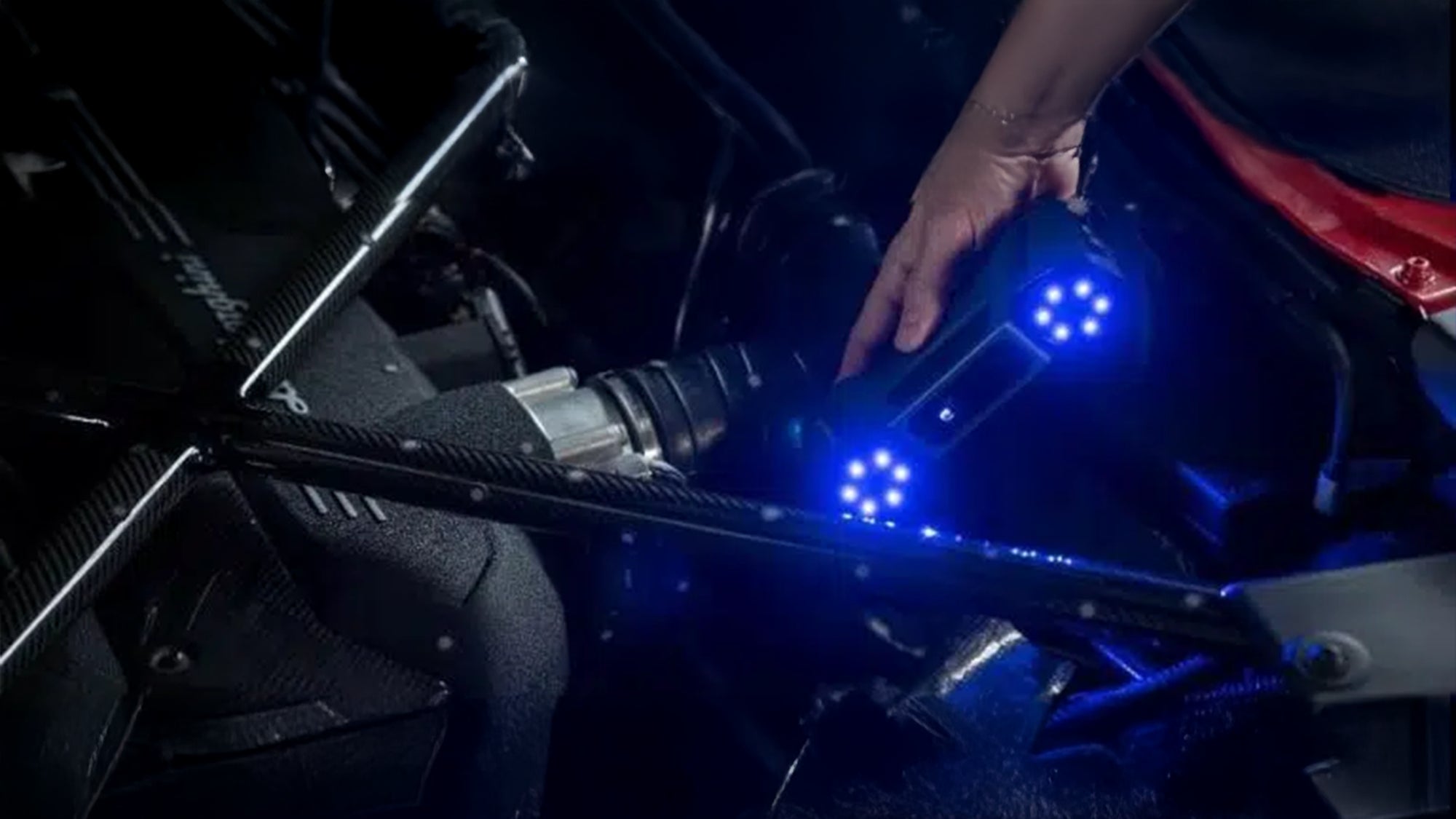

2. Engine Bays & Tight Spaces
With a compact footprint (193mm x 63mm) and weighing just 620g, this unit fits where bulky structured-light scanners can't.

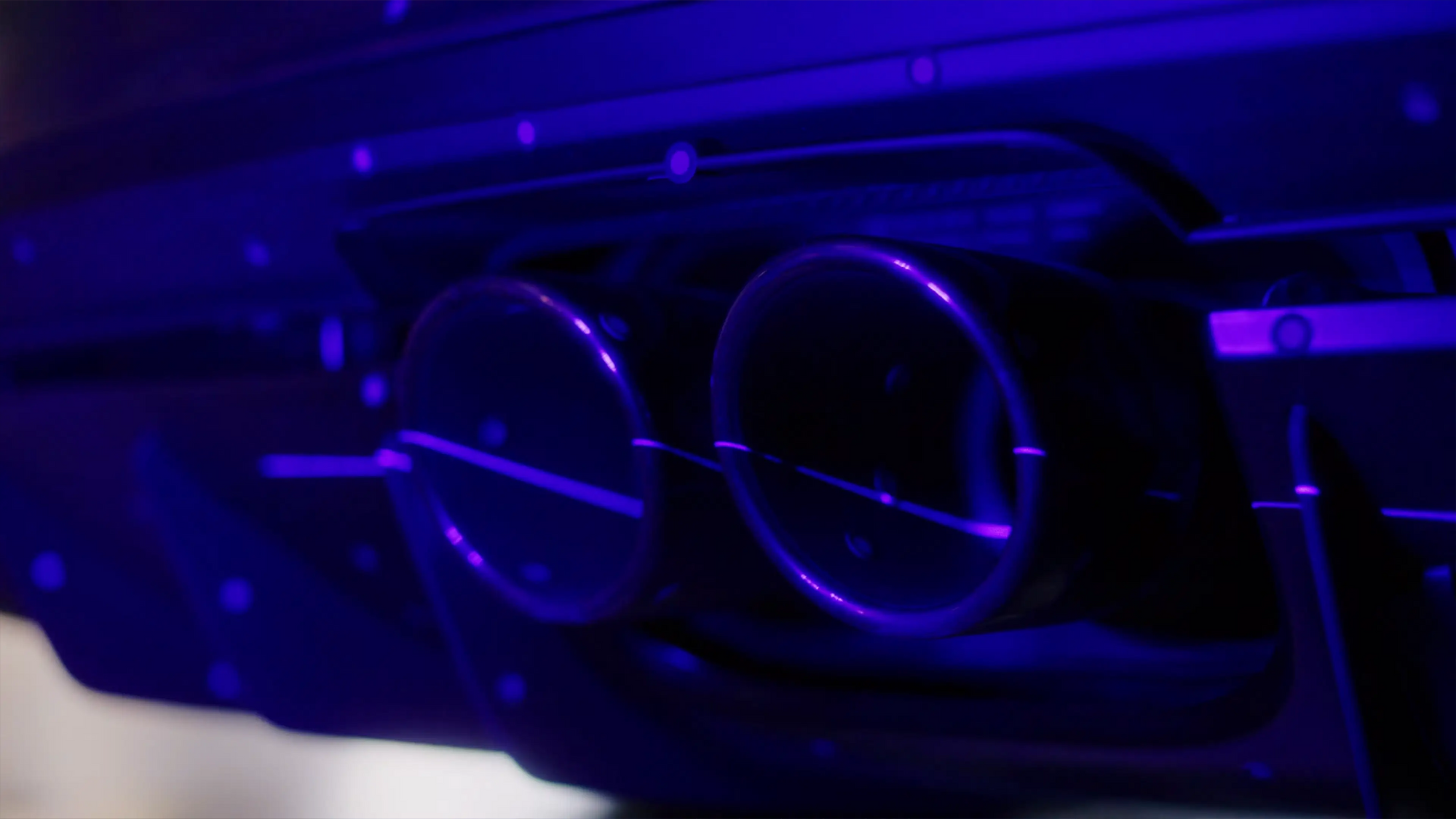

3. Deep Hole Scanning
Seeing is believing
Laser scanners require a pair of cameras to see the same common area of a part to be able to triangulate and capture data.
The FreeScan Combo's compact design ensures the distance between cameras in close together, enabling it to see deeper into holes and capture more area that other scanner will never see.
The single-line laser mode is specifically engineered to capture deep pockets—perfect for bolt holes on cylinder heads or water jackets on engine blocks.
3. Reliable Accuracy

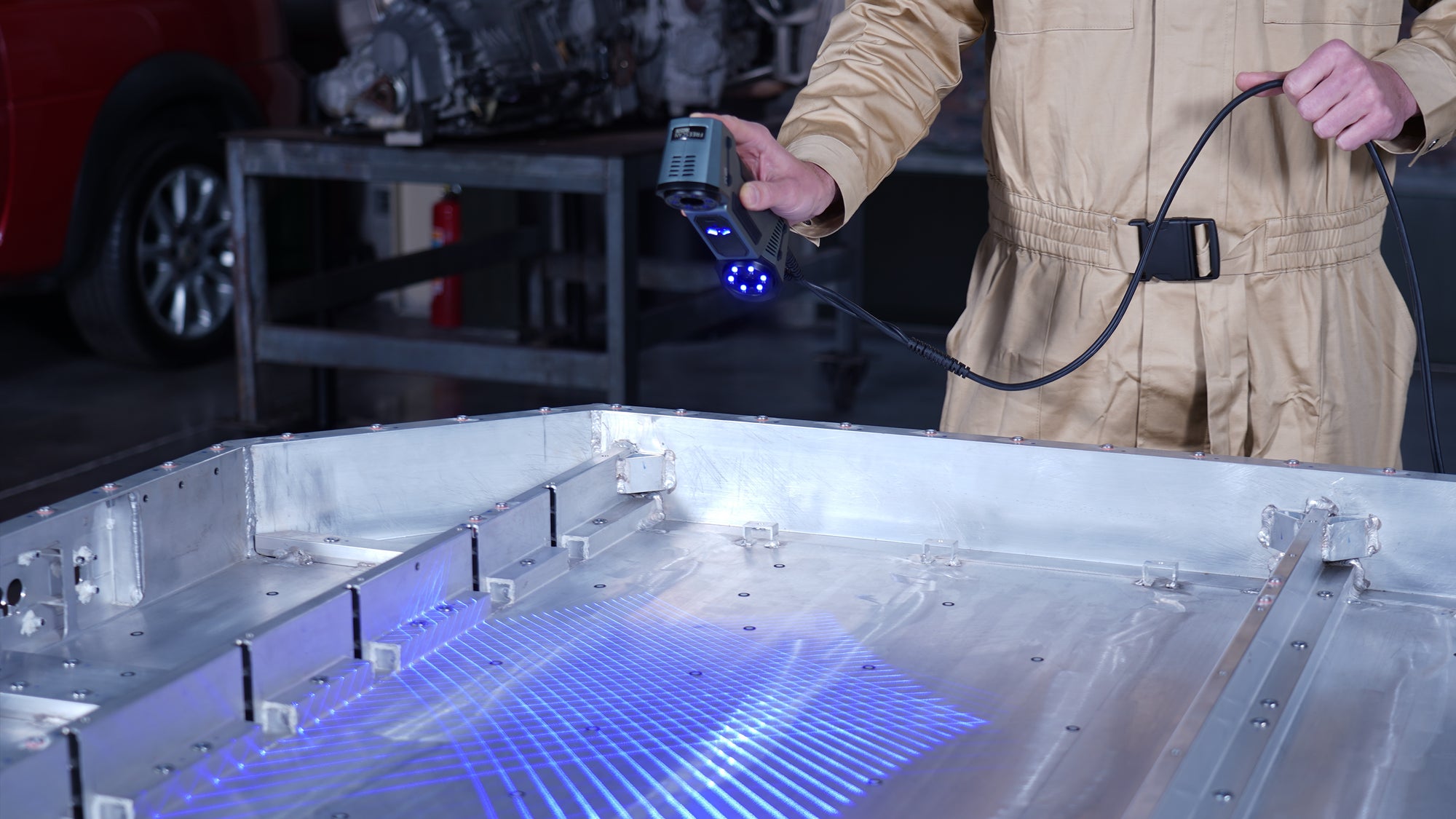

When machining billet parts or producing performance parts, "close enough" doesn't cut it.
The Spec: Achieves 0.02mm accuracy with a volumetric accuracy of 0.02 + 0.033 mm/m.
The Result: Your scanned data matches the physical part perfectly, ensuring your CNC-machined moulds or 3D printed jigs fit the first time.

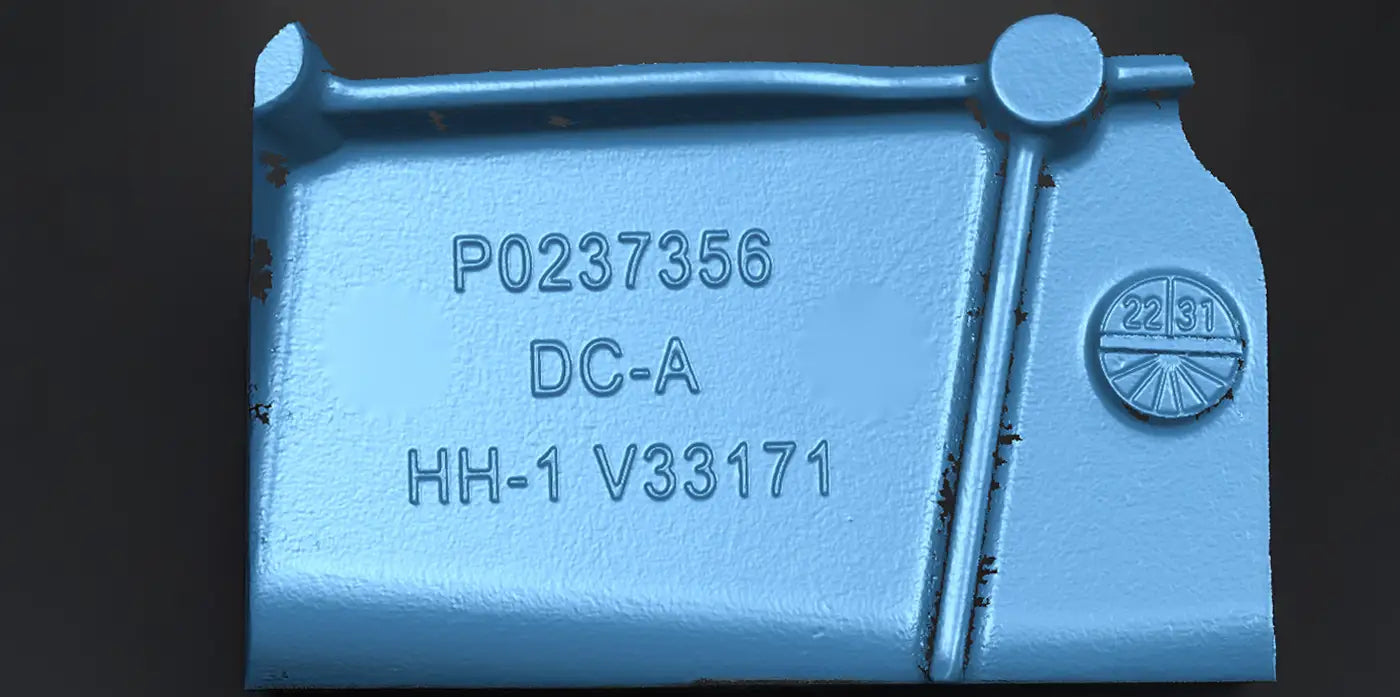

Scan Data

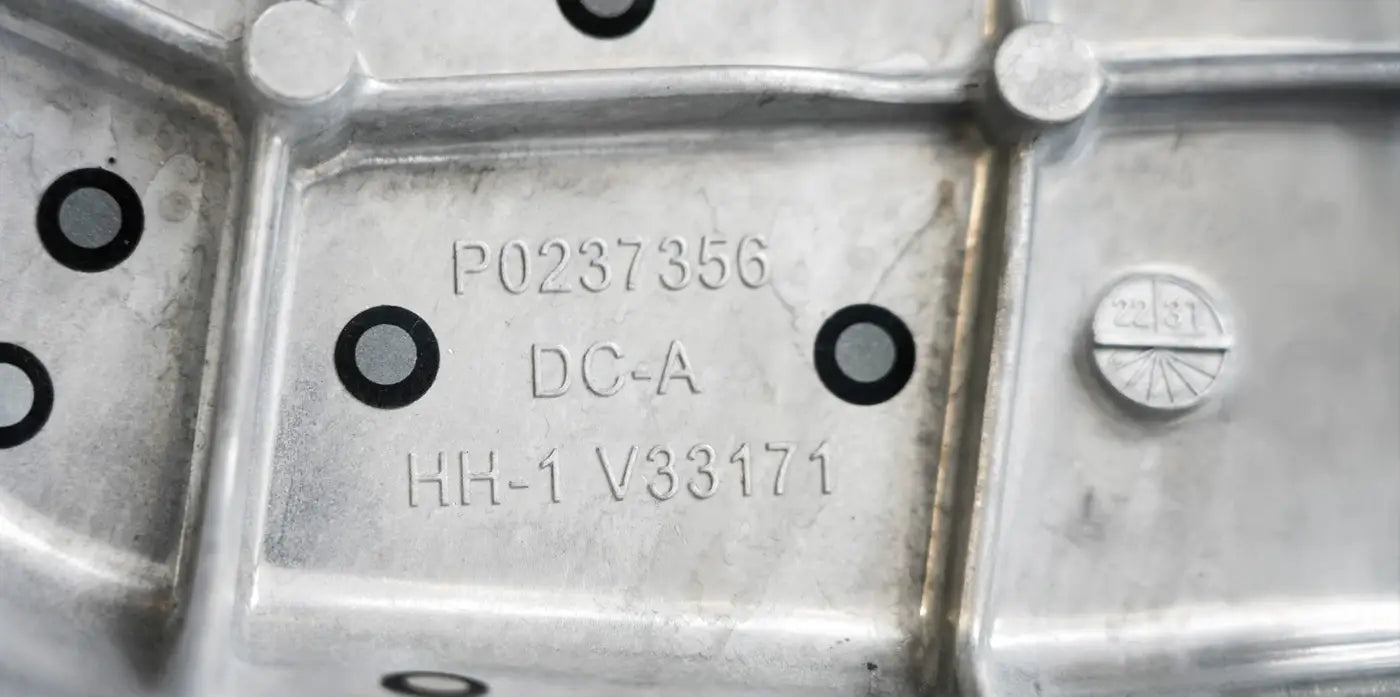

Actual Part

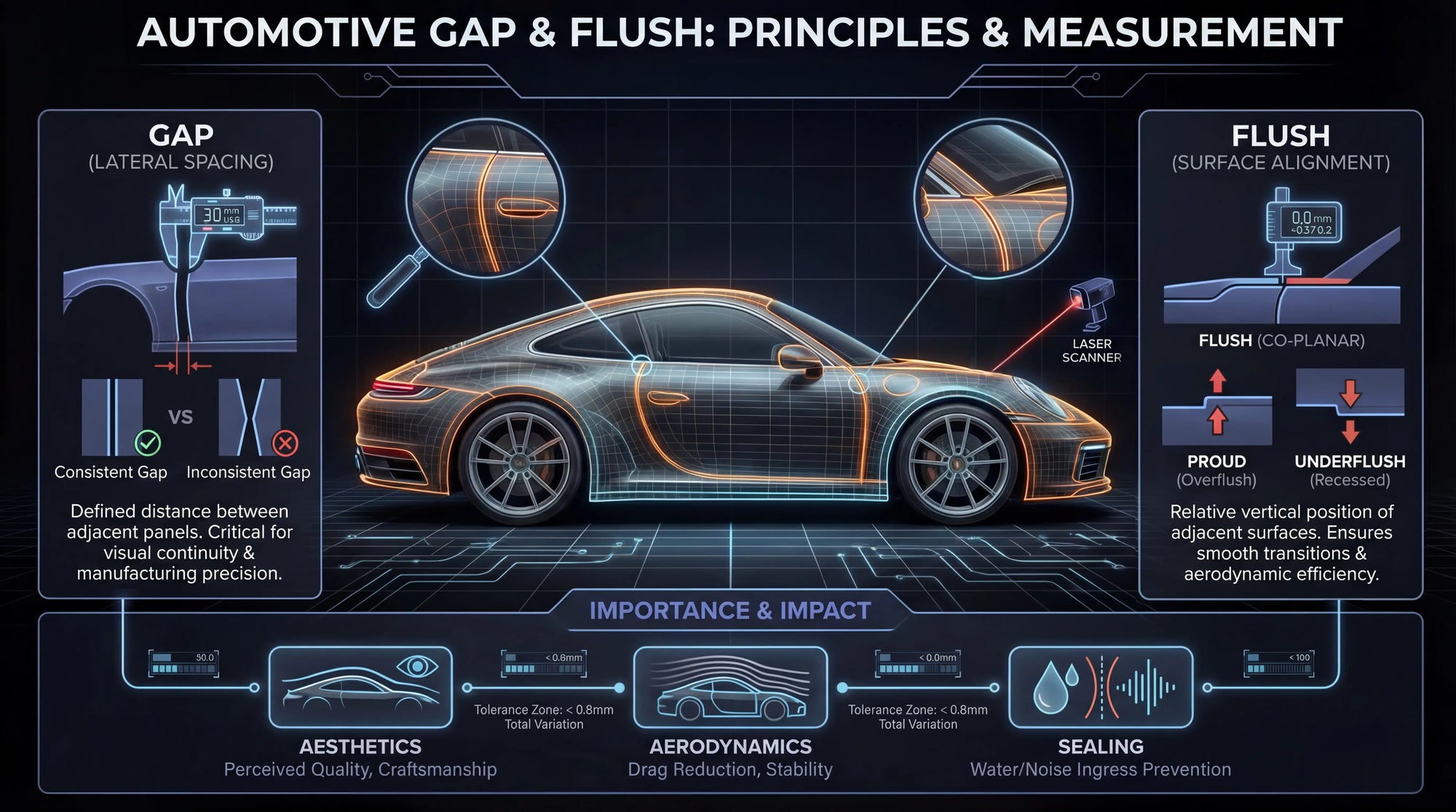

5. Gap & Flush
Gap in automotive design refers to the distance between two parts to prevent interference or meet functional requirements.
Flush aligns parts along the same plane for smooth edges and uniformity, crucial for precise fitment in vehicle manufacturing.
Both gap and flush are critical for achieving precise fitment and high-quality assembly in vehicle manufacturing.
When it comes to scan quality the FreeScan Combo Plus stands out in a class of its own.
Case Studies
How SHINING 3D Supports Vulcan Alpha in Engineering Motorsport Performance at the Nürburgring
This case study explores how Vulcan Alpha leverages SHINING 3D technology to accelerate product development, ensure OEM-level accuracy, and enhance complex motorsport engineering workflows.

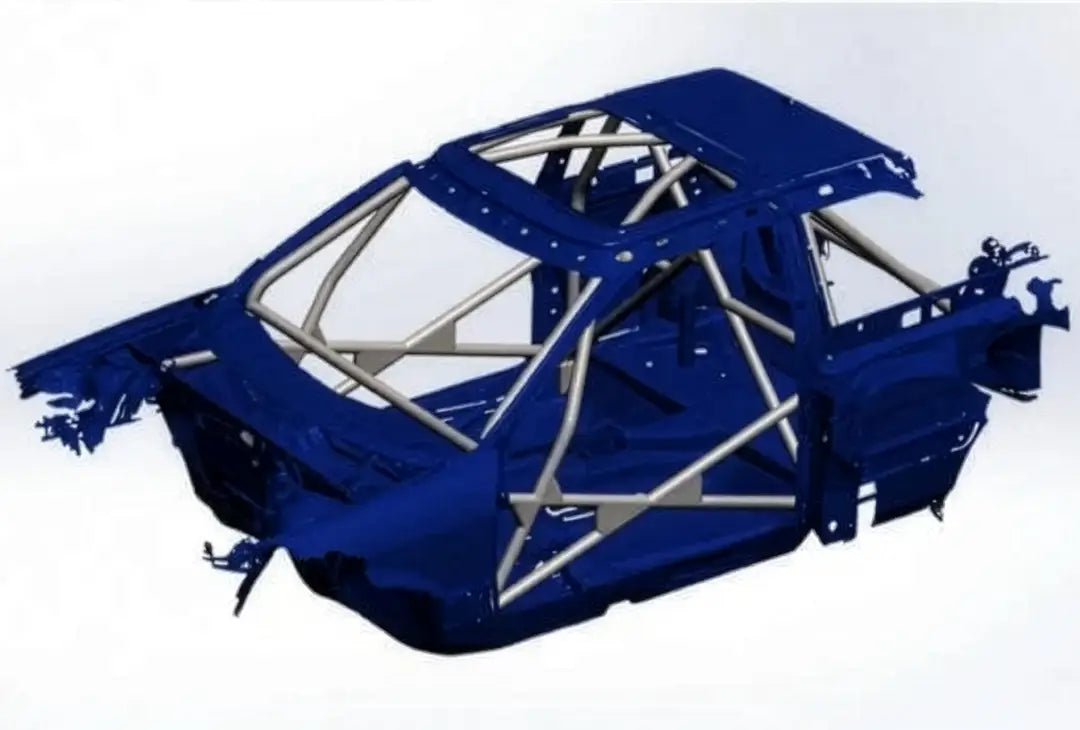

Application and Advantages of 3D Scanning in Roll Cage Design
Facing rising demand and stricter standards, DriftGarage, an FIA-certified roll cage producer since 2017, partnered with Modception to streamline production. Using FreeScan Combo Series and CAD design, the process enhanced precision, cut labor hours, and delivered superior roll cages.

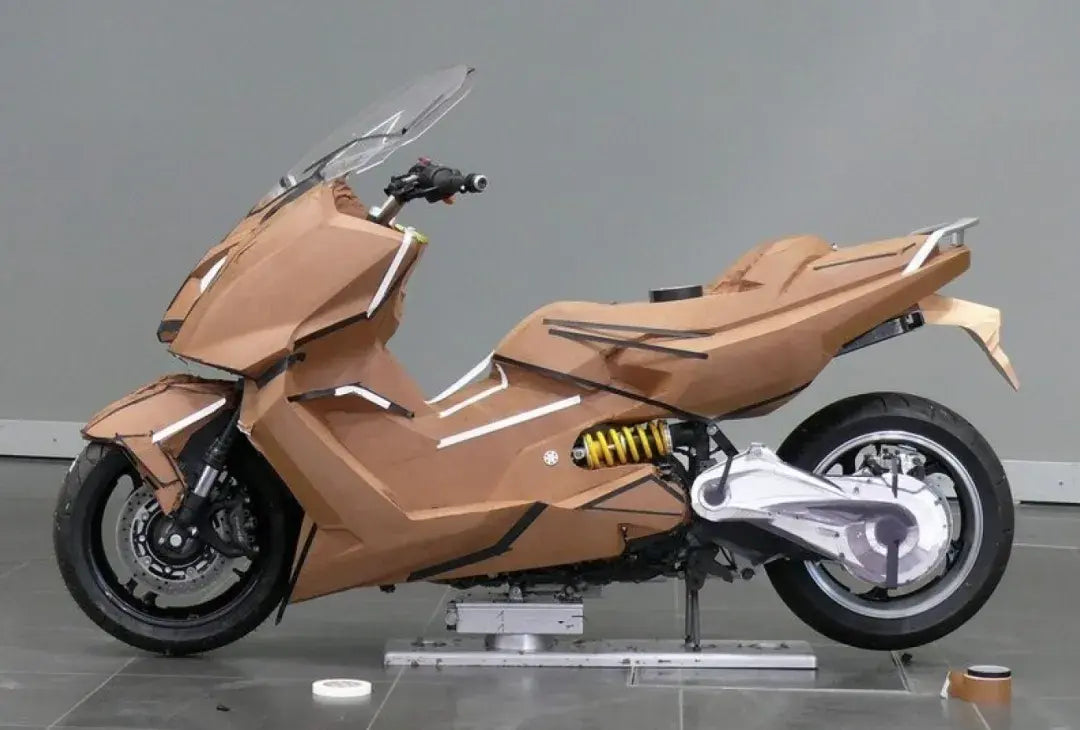

FreeScan Combo Helps Reduce Costs and Improve Efficiency in Motorcycle R&D and Inspection
This article explores how Andesmotos’ R&D department leverages high-accuracy 3D scanning technology to enhance the efficiency of motorcycle design, development, and inspection processes.

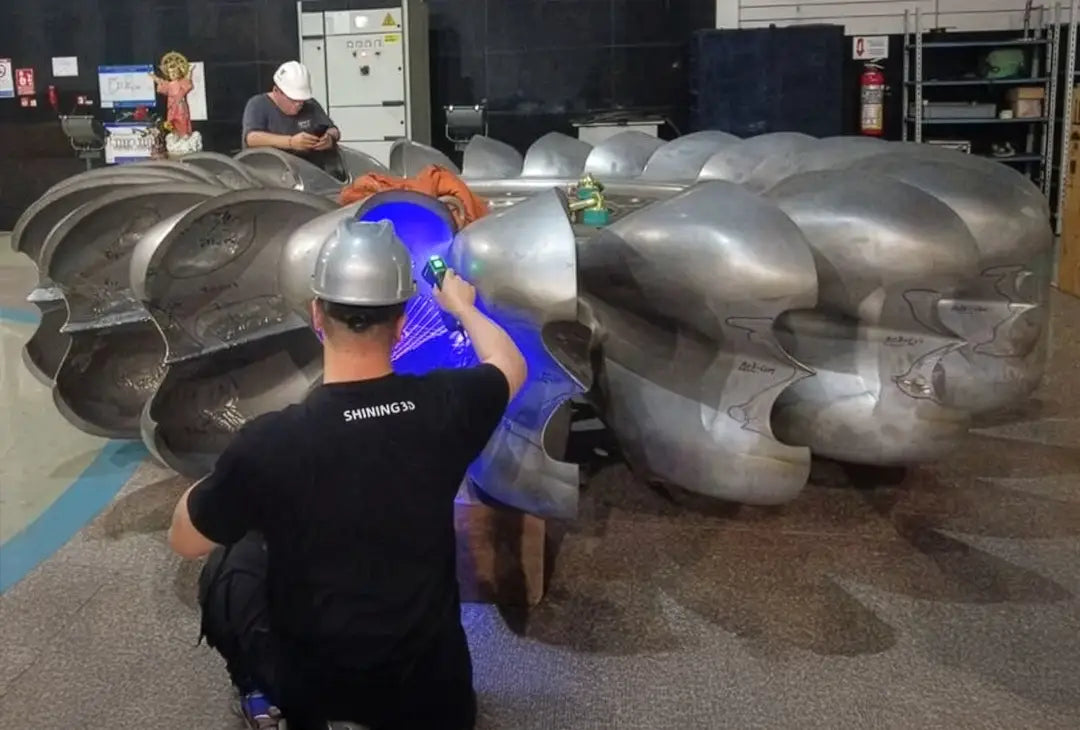

How FreeScan Combo 3D Scanner Improves Hydro Turbine Inspection and Repair Efficiency
Since its construction, the Ecuadorian hydropower plant Central Coca Codo Sinclair has been looking for an efficient and cost-effective solution to streamline the inspection and repair of hydro turbine. Recently, they began experimenting with the SHINING 3D’s FreeScan Combo 3D scanner.

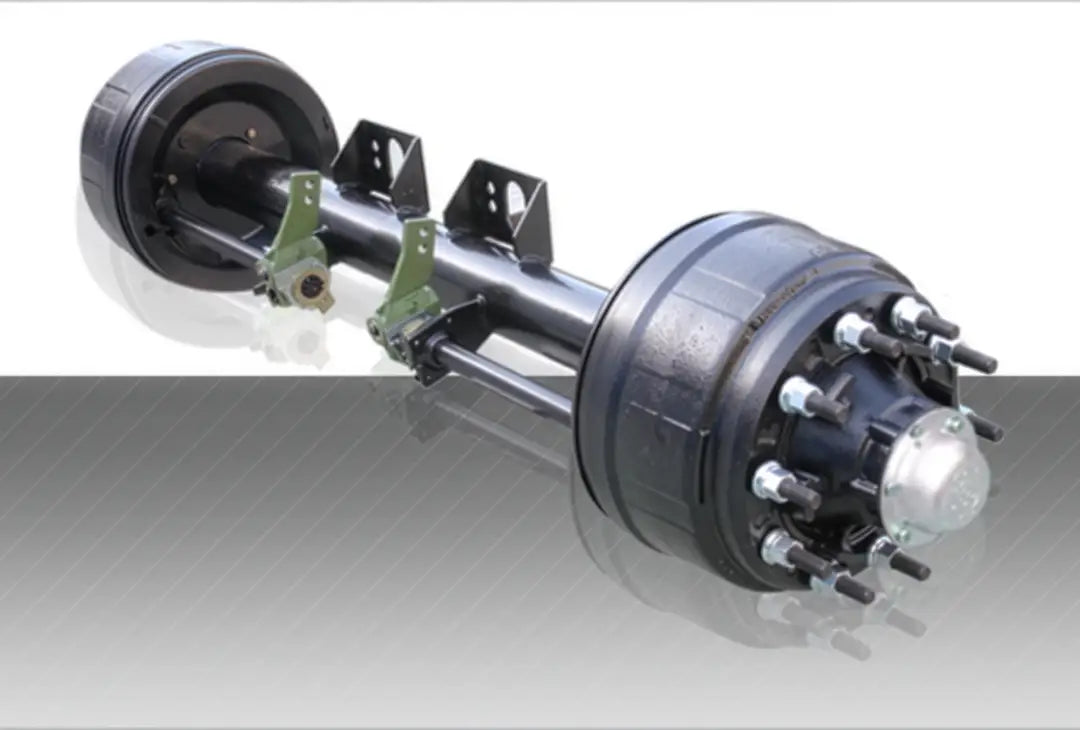

How 3D Scanner Assists Axle Processing Machine Measurement and Ensures Straightness
Traditionally, technicians manually check axle processing machines. This method was time-consuming and often inaccurate. Manual inspection also requires significant skill and experience, making it a challenging task. The SHINING 3D FreeScan Combo offers a modern solution to the challenges of manual measurement.

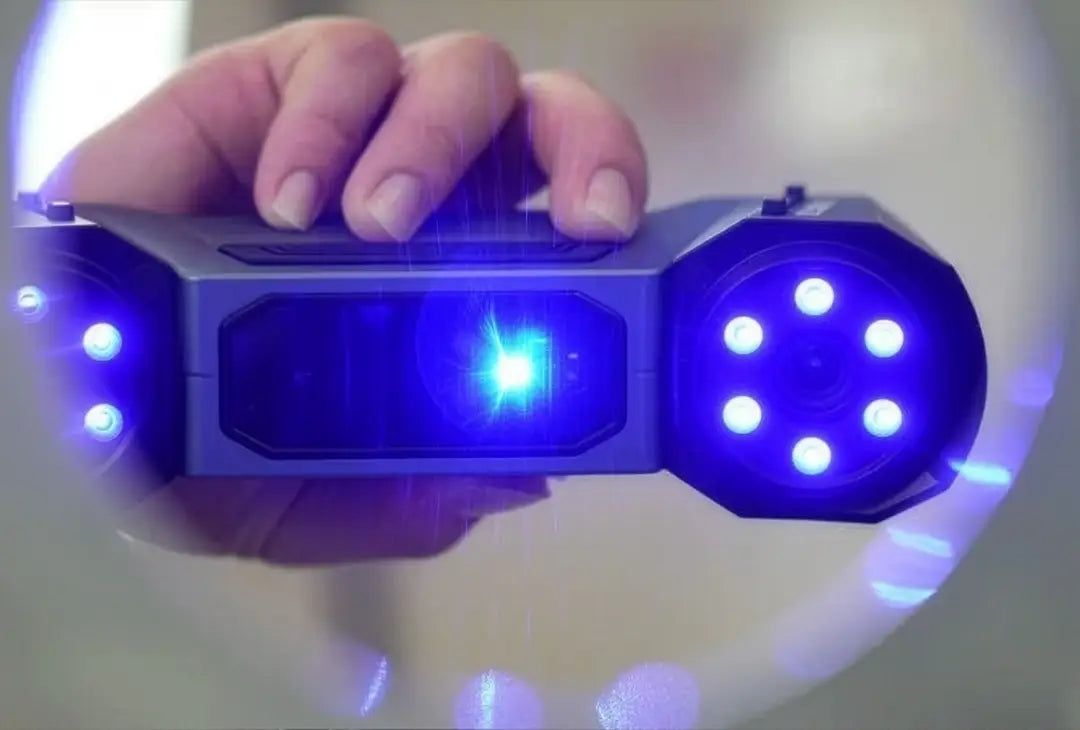

Challenges in Scanning Narrow Cavities in Automotive Molds
In this case, the automotive molds to be scanned contain narrow cavities with limited accessibility. The inner cavity’s small opening, measuring approximately 30 by 20cm, present a formidable scanning challenge. Moreover, numerous dead-end areas within the cavity further complicate the scanning process.

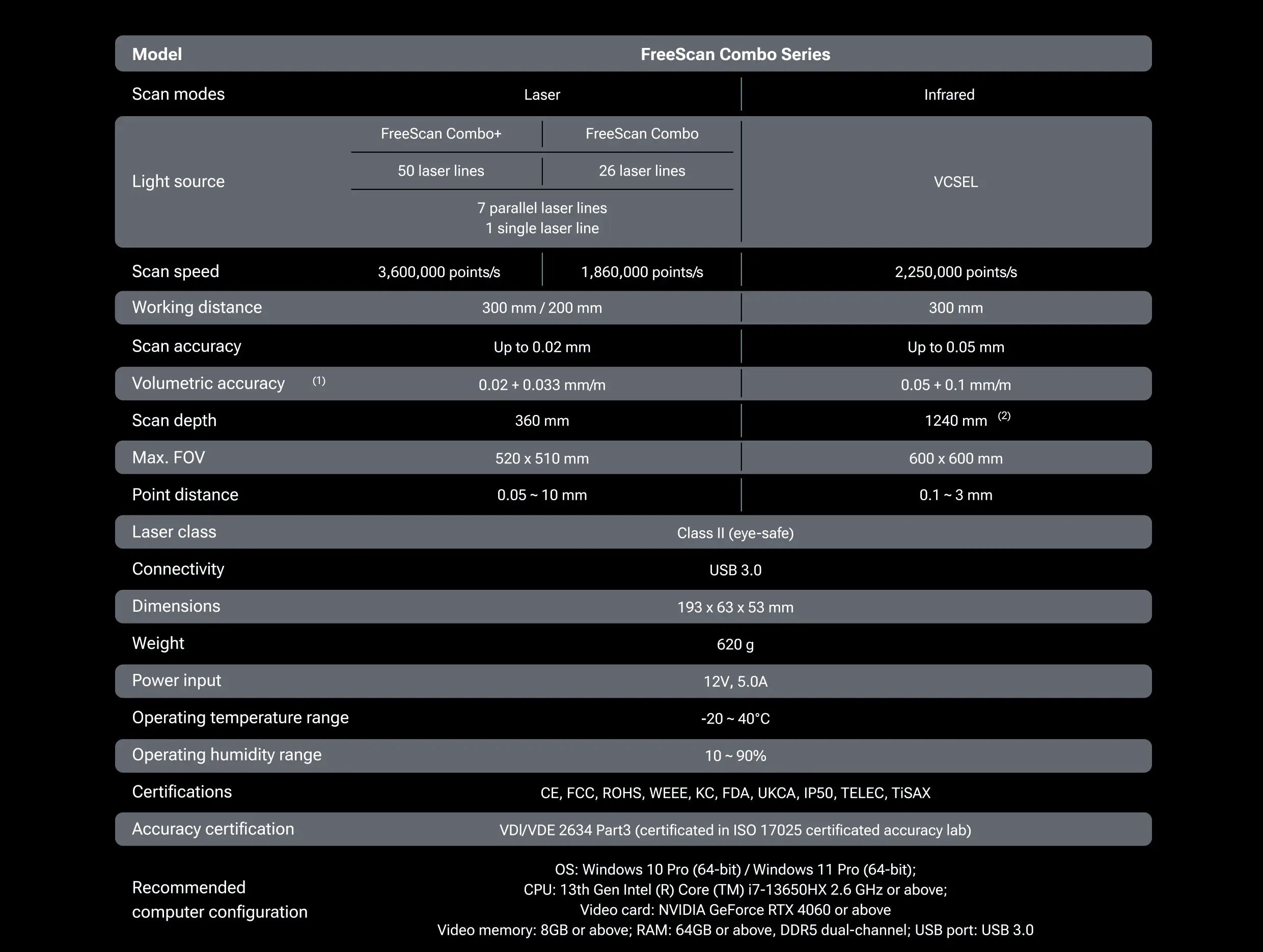

Technical Specifications
FAQ's
Not sure if this the right scanner for you?
Why should I purchase the FreeScan Combo Plus from 3D Printer Superstore?
Why should I purchase the FreeScan Combo Plus from 3D Printer Superstore?
When you invest in metrology-grade equipment, you need a partner, not just a vendor. 3D Printer Superstore is staffed by a dedicated team of Industrial Designers and Engineers who use this technology daily. We can provide deep technical consultation to ensure the equipment fits your specific engineering or inspection workflow, backed by a team that understands the practical realities of high-end 3D scanning.
Do you offer training and onboarding for this scanner?
Do you offer training and onboarding for this scanner?
Yes. We know that maximizing the ROI on the FreeScan Combo Plus requires proper technique. We offer expert training resources and advice to get your team operational quickly. Because we use these scanners for our own reverse engineering projects, we can share practical "tips and tricks" and advanced workflow insights that go beyond standard manufacturer manuals.
Can you verify if this scanner is right for my specific industry application?
Can you verify if this scanner is right for my specific industry application?
Absolutely. We prefer to validate the solution before you commit. With our background in automotive, aerospace, medical, and manufacturing, we can advise if the FreeScan Combo Plus is the correct tool for your specific tolerances and surface types. Contact our team for a technical consultation—we focus on ensuring you have the right instrumentation for the job.
What makes the "Plus" version different from the standard FreeScan Combo?
What makes the "Plus" version different from the standard FreeScan Combo?
The FreeScan Combo Plus is the high-performance tier of the series. It features double the number of laser lines (50 lines vs 26), which significantly increases scanning speed and data acquisition rates. It creates a finer mesh density in less time, making it the superior choice for high-volume commercial environments where efficiency is critical.
Can the FreeScan Combo Plus scan black, shiny, or metallic surfaces?
Can the FreeScan Combo Plus scan black, shiny, or metallic surfaces?
Yes. This is a key advantage of the FreeScan series. Unlike structured light scanners that often struggle with dark or reflective surfaces, the Combo Plus utilizes Blue Laser technology. This allows it to scan black, shiny, and metallic parts (such as machined engine components or carbon fibre) directly, often eliminating the need for scanning spray.
What does Metrology-Grade mean? How accurate is the scanned data?
What does Metrology-Grade mean? How accurate is the scanned data?
The FreeScan Combo Plus offers an accuracy within its field of view of +-0.02mm. This is considered Metrology-Grade. It has a volumetric accuracy of 0.02 + 0.033 mm/m. This makes it suitable for rigorous quality control, inspection reports, and precision reverse engineering where tight tolerances are mandatory.
What is the "Deep Hole" scanning feature?
What is the "Deep Hole" scanning feature?
Scanning deep pockets or drilled holes is notoriously difficult due to occlusion (shadows). The FreeScan Combo Plus features a dedicated Single Line Mode optimised with a specific lens angle to peer into deep holes and capture data that standard scanning modes often miss.
Do I always need to place markers (dots) on the object?
Do I always need to place markers (dots) on the object?
Not always. The scanner features a hybrid mode.
- Laser Scanning: Generally requires markers for the highest metrology-grade accuracy.
- Infrared Mode (VCSEL): This mode allows for marker-less scanning for feature-rich objects. It is faster and ideal for rapid digitisation when reference targets are not feasible or necessary.
What software is included, and is there a subscription fee?
What software is included, and is there a subscription fee?
The scanner includes Shining 3D’s professional scanning software, featuring advanced tools for scanning, mesh editing, and data optimisation. Crucially, this is a perpetual licence—once you purchase the scanner, you own the software. There are no mandatory ongoing subscription fees required to operate your equipment.
Can I export data to SolidWorks, Fusion 360, or Rhino?
Can I export data to SolidWorks, Fusion 360, or Rhino?
Yes. The software exports standard industry formats including .STL, .OBJ, .PLY, and .ASC. These files are compatible with virtually all CAD and 3D modelling packages. For converting the scan mesh into a parametric CAD model (reverse engineering), you may require bridge software (such as Geomagic Design X or ExModel or Quicksurface), which we also supply and support.

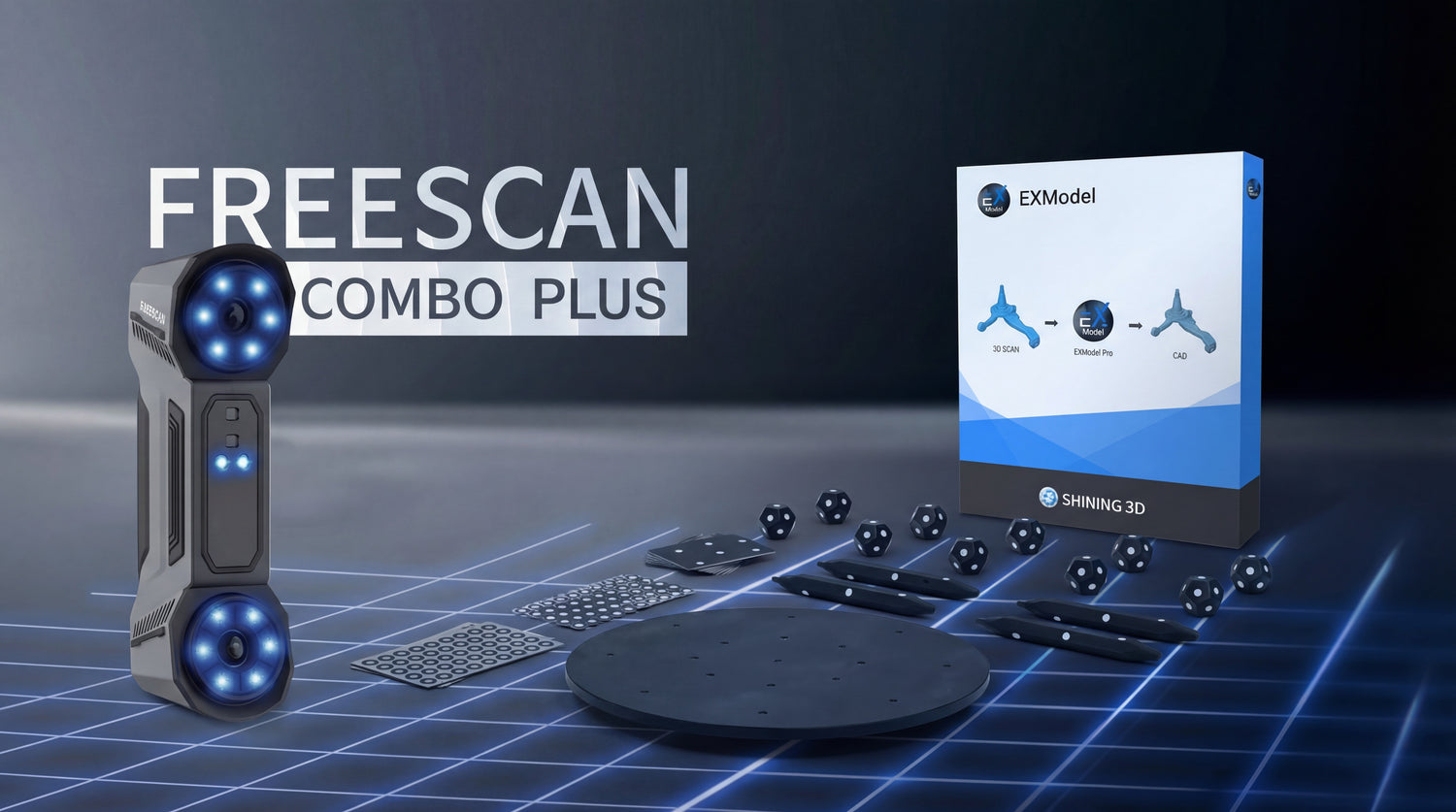

The FreeScan Combo Reverse Engineering Bundle
Get everything you need to go from Physical Part to CAD in one click.
