EinScan Libre

Name: EinScan Libre
Brand: Shining 3D
Price: 29749.00 AUD
Availability: InStock

Brand: Shining 3D

15% OffWinter SaleSave $14,196.00

$29,749.00 ~~$43,945.00~~

Including GST

Essential Spares & Accessories:

SHINING3D Inspect

$8,299.00

EXModel

$3,135.00

3D Scanning Accessories Pro Kit

$699.00

3mm Reflective Marker Dots (5280 pcs)

$209.00

Full On-Device Wireless Scanning & Processing

IR VCSEL Scanning at 2,700,000 points/s Scan Speed

38 IR Laser Line Scanning at 1,900,000 points/s Scan Speed

101 Blue Line Laser Scanning at 4,500,000 points/s Scan Speed

5 MP 3D Camera Resolution

48 MP Colour Camera Resolution

0.04 + 0.06mm Volumetric Accuracy

NVIDIA Jetson Orin NX, 8-core Arm Cortex A78AE, 100 TOPS; Internal hard drive: 1TB SSD

EinScan Libre

$29,749.00 ~~$43,945.00~~

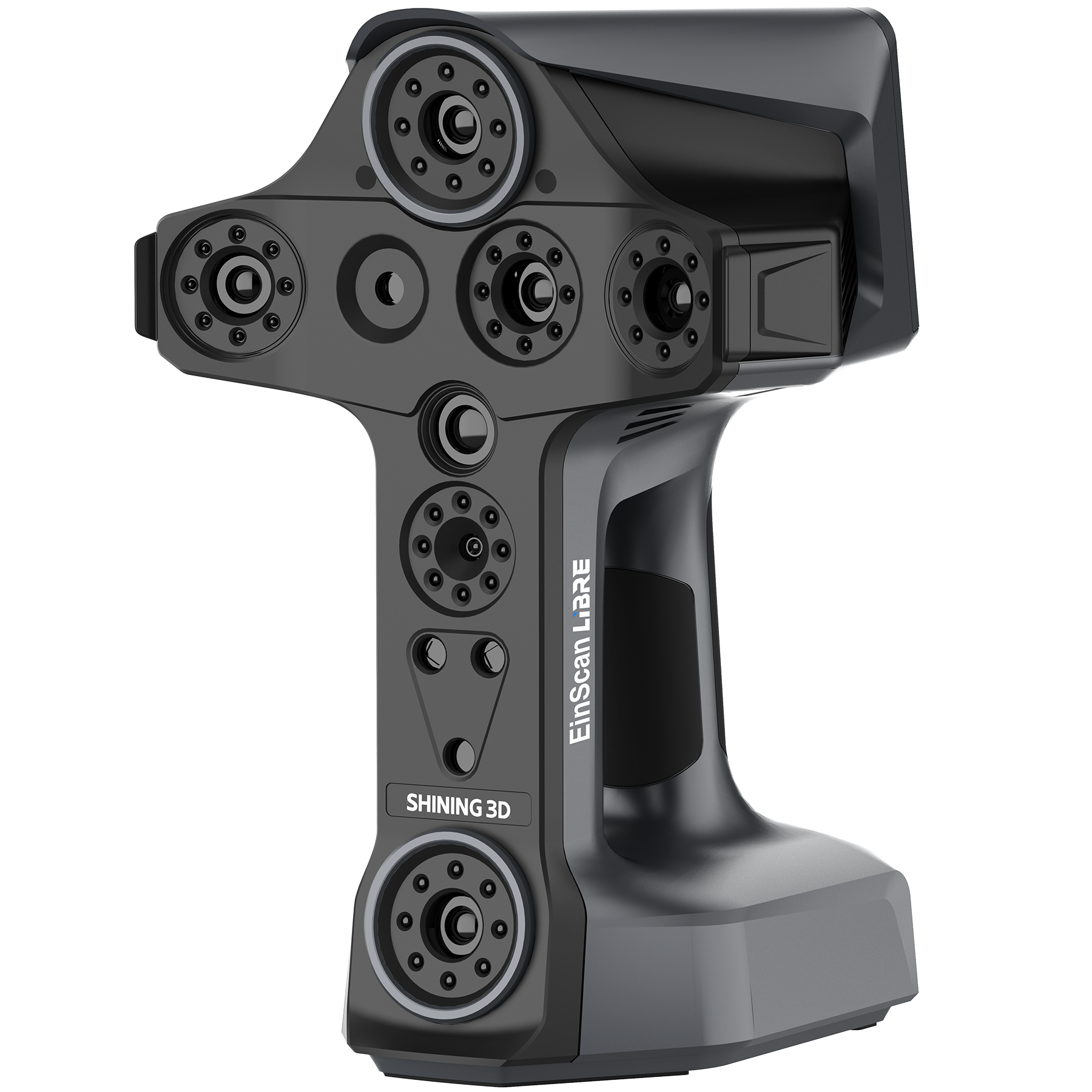

EinScan Libre - Wireless, Marker Frees, Full-Colour 3D Scanner

The EinScan Libre offers a fully wireless, standalone 3D scanning experience with its built-in screen and powerful NVIDIA processor. Providing the perfect balance of freedom and efficiency, it guarantees dependable results with versatile, user-friendly operation.

Equipped with 5 3D cameras of 5MP, a color camera of 48MP, delivering 3 multi light sources of blue laser lines, laser lines and infrared speckle, it adapts to a wide range of scenarios and materials, indoors or outdoors in direct sunlight.

EinScan Libre combines IR Speckle, IR Laser, and 101 Blue Laser line, utilizing three different light sources. It provides 3 scanning modes to suit large and small object scanning, and can adapt to different material surfaces in black or reflective. EinScan Libre also features a build-in 48 MP texture camera that can capture full-color data and generate vivid mesh.

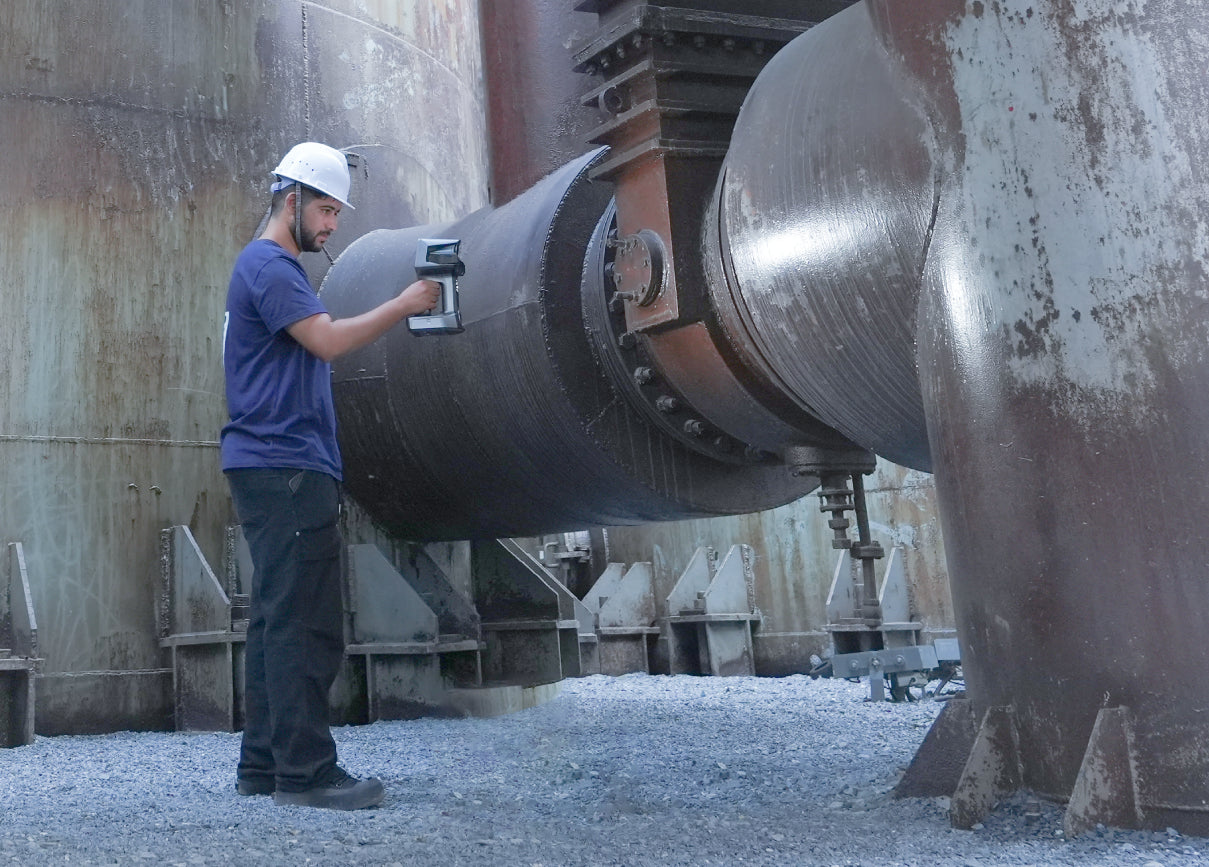

It is designed to accurately and efficiently scan medium to large-sized work pieces, providing a truly cable-free and computer-free 3D scanning experience, meeting high requirements for applications of digital archiving, reverse engineering, maintenance and repair in versatile industries like archaeology and heritage, CGI, forensic, architecture, manufacturing.

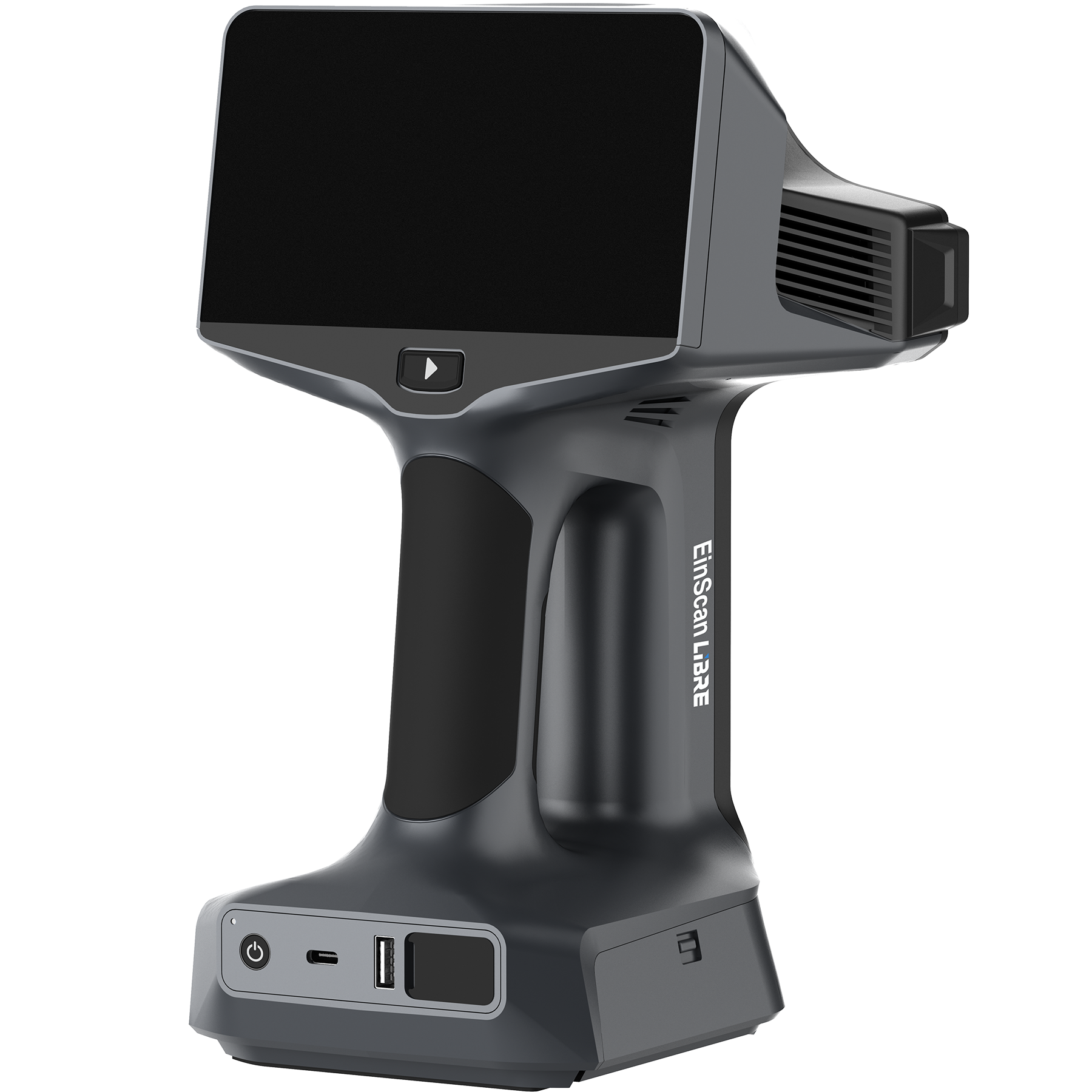

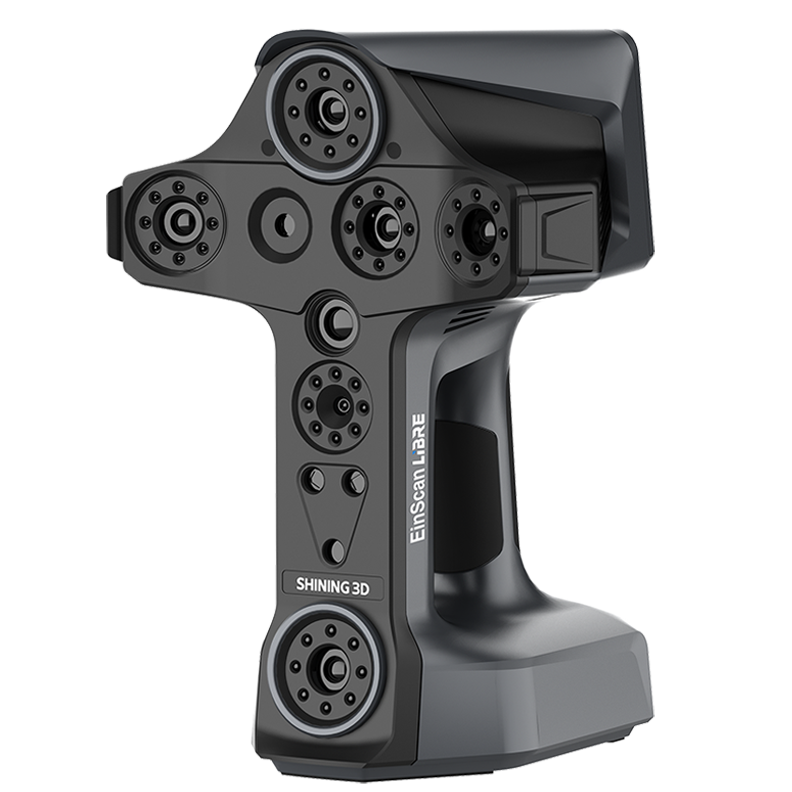

Shining 3D Einscan Libre Wireless 3d scanner with 5.5 inch OLED display

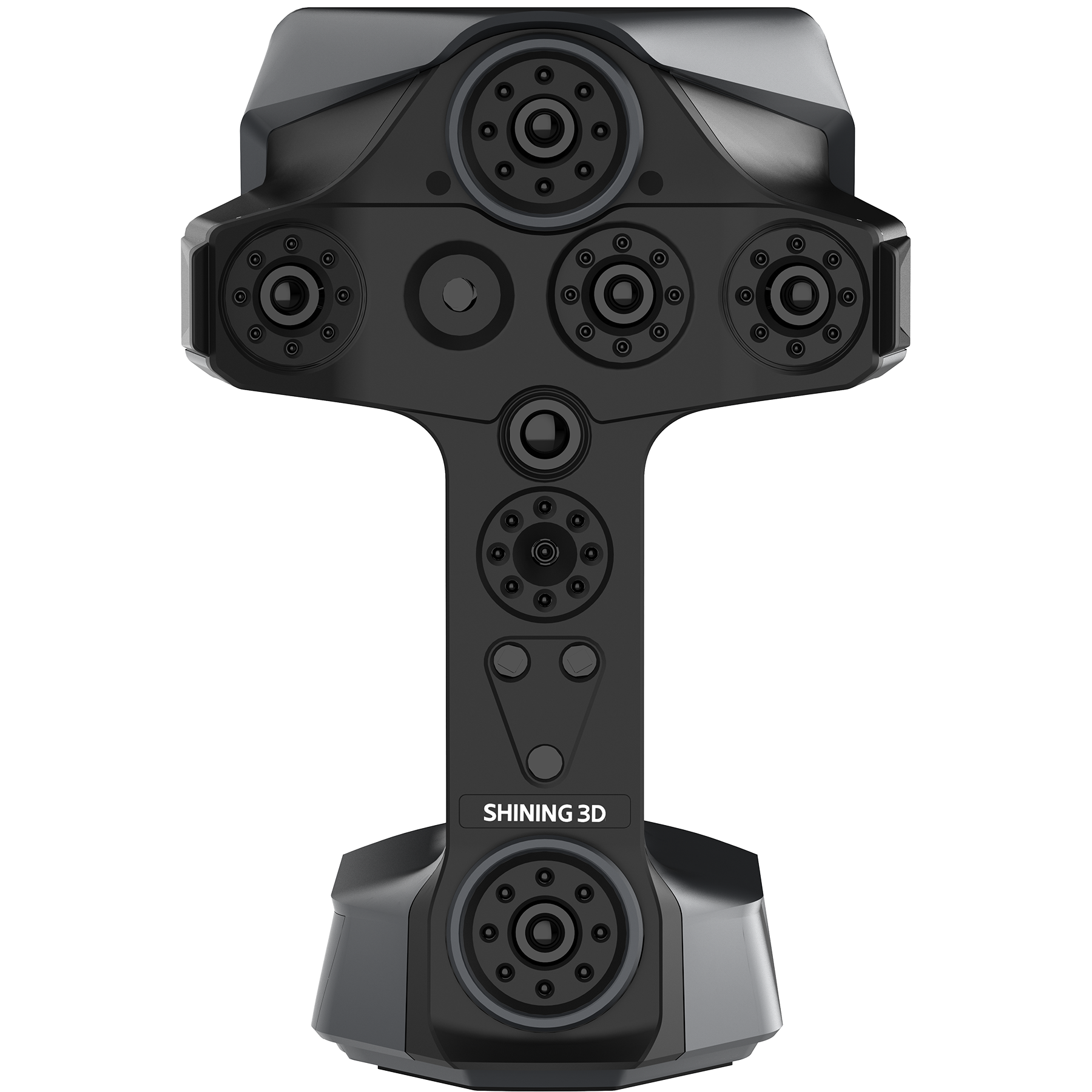

Shining 3D Einscan Libre Wireless 3d scanner IR scanner

Einscan Libre 3D Scanning applications include Archaeology, Heritage Preservation, Manufacturing, Energy, Forensics, Architecture, Engineering and constrauction, art and design and CGI

Shining 3D

All-in-one laser 3D scanner

Wireless 3D Scanning without a computer

5.5-inch OLED display: Capture, view, and manage your scans effortlessly with its user-friendly touchscreen UI.

Embedded computing system: Scan and process independently, with all functions built into the device—no laptop required.

Rechargeable batteries: No time for downtime? Just reload and keep scanning. Slide your batteries into the convenient charging dock and be ready to scan at all times.

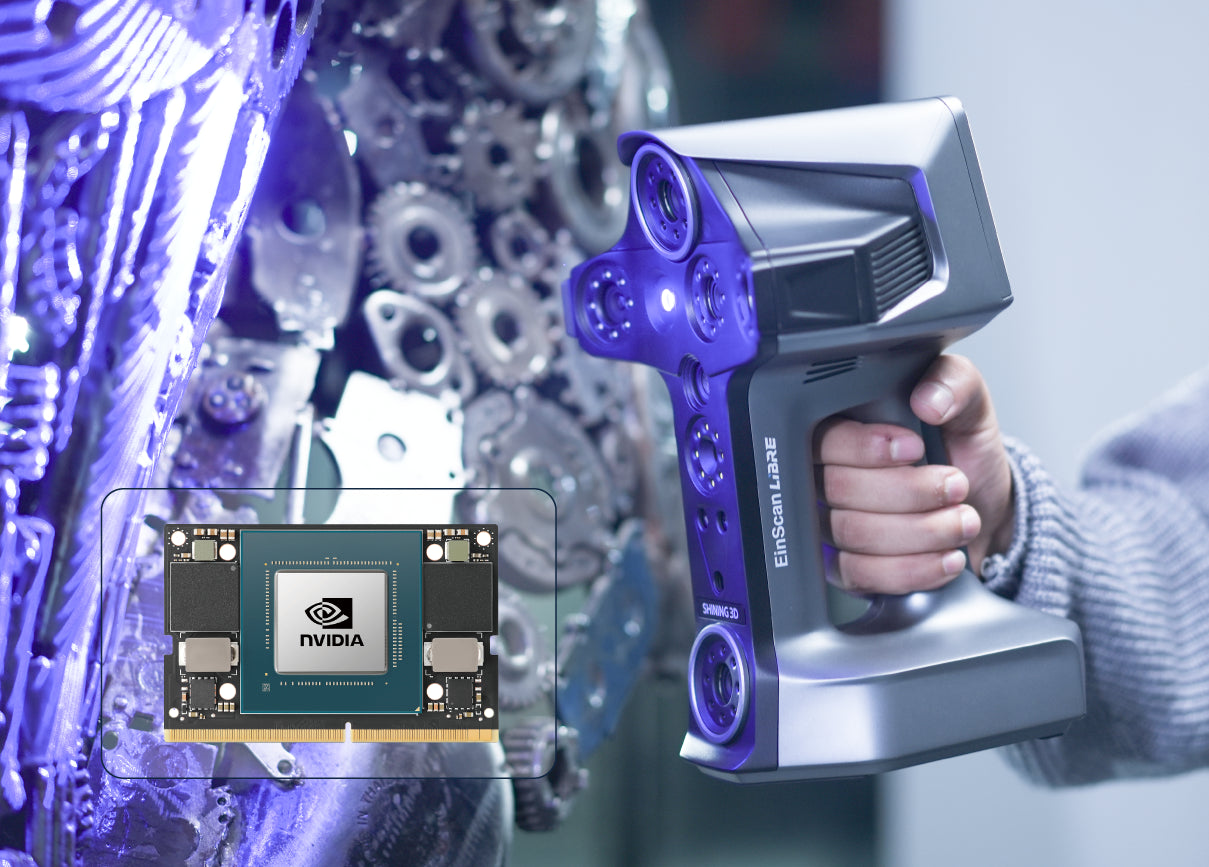

Brains Behind the Speed

Equipped with a high-performance processor and generous storage, the EinScan Libre provides wireless freedom without compromising computing speed.

Powerful NVIDIA processor: The integrated Jetson Orin NX 16GB, 8-core CPU and Ampere GPU with 1024 CUDA cores delivers fast data processing.

1TB SSD: Room to roam. With expansive storage, you
can scan freely without worrying about running out of space—whether high-res models or hefty projects.

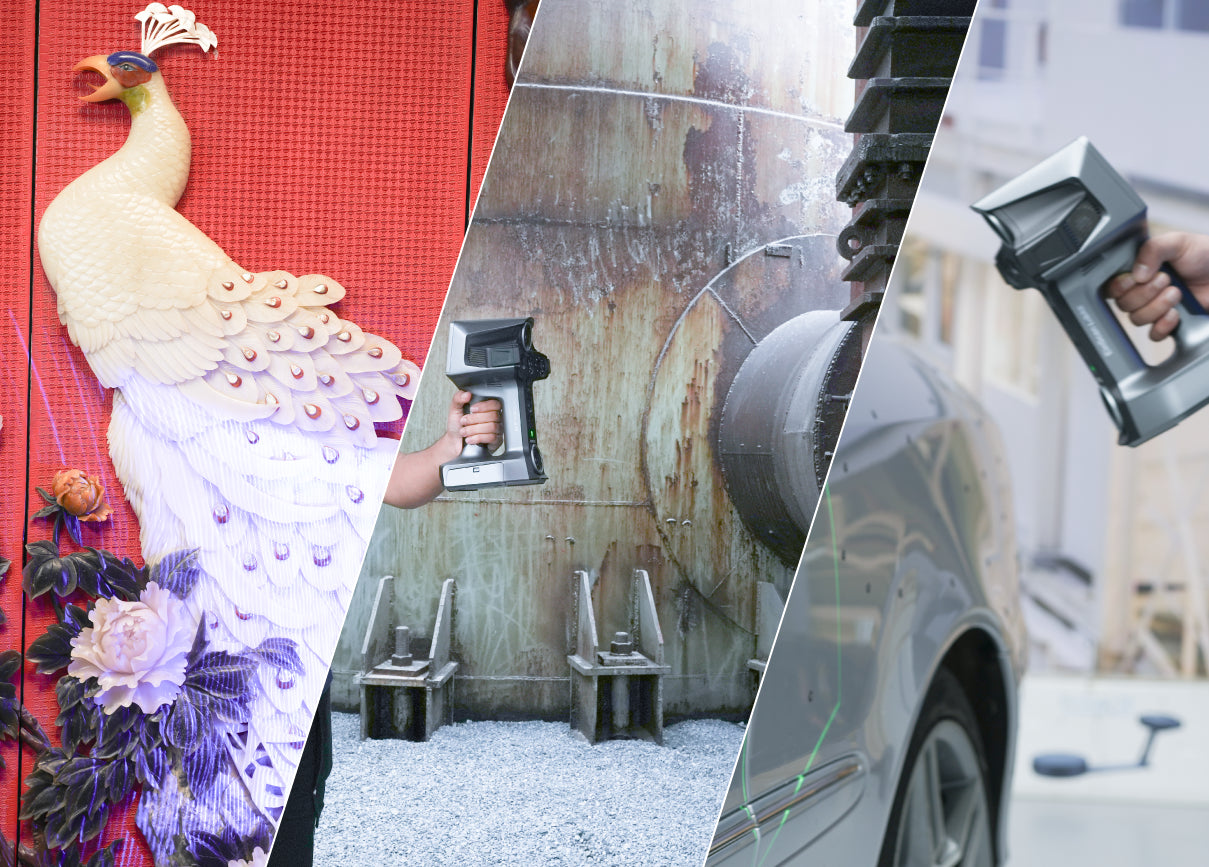

3 Scan Modes Options

Switch between the EinScan Libre's three versatile scan modes to cover object sizes ranging from 0.1m to over 10m.

These IR (infrared) and laser modes help the scanner adapt to all kinds
of materials, whether you're indoors or outdoors in direct sunlight.

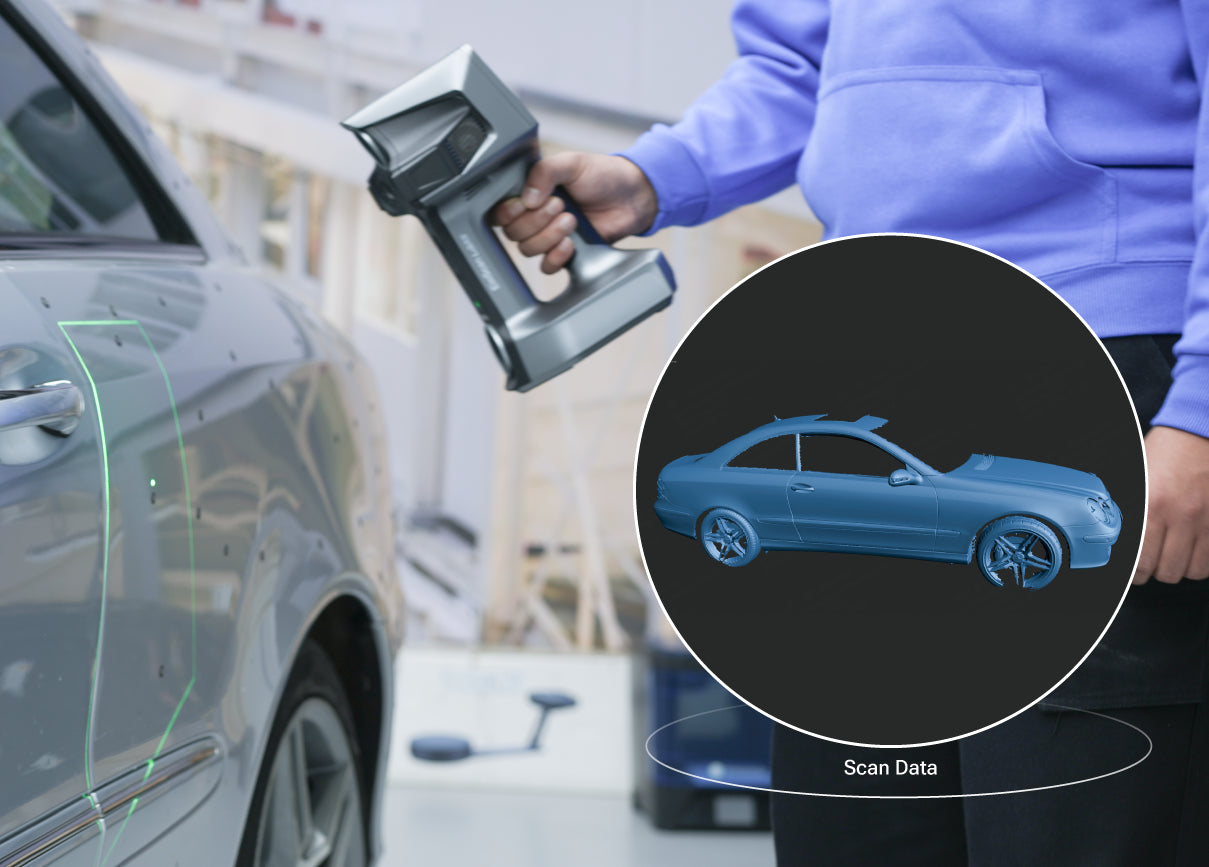

Laser HD Mode

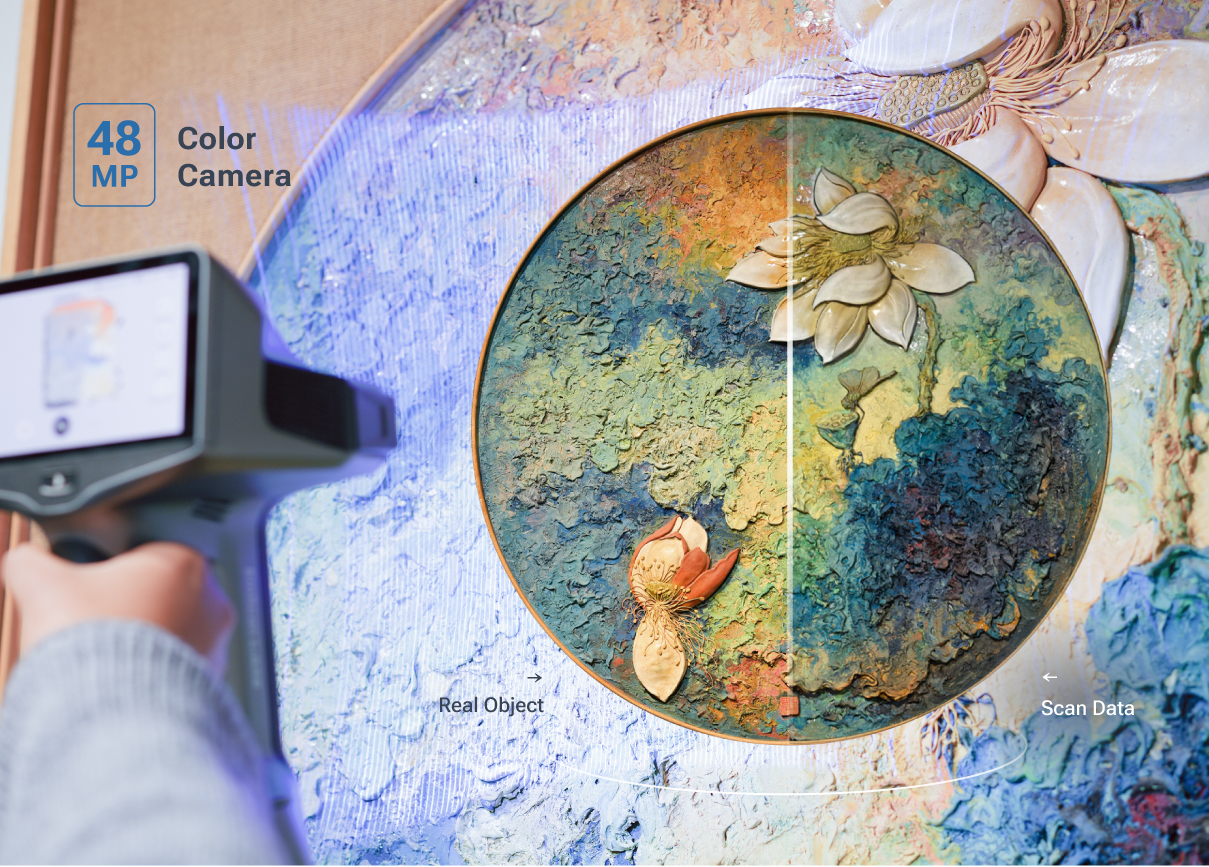

Life like Colour Reproduction
Experience high-resolution color capture with the EinScan Libre. Equipped with a 48MP color camera, it delivers lifelike
color fidelity, capturing every detail with clarity and vibrant colors. The EinScan Libre ensures your scans reflect the full richness of the scene or object you're scanning.

Revolutionary 101 laser lines enable maker-free, high-detailed scanning with rich texture.

Resolution up to 0.05 mm Supports texture alignment

IR Rapid Mode

Ideal for larger areas, this mode offers marker-free and high-efficiency scanning with invisible, eye-safe infrared light. It’s less sensitive to ambient light, making it perfect for outdoor use.

Working distance up to 1.5 m

FOV of 983 x 979 mm

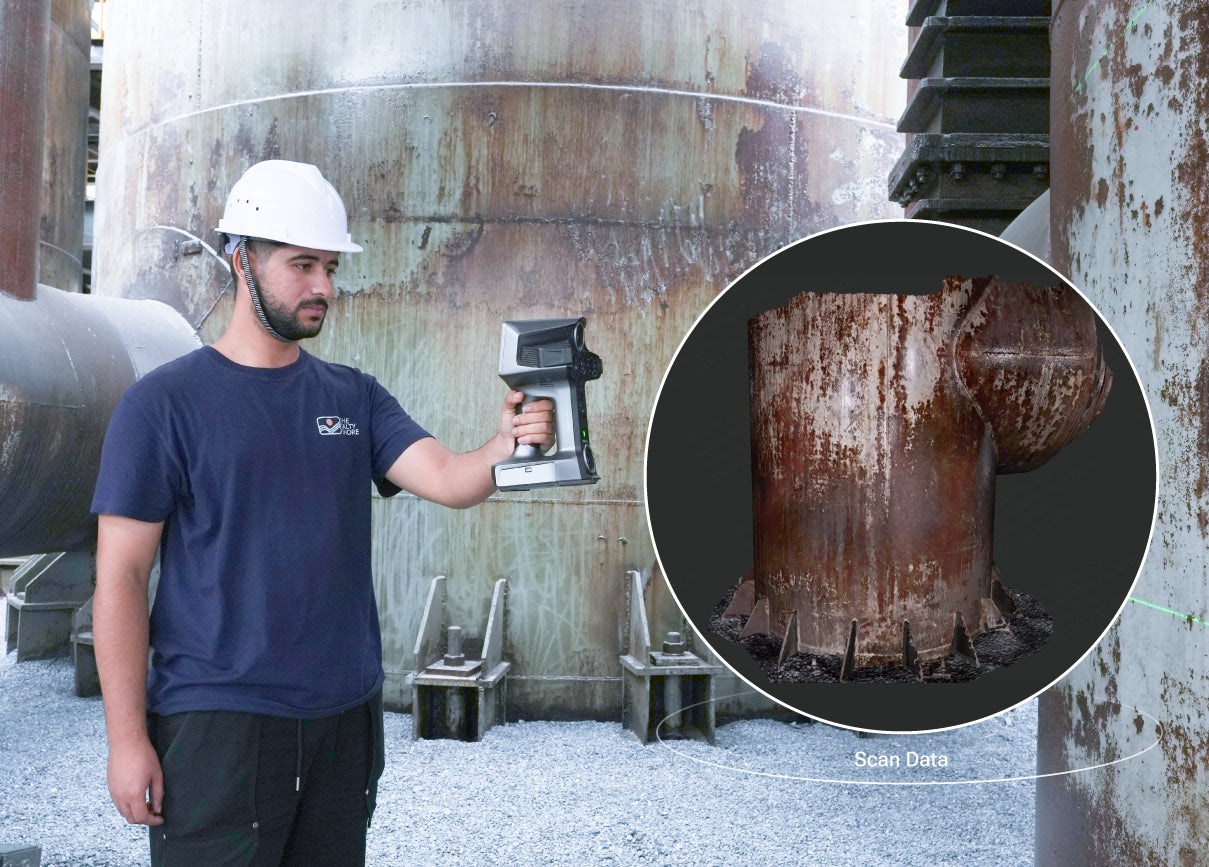

IR Adaptive Mode

Ideal for reflective and black surfaces, delivering reliable results.

38 Infra Red Laser Lines

Volumetric accuracy up to 0.04 + 0.06 mm/m

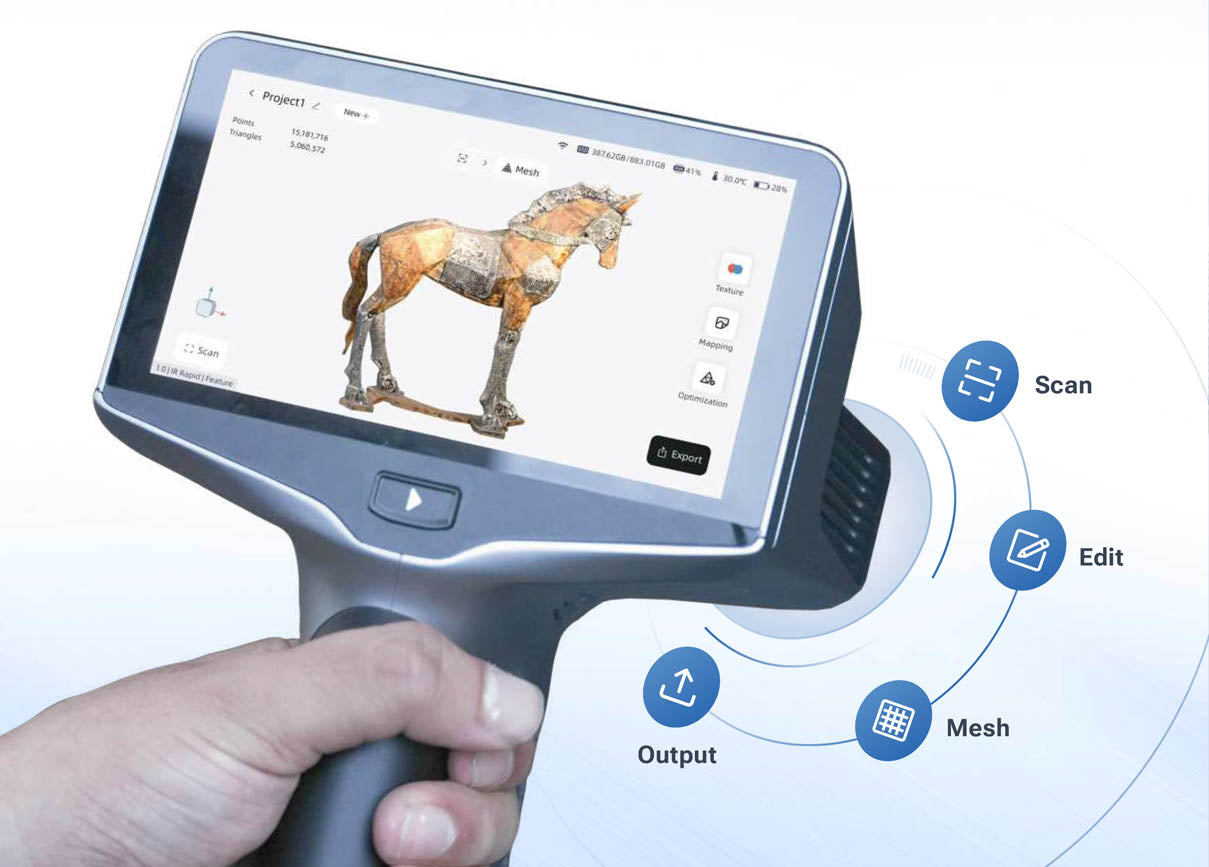

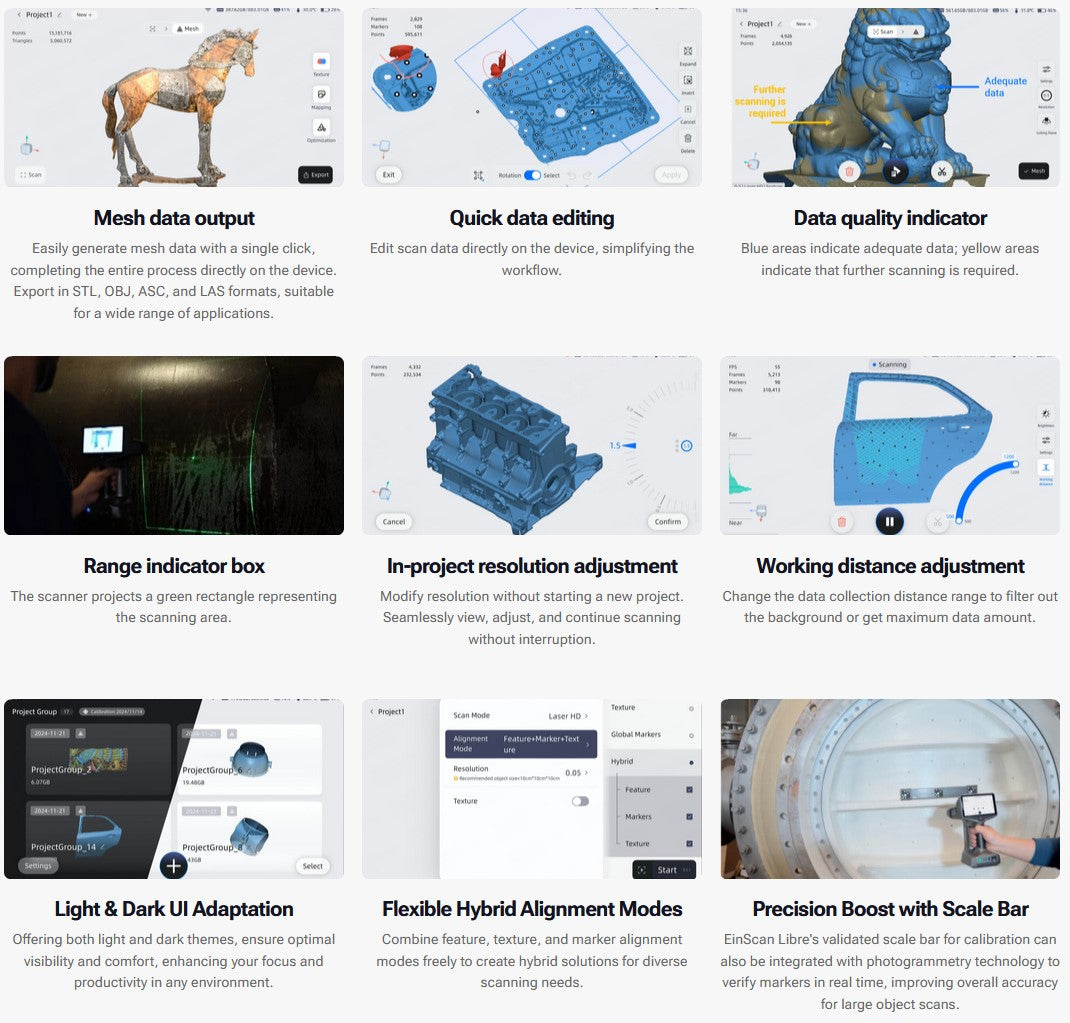

Complete On-Device Workflow

Choose Scan Mode
Nominate the best scanning mode for the size and type of object you wish to scan and start scanning.

Quick data editing
Edit scan data directly on the device, simplifying the workflow.

Mesh data output
Generate mesh data with a single click, completing the entire process on the device without the need for a PC.

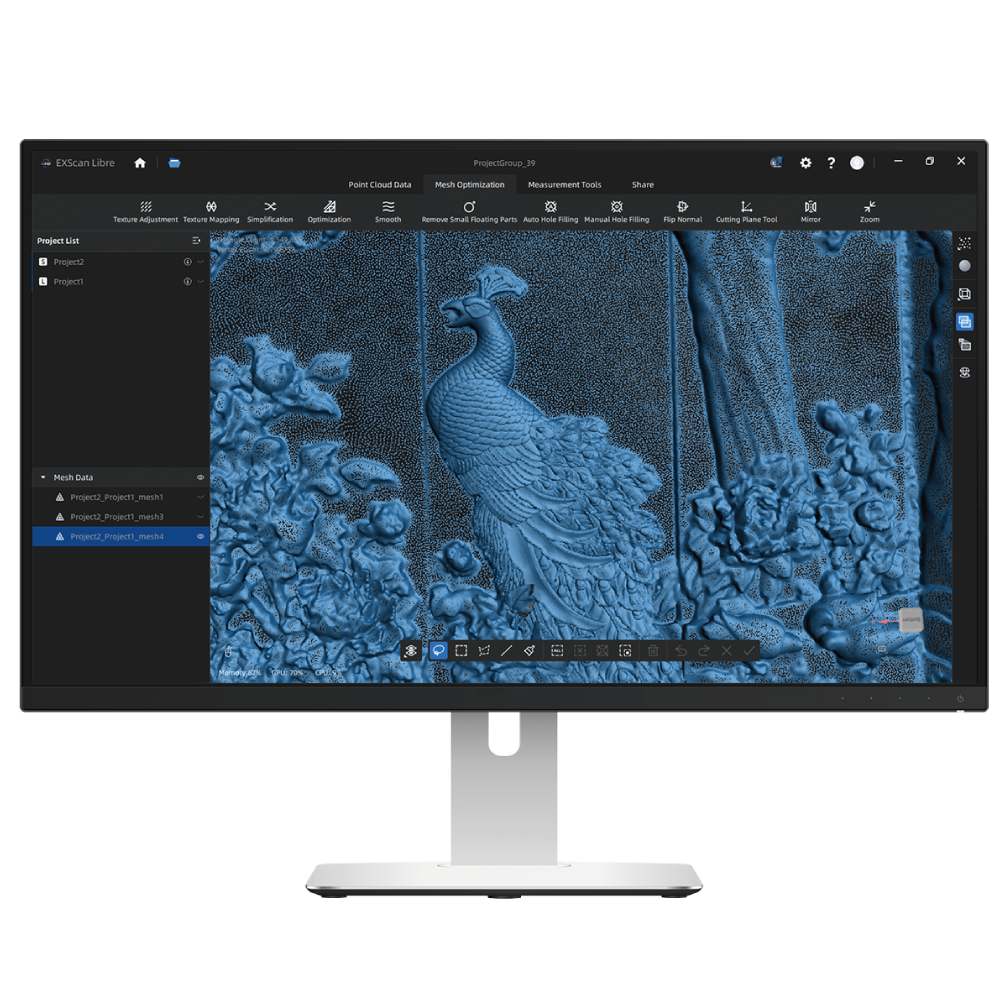

Enhanced PC Integration

Multi-resolution fusion
Effortlessly combine scans with different resolutions across various modes for enhanced results.

Resource-efficient system
Delivers a smooth performance without the need for high-spec computers.

Flexible Workflow
Multi-tasking workflows that offer enhanced flexibility, allowing you to go beyond single-threaded operations.

Measurement Functions
Supports multiple coordinate alignment methods as well as distance, surface area, and volume calculations.
