$1,293.00 ex gst
Vaquform is a manually operated vacuum forming machine that can produce industrial-grade plastic moldings while being compact enough to fit on a desktop.
This machine is the first of its kind to provide a user interface that is similar to what you might find in your smart appliances. There are pre-programmed process controls and user sensors that make it easy to use.
The powerful ceramic heaters allow you to prepare the plastic sheet in a few minutes, while the built-in hybrid vacuum gives high accuracy and mold detail each production cycle. No vacuum cleaner required!
Vaquform can form 0.30mm to 3.00mm plastic sheets (330mm x 250mm) with a maximum draw height of 200mm. This device works for any electrical supply between 100V to 240V AC.

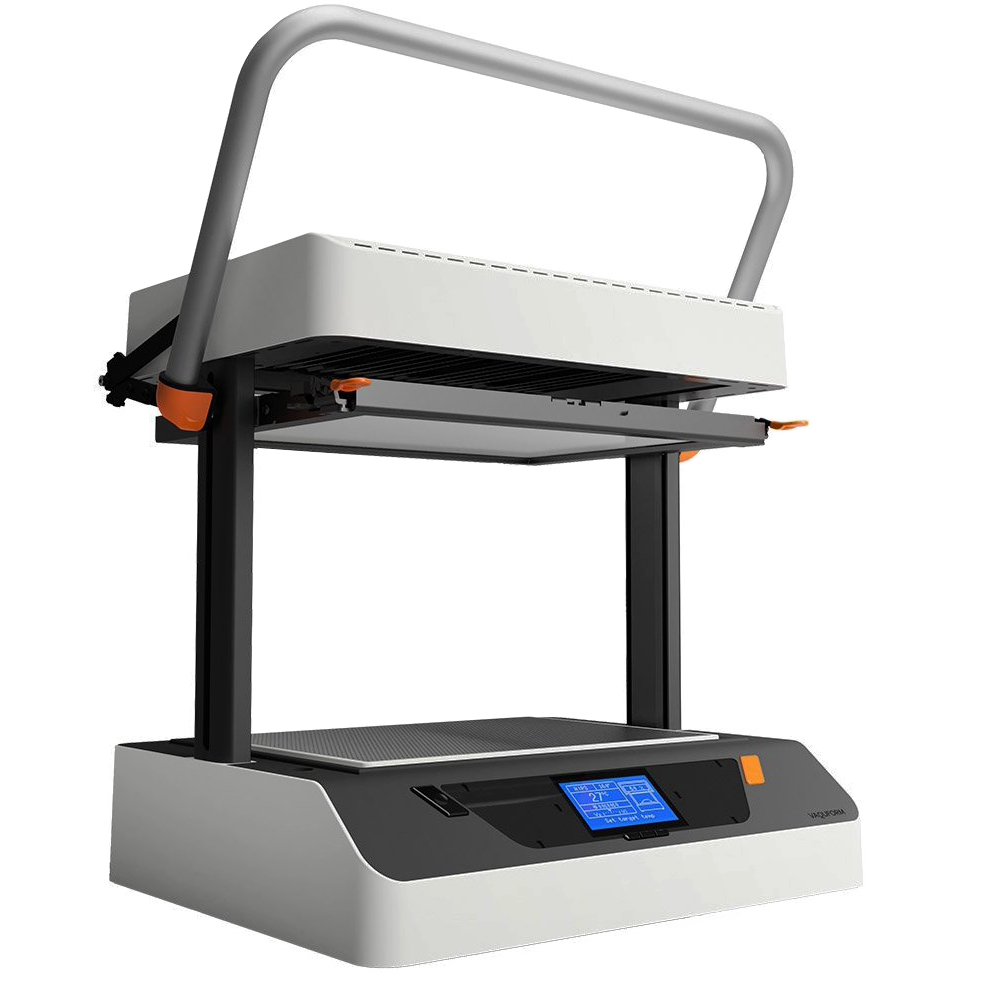

Vaquform DT2
Creativity at your finger tips
Vaquform brings high-end process control to desktop vacuum forming, turning it into a smart appliance fit for a modern engineering lab, design office, or artist
Empower your creativity
with individual designs
Vaquform is the perfect complimentary product to a 3D Printer. 3D print your designs ready for vuccum forming.
Custom Designs for bestoke events has never been easier.
Practical Learning
Ideal for Stem Projects
World Class
in the classroom
Inside each Vaquform is an impeller and a compressor working in tandem to get both high air flow and high pressure. When activated, it has the instantaneous suction of a vacuum cleaner, followed by the powerful pull of a vacuum pump.
Sheet Size: 330 mm x 250 mm
Maximum Sheet Thickness: 3.0 mm
Minimum Sheet Thickness: 0.2 mm
Forming Area: 280 mm x 200 mm
Maximum Depth Draw: 200 mm
Overall Width: 400 mm
Overall Heigh: t405 mm
Overall Depth: 335 mm
Weight: 9 kg
Standard Input Voltage: 100 V - 240 V
Standard Frequency: 50, 60 Hz
Standard Wattage: 1.32 kW
Noise Level: 65 dB
Heater Temperature: up to 250 deg Celsius
