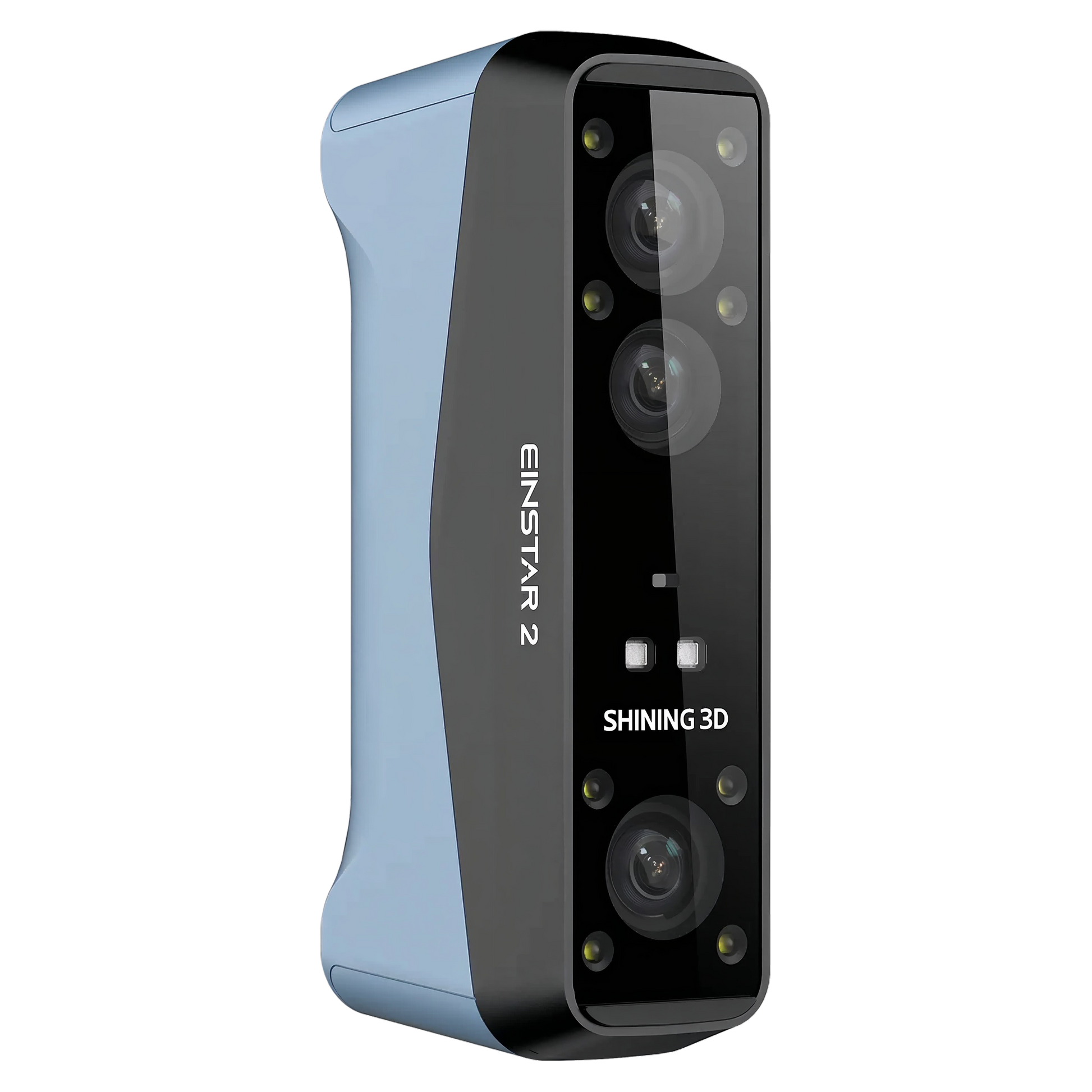

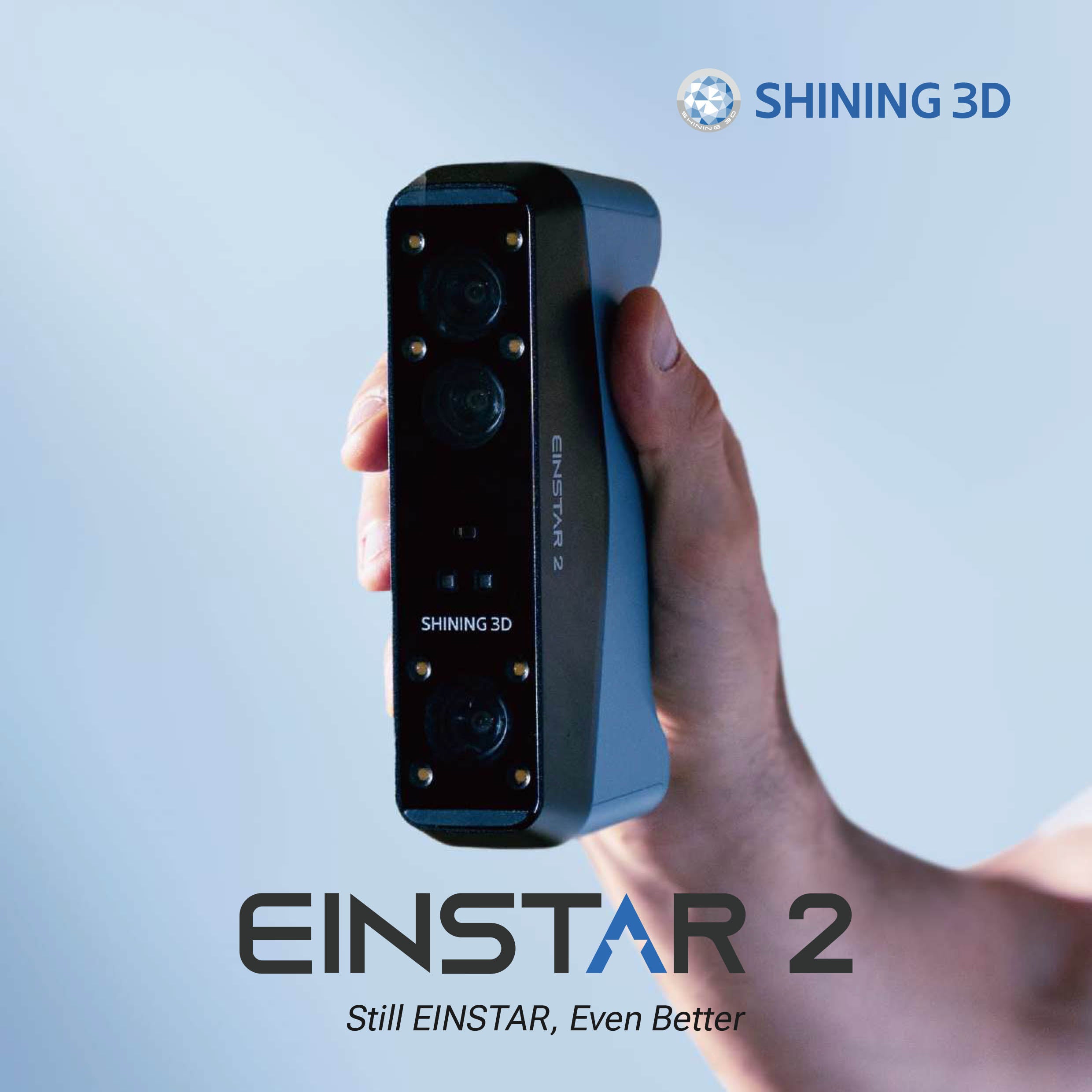

EINSTAR 2 Versatile Dual-Mode 3D Scanning
Discover the EINSTAR 2, a powerful and portable handheld 3D scanner designed for ease and flexibility. Ideal for creatives, hobbyists, educators and 3D enthusiasts. Serious results. No serious experience required.
This compact device puts two distinct scanning technologies right in your hand, allowing you to switch between 3D scanning small 5mm objects at high-precision laser scanning up to fast, large-scaled objects with infrared capture in vivid full-colour.

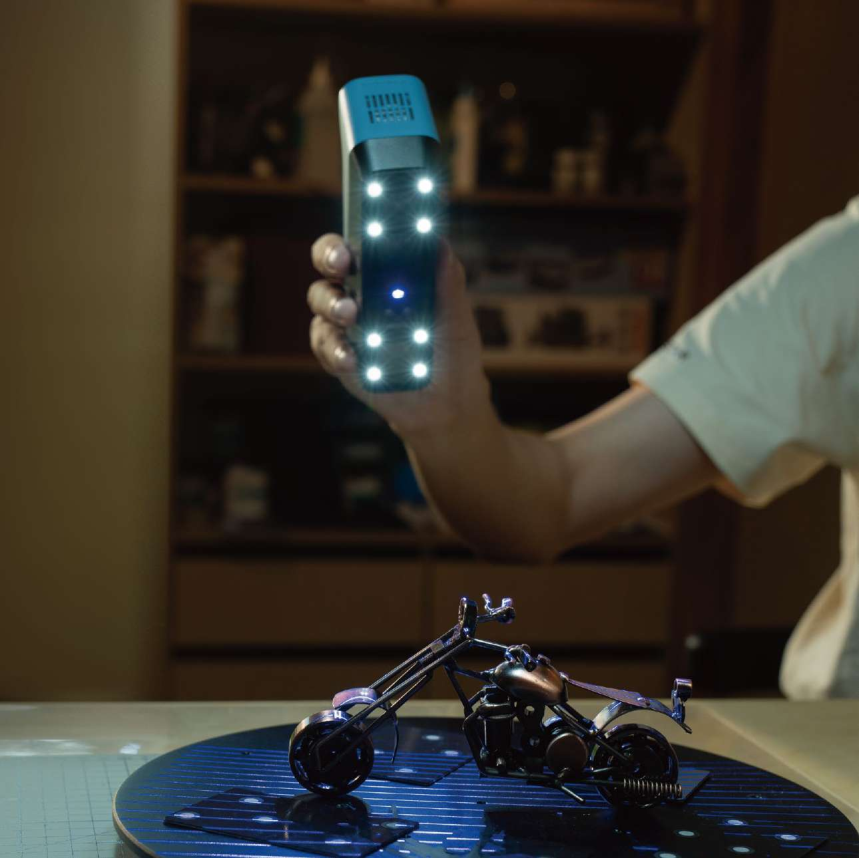

Laser HD Mode
For High-Precision & Fine Detail.
When accuracy is paramount, the Laser HD mode uses 17
blue laser parallel lines to capture data with engineering-grade precision.
- High-Detail Resolution: Achieve an impressive resolution of up to 0.05 mm.
- Fast Precision Scanning: Captures data at 2,500,000 points/s for detailed results, fast.
- Reliably Accuracy: Uses robust marker-based alignment to ensure dependable, high-quality data for reverse engineering and inspection.
- Reflective and metallic surfaces.· High-speed scanning of up to 90 fps with no surface treament.
Inspired to create a chair where the back
Scan Dark and Reflective Objects without surface sprays.
EINSTAR 2 adapts to a wide range of materials, it can scan black or reflective objects directly, no spray required. Save
time, stay clean, and get accurate results instantly.
IR VCSEL Mode
High Speed without Markers.
For Fast, Flexible & Large-Scale Capture
For speed and versatility, switch to IR Rapid mode. This mode uses an IR VCSEL light source, offering a 160mm to a massive 1.4-metre working distance and flexible, markerless scanning.
- High-Speed Efficiency: Scans at 1,440,000 points/s to capture large
objects in minutes. - Markerless Flexibility: Uses a full hybrid alignment system, including features,
texture, and markers, giving you the freedom to scan without preparation. - Ideal For: Large objects, rapid prototyping, and quick capture.
Scan in the Great Outdoors
High Speed, No Strings, No dots.
Handles any light, no dramas: It performs reliably in all sorts of conditions, from bright Aussie sunshine to tricky, varied lighting.
Complete freedom to move: Being fully wireless and cable-free means you can work anywhere without being tied down.
Ideal for work out in the field: It's built to tackle outdoor jobs, letting you easily capture everything from public sculptures to architectural details.
Scans brilliantly even in bright environments:
You can count on its performance in the glare. The Laser HD mode
handles direct sunlight (up to 110,000 Lux) and the IR Rapid mode is
solid in bright conditions (up to 70,000 Lux).
Vivid Full Colour Capture
The Proof is in the Pixels!
Capture photo-realism with the Integrated 2.3MP RGB camera captures vivid, true-to-life color for every scan.
Adds realistic details and depth to 3D models· Perfect for AR/VR, digital art, and custom designs
Full Body Scanning
Gone in 60 seconds.
Scan full body in stunning colour from head to toes in 60 seconds!
Using a IR VCSEL light source (which is easy on the eyes), the IR Rapid mode for is ideal for High-Speed, Large-Scale Capture.
Scan large objects or entire scenes with breathtaking speed. This mode offers a massive working distance from 160mm up to 1400 mm away.
Ideal For: Large-scale objects, rapid prototyping, and full colour texture-based
EXStar Hub Software
Be part of the Next Generation.
EXStar Hub is an intuitive software platform for the entire EINSTAR scanner lineup. It streamlines workflows through a unified interface, reduces system load, and improves performance, allowing faster scanning, greater mobility, and lower operating costs.
With enhanced visuals and simplified controls, EXStar Hub also provides powerful tools for model processing and optimisation.
Advanced Features include:
- Auto detecting plane
- Scan rewind
- Cutting plane tool
- Auto hole filling
- 1-2-3 alignment
- Model measurement
- Texture adjustment
- Model simplification
When you're done, seamlessly export your data to the format you need. The Rockit supports STL, OBJ, PLY, 3MF, ASC, and LAS, ensuring instant compatibility with your preferred CAD, 3D printing, or visualisation software.
We are here to help!
The 3D Printer Superstore are Australia's Leading Experts in 3D Scanning with over 25 years experience in design, 3d scanning and reverse engineering. We can provide solid advice on what is best most suitable for your needs.
