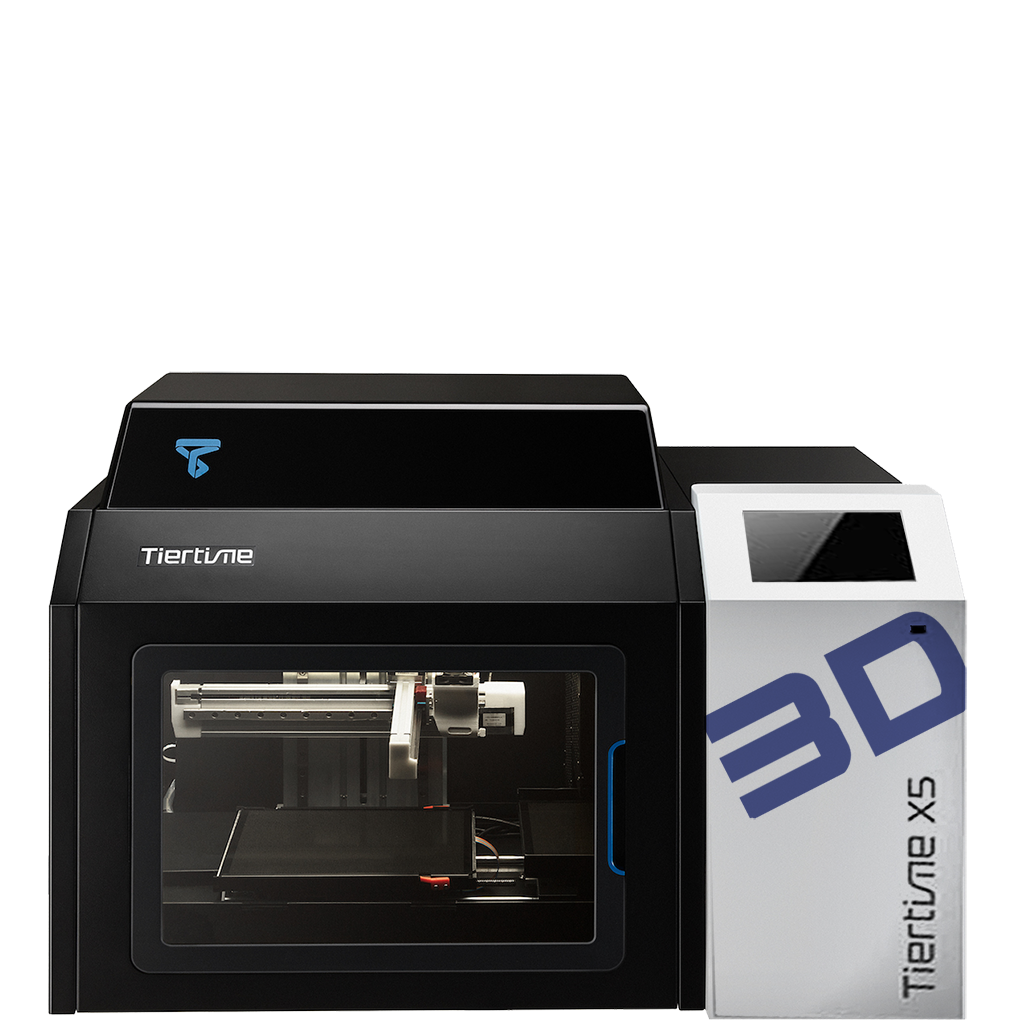

Introducing the crowning achievement of Tiertime's 3D printers, the X5 continuous 3D printer!

The X5 is a large scale 3D printer, allowing you to build big parts with a quality and reliability not seen before. This printer has been designed from the ground up for the professional and production environments, housing an incredible 12 build plates that allows it to print continuously, spitting out completed parts and beginning the next from Tiertime's new print queue feature.

x5 3d printer printing tiertime features

This printer can work around the clock without the need to take a break! Once your print has been cleaned off the print bed, simply slot it back into the queue to ensure your printer never has to stop. The X5 can store a staggering 12 build plates at any time, meaning you can produce any amount of copies of the same part, or any amount of different parts without the regular hassle. The X5 can also take filament spools up to 2kg in weight, allowing for smoother and easier printing over longer periods before having to refill.

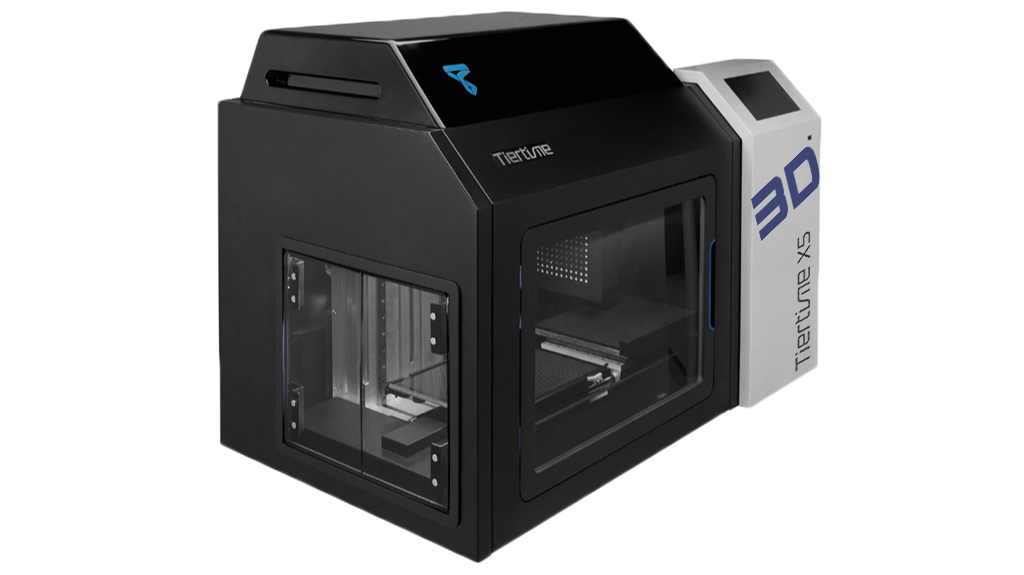

Tiertime X5 Continious 3D Printer

The Tiertime X5 Contnious 3D Printer really takes 3D printing from prototyping to the production stage! Tiertime is always working on new software for the printers, and are working on allowing the X5 to talk to other X5 printers, allowing you to add more production machines to your workshop without having to create individual queues.

tiertime x5 short-run workhorse continuous 3d print printer printing contin-u-print melbourne australia

For the education market, Tiertime has included two separate filtration systems and an incredibly enclosed build volume, allowing the print area to stay warm while filtering out all toxins making the X5 as comfortable in a classroom as it is in a factory.

The X5 can print models taken from the wireless Print Queue, an Ethernet port for wired LAN connectivity, or an on board USB port allowing you to load files straight from your USB.

Printing Technology  MEM (Melted Extrusion Modelling)
Extruder Single
Nozzle Diameter 0.4mm
Extruder Max Temp 299 C
Extruder Max Speed 200 mm/sec
XYZ Accuracy 2, 2, 0.5 micron
Connectivity USB Cable, Wi-Fi, LAN, and USB Stick
Interface 7" Full Color Touch Screen
Build Volume 180 x 230 x 200mm
Printed Object Accuracy +/- 0.1mm/100mm
Layer Resolution 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4mm
Build Plate Max Temp 100 C
Calibration and Levelling Manual
Build Plate Surfacec Perforated Bed
Machine Size 850 x 625 x 520mm
Net Weight 50kg
Resume on Power Failure Yes
Filament Runout Detection Yes
Filament Up Fila ABS, ABS+, PLA, TPU, and more...
Filament Diameter 1.75mm
Filament spool holder  500 - 1000g
Compatible with 3rd Party Filament Yes
