Genuine Platform Heater & Sensor for Up! Plus Printers
up 3d printer heater cable

Genuine Platform Heater & Sensor for Up! Plus Printers

Brand: TierTime

$86.95
Including GST
Genuine Platform Heater & Sensor for Up! Plus Printers | A-04-01 - 30cm long
$86.95
A-04-01 - 30cm long $86.95
A-04-03 $86.95
Notify me when Genuine Platform Heater & Sensor for Up! Plus Printers A-04-01 - 30cm long is available:
Australian Owned & Operated since 2012
100% Secure Checkout
12 Month Warranty
Life Time Local Support

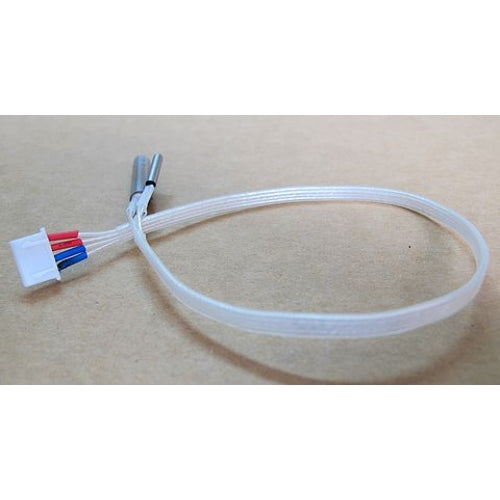

This is a genuine factory heater and sensor cable that are located in the X-Axis for Up Mini and Up 3d Printer Plus 3d printers by Delta Micro Factory Corp.

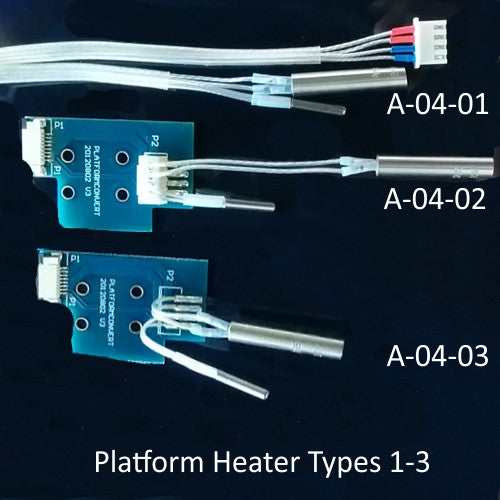

Please see the image above and select the correct platform heater type that matches your UP PLUS 3d printers platform heater.



Replacement Instructions-

  1. Remove the black table (2 screws)  (refer to image above)
  2. Remove the front two screws on the X axis arm
  3. Remove the back right hand side screw on the X axis arm
  4. Then lift off the X axis cover
  5. Take a look which version cable you have as compared to the photo above.

  • 5 stars: 0 (0%)
  • 4 stars: 1 (100%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Andrew H.
Hopefully the last one

I have gone through 3 of these over the last 2 years. When I looked closely I saw that the last 2 had failed in exactly the same spot. Turns out the belt clamp has a sharp angle that puts pressure on the cable so that it fatigues in the same spot. I've filed down this sharp corner so hopefully this one will last years. You can often solder together these cables to get a few more hours printing...just heatshink them well and be careful with routing!
