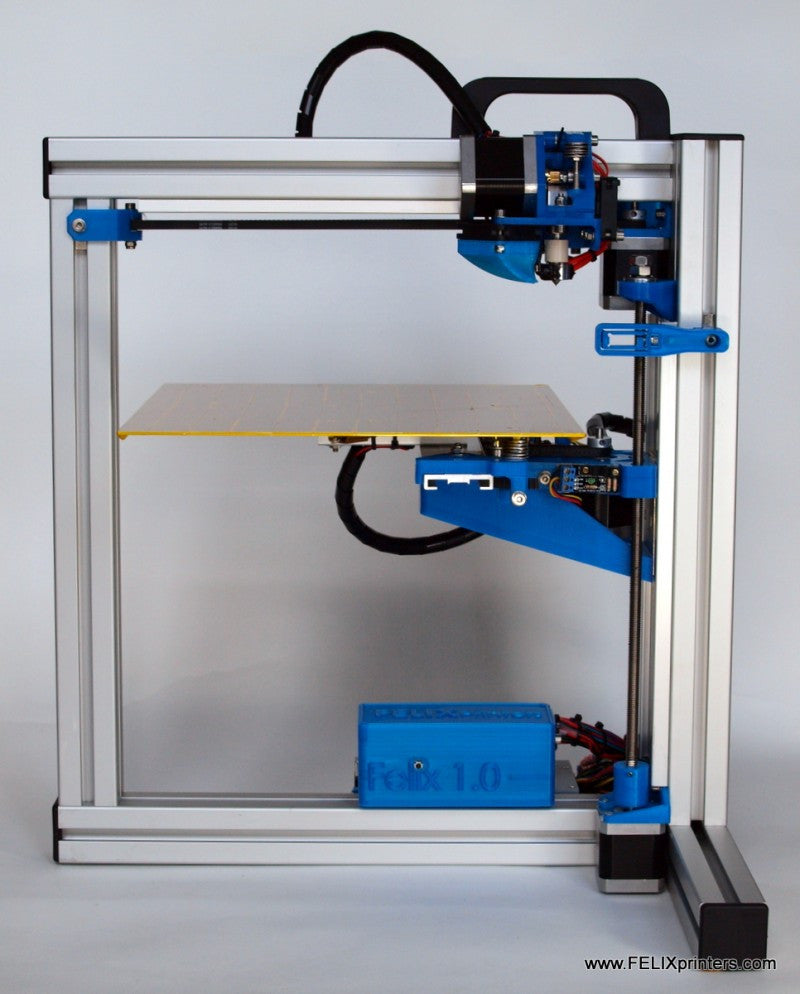

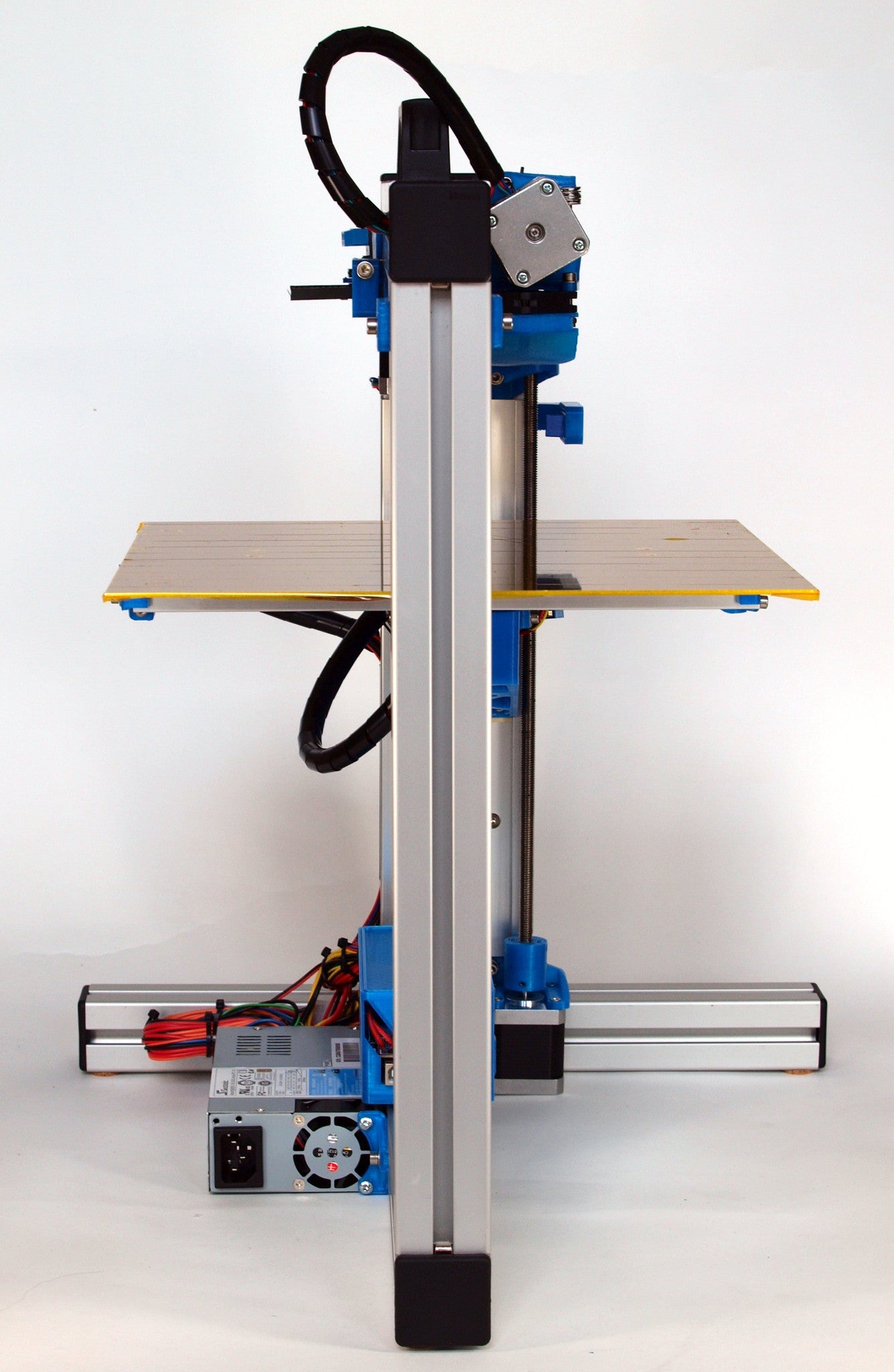

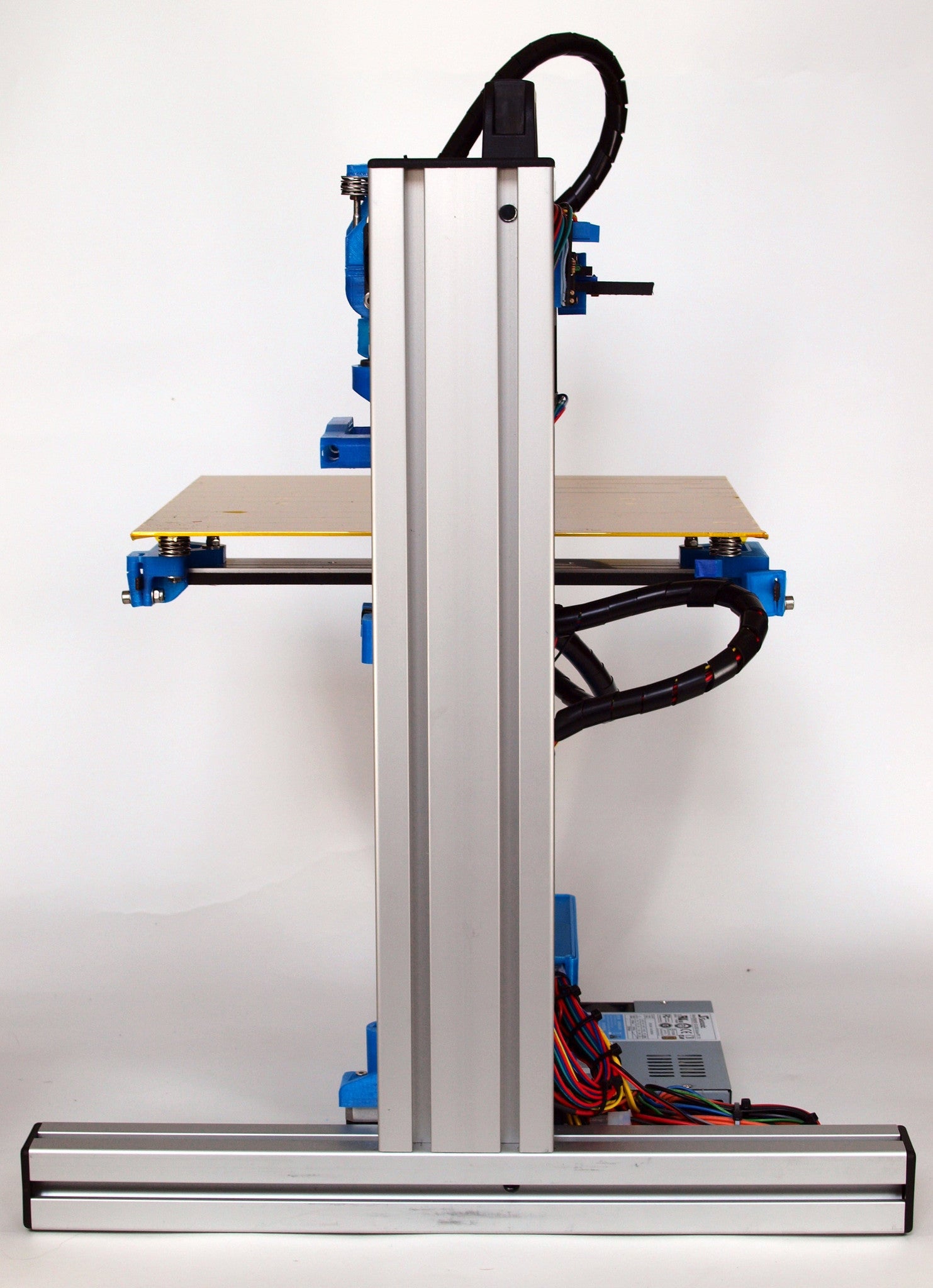

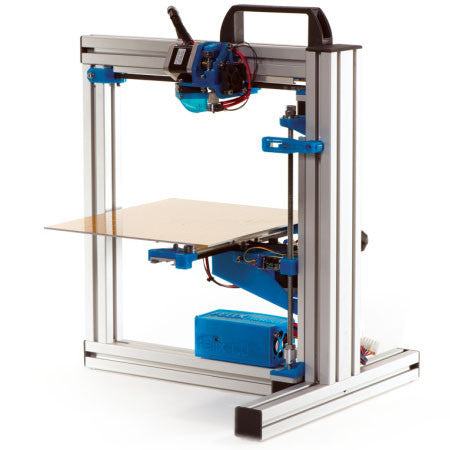

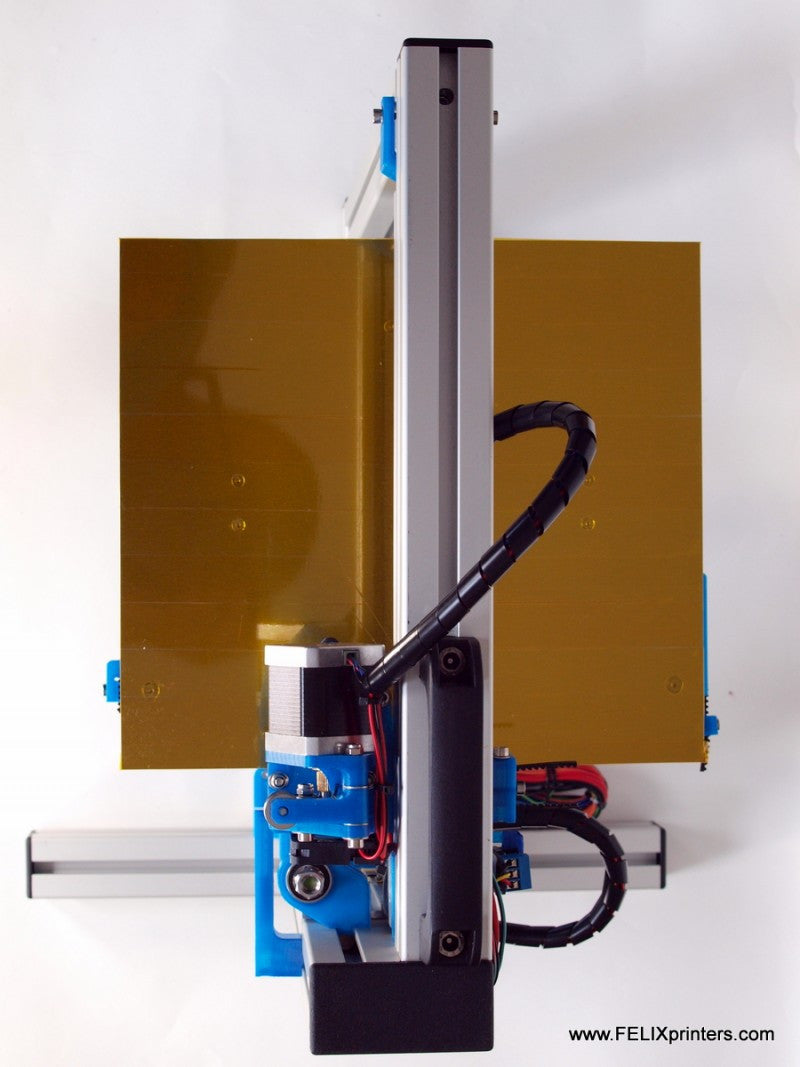

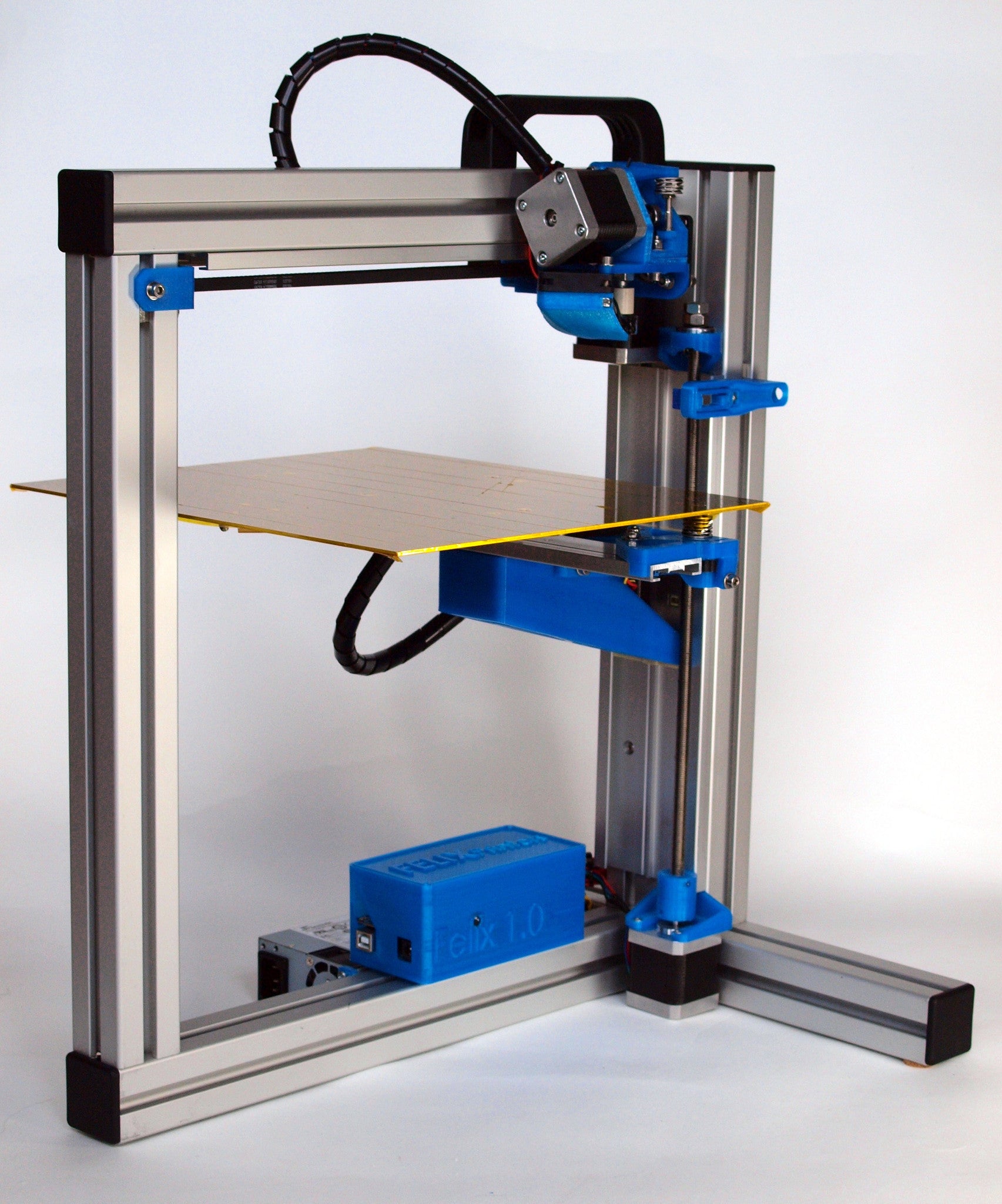

This is the fully assembled variant of the Felix 1.5 made by FELIXprinters (Netherlands). (A complete DIY Kit version is also available here). This printer now includes a 1kg roll of white PLA filament.
The Felix 1.5 3D Printer is an fast, durable and reliable. Years of experience in the field of high precision mechatronics and industrial automation have led to this design. Stand out features include:
Main specifications:
Print volume / build size (X,Y,Z) | (235x 205x200) |
mm |
Frame size (X,Y,Z) | (450x500x530) | mm |
Resolution (Z-AXIS) | 0.05 - 0.35 | mm |
Accuracy | 0.05 | mm |
Print Speed | 150 | mm/sec |
Total mass | 6.7 | kg |
Nozzle diameter | 0.35 | mm |
Filament Diameter | 1.75 | mm |
Filament Material | PLA | |
Slicing Software | Repetier, Pronterface | |
OS Support | Windows only | |
Print without PC | No | |
Heated Bed included | ||
Optical endstop sensors |
Lead time of 2-3 weeks after receiving payment
The printer is designed in the following modules:
Frame module:
Extruded aluminum frame parts
Easy connectors, the frame is assembled by screwing 6 hex bolts
X (moving head) and Y (moving table) module:
Drylin-sliding bearing
Printed parts
Toothbelt
Pulley
Opto-sensor
NEMA 17 motor
Heated bed
Z-axis module:
Drylin-sliding bearing
Printed parts
Spindle
Opto-sensor
NEMA 17 motor
Extruder/Hot-End module:
Hot End
2x Fan
NEMA 17 motor
Electronics module:
RAMPS 1.4 electronics
4x opto-sensors
3m USB cable
Power cable
Fan
Miscelleaneous parts:
Tie wraps
Bolts and nuts
Handle
12V 250W Powersupply FlexATX
![]() |
The well respected MAKE magazine reviewed and and praised FELIXprinters for the following features: - Extremely quiet - Large build volume - Fine Z resolution - Rigid aluminum frame, - Good retraction for near-stringless builds - Speedy printer |
