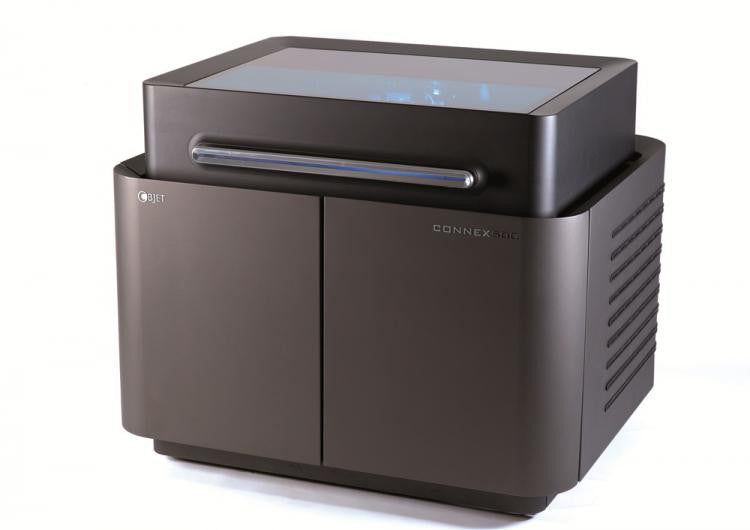

The Objet Connex500™ is Objet’s top of the line multi-material 3D printer. Featuring a large build tray size of 500 x 400 x 200mm, it enables designers and engineers to rapidly build prototypes to simulate their intended end-product closer than any other technology.

What’s Unique about Objet Connex?

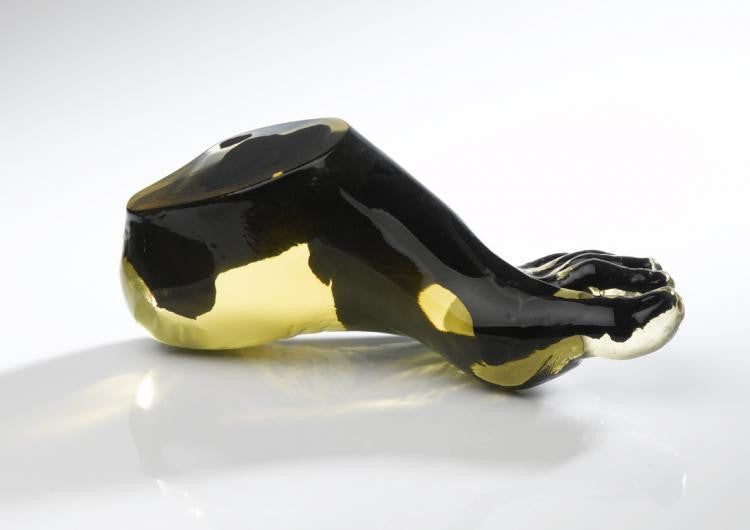

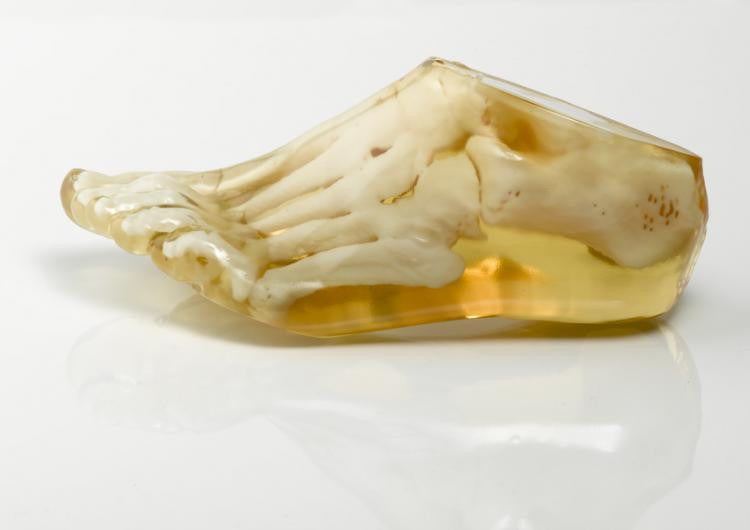

Using Objet’s patented simultaneous multi-material jetting technology, the Objet Connex500 can print models made of up to 14 different materials, in a single print job. The system is ideal for designers and engineers looking to effectively highlight the varying material components in complex or assembled products.

Freedom to Select your Own Materials

From an unrivalled range of over 100 materials including up to 90 Digital Materials™, the Objet Connex500 allows users to simulate diverse mechanical and physical properties, from rubber to rigid; opaque to transparent; and standard to ABS-grade engineering plastics.



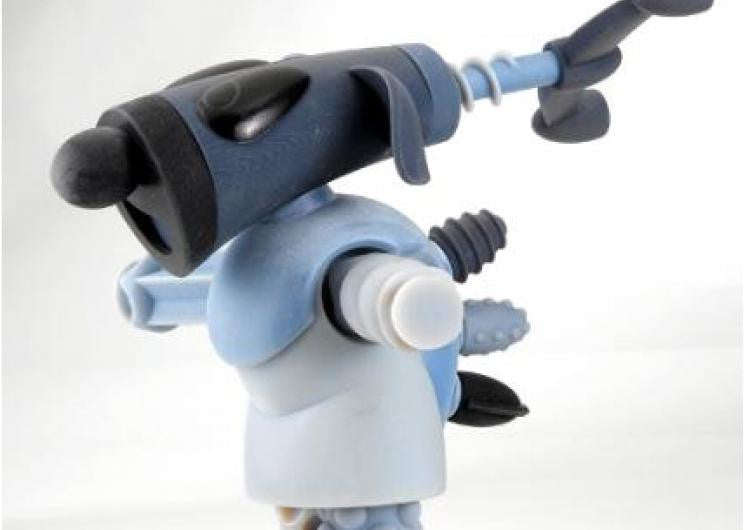

  • Multi-material models – eliminating the need to design, print and glue separate model elements together
  • Different parts. Different materials. Same tray – saves time and serves multiple requirements simultaneously
  • Outstanding 16-micron, high-resolution print layer accuracy
  • 600 DPI X & Y resolution
  • Thin walls down to 0.6mm (0.024")
  • Large-size build tray of 500 x 400 x 200mm
  • High throughput – Up to 20mm per hour per strip
  • Reliability and robustness – at least 72 hours of non-stop build capacity
  • High speed – simultaneously print multiple items of different materials.
  • Choice of over 100 materials

Technical Specifications



Layer Thickness (Z-axis)
Horizontal build layers down to 16-micron
Tray Size (X×Y×Z)
500×400×200 mm (19.7×15.7×7.9 inch)
Net Build Size (X×Y×Z)
490×390×200 mm (19.3×15.4×7.9 inch)
Build Resolution
X-axis: 600 dpi
Y-axis: 600 dpi
Z-axis: 1600 dpi
Printing Modes
Digital Material (DM): 30-micron (0.001 inch)
High Quality (HQ): 16-micron (0.0006 inch)
High Speed (HS): 30-micron (0.001 inch)
Typical Accuracy
20-85um for features below 50mm
Up to 200um for full model size
(for rigid materials only, depending on geometry,
build parameters and model orientation)
Supported Model Materials
• FullCure®720 General Purpose, transparent
material
• Vero Family opaque materials
• DurusWhite Polypropylene-like material
• Tango Family rubber-like flexible material
Digital Materials
Wide range of composite materials fabricated
on the fly
Support Type
• FullCure®705 Support
• Non-toxic gel-like photopolymer support
easily removed by WaterJet
Materials Cartridges:
• Four sealed 3.6 kg (7.9 lb) cartridges
• Tango family and DurusWhite also
available as 1.44kg (3.17 lb) net weight
in 3.6 kg casing
• Two different model materials loaded
• Front loading for quick replacement
Power Requirements
110–240 VAC 50/60 Hz
1.5 KW single phase
Machine Dimensions (W×D×H)
1420×1120×1130 mm
(55.9×44.1×44.5 inch)
Machine Weight
Net 500kg (Net 1102 lb)
Operational Environment
18°C to 22°C (64.5°F to 71.5°F)
Relative Humidity 30 – 70%
Compatibility
Windows XP, Windows Vista
Software
Objet Studio™ for Connex500 features:
• Easy selection of materials including
Digital Materials
• Part separation into sub-assemblies
• Automatic real time support structure
generation
• Suggested build orientation and speed,
auto-place
• Slice on the fly
• Network version
Input Formats
STL, OBJDF and SLC Files
CADMatrix™ Add-in
CADMatrix add-in enables designers and
engineers to seamlessly assign Objet model
materials to multi-part, multi-material designs
within CAD software*, thus allowing for
increased control of 3D model validation.
Special Facility Requirements
None
Print Heads
8 Units
Network Communication
LAN – TCP/IP
* CAD software: CADMatrix™ is compatible with the following:
Pro/ENGINEER®, SolidWorks, AutoDesk Inventor
