Geared Nema17 Stepper Motor

0 Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

The ultimate in torque for extruders and other applications these geared motors output around 120N-cm of torque which is over double that of our highest torque plain NEMA17. These use a 5.18:1 ratio planetary gearbox with all steel components. The output shaft is 8mm in diameter and has a flat on it for a grub screw to secure against to completely lock a drive gear onto the shaft. The motor also has a convenient connector and comes with a lead that plugs into that connector allowing for easy connection and removal of your extruder. Nearly equal to a Nema23 56mm Stepper Motor but only half the weight.

nearly equal to a Nema23 56mm Stepper Motor but only half the weight. - See more at: http://www.robotdigg.com/product/90/Geared+Nema17+Stepper+Motor#sthash.4czzzYFX.dpuf
nearly equal to a Nema23 56mm Stepper Motor but only half the weight. - See more at: http://www.robotdigg.com/product/90/Geared+Nema17+Stepper+Motor#sthash.4czzzYFX.dpuf
nearly equal to a Nema23 56mm Stepper Motor but only half the weight. - See more at: http://www.robotdigg.com/product/90/Geared+Nema17+Stepper+Motor#sthash.4czzzYFX.dpuf
nearly equal to a Nema23 56mm Stepper Motor but only half the weight. - See more at: http://www.robotdigg.com/product/90/Geared+Nema17+Stepper+Motor#sthash.4czzzYFX.dpuf
nearly equal to a Nema23 56mm Stepper Motor but only half the weight. - See more at: http://www.robotdigg.com/product/90/Geared+Nema17+Stepper+Motor#sthash.4czzzYFX.dpuf

17HS1070-C5X technical specification17HS1070-C5X Stepper motor for 3d printer extruders

Specifications-

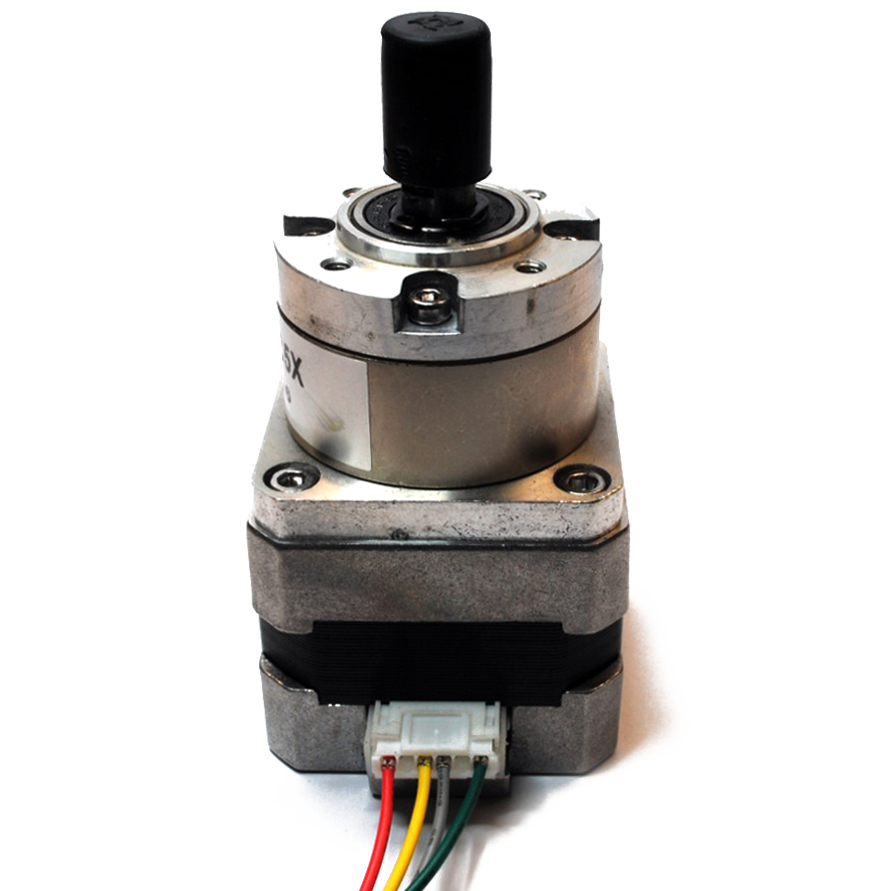

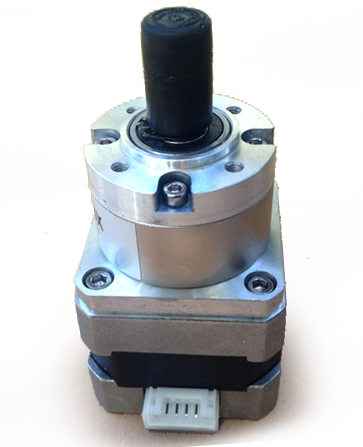

Nema 17 Stepper Motor 12 Volt Geared Motor 17HS1070-C5X

Item Specification
Step Angle  1.8°
Step Angle Accuracy ±5% (full step,no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80°CMax.(rated current,2 phase on)
Ambient Temperature -10°C~+50°C
Insulation Resistance 100MΩMin.  500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.06Max.(450 g-load)
Shaft Axial Play 0.08Max.(450 g-load)



Phase  Voltage Current Inductance Resistance Holding  Rotor  Weight Length Wire
No. Torque Inertia No.
  V A mh ±20% Ω ±10% mN.m g.cm ² kg mm
2 2 1.3 2.4 1.56 260 38 0.2 61.3 4
Model Number 17HS1070-C5X
Holding Torque 120 N-cm
Gear Ratio 5.18:1 ratio planetary gearbox
Shaft 8mm with flat
Rated Voltage  3.1 volts
Lead Length 30cm
Gearbox Model Number

36PA5.18G
