A Revolution in True-Product Realism

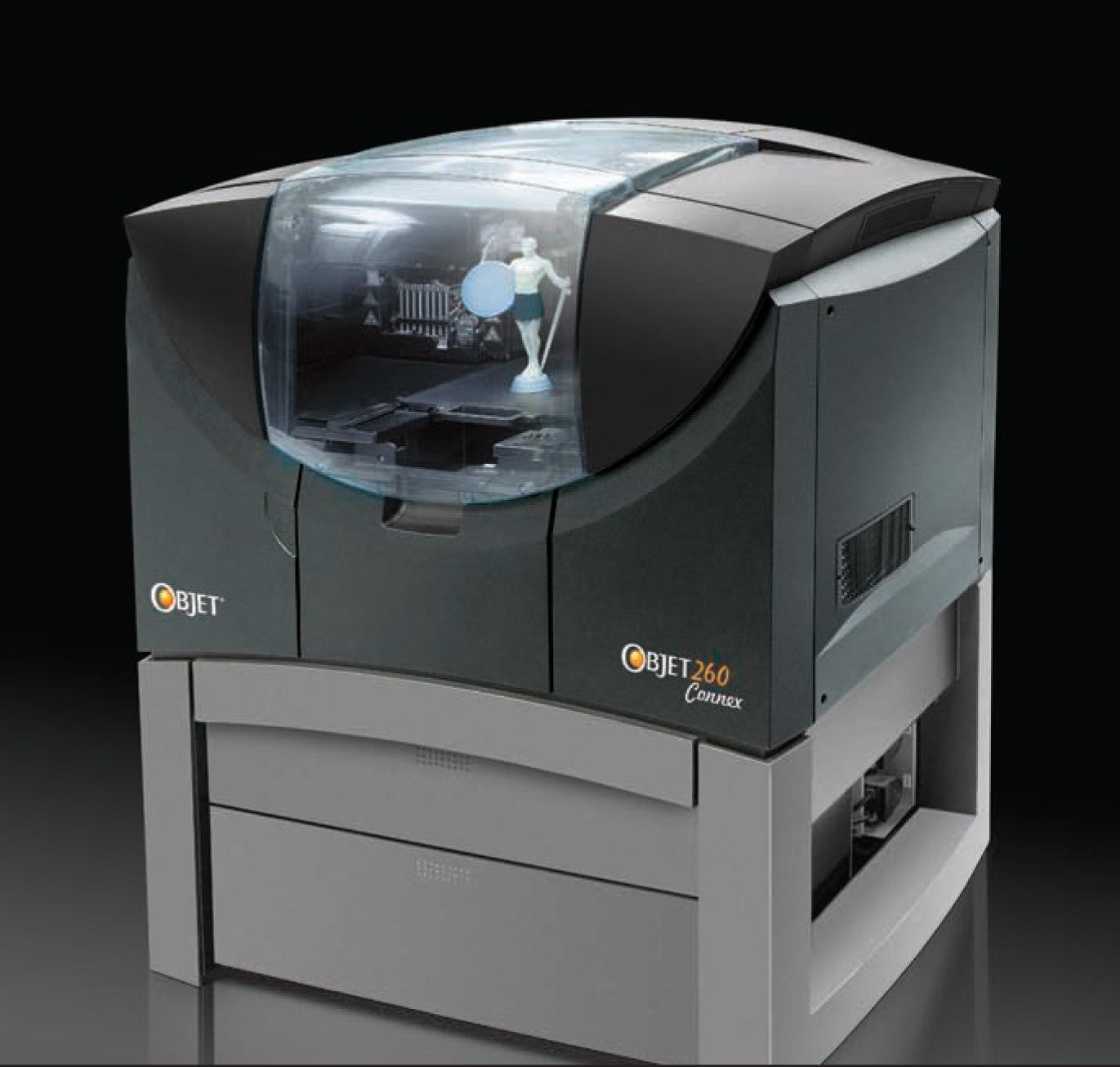

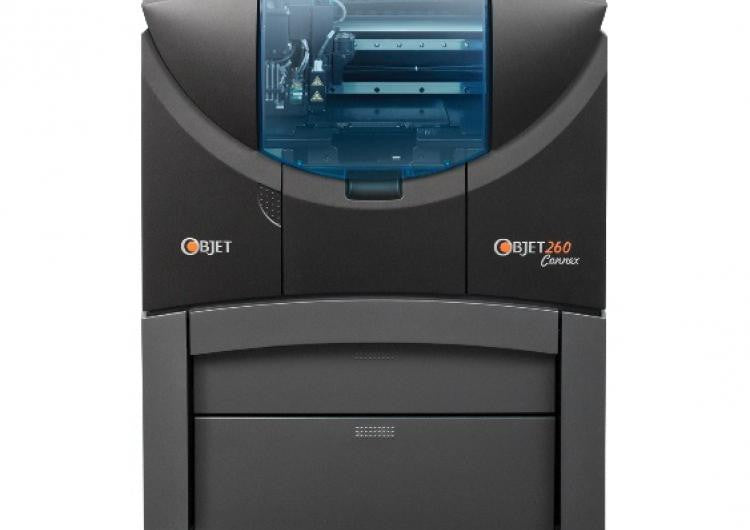

The Objet260 Connex™ is a compact, attractively priced edition of Objet’s pioneering line of multi-material 3D printers. It enables designers and engineers to rapidly build prototypes to match their intended end-product like no other technology currently available.

What’s Unique About Objet Connex?

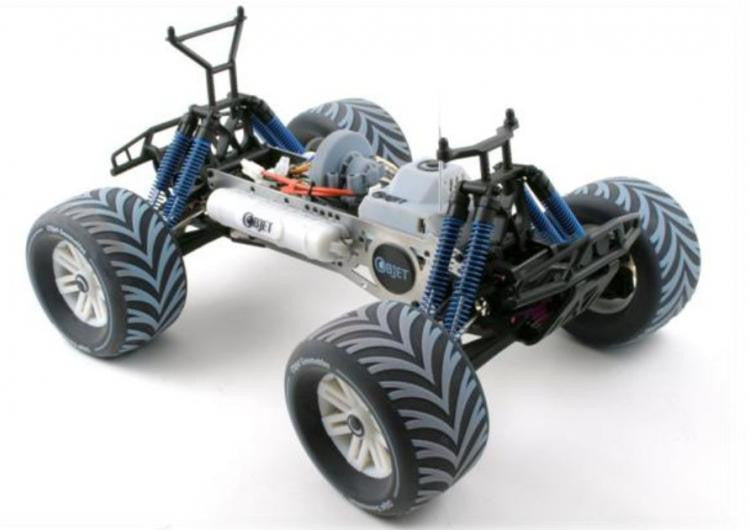

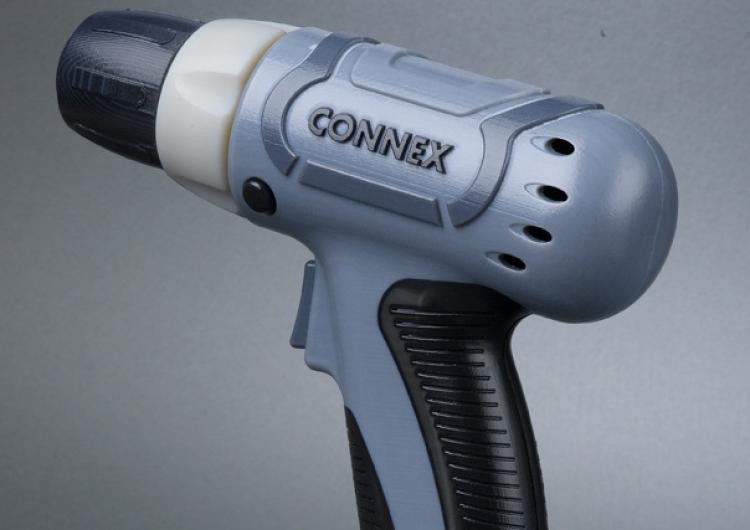

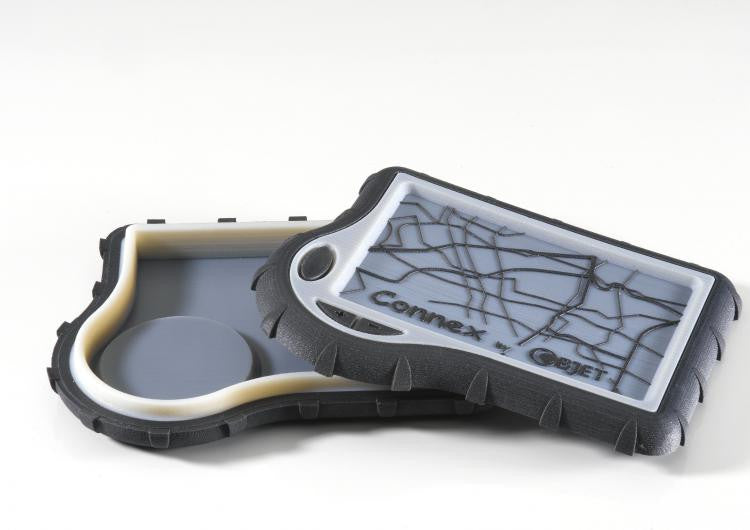

The Objet260 Connex comes with a choice of over 100 different build materials. From these it can simultaneously build 14 different materials into a single model part, providing a highly accurate idea of how even complex or assembled end products will look and perform.

Freedom to Select the Right Materials

The Objet260 Connex enables users to select up to 90 composite, Digital Materials™ simulating anything from rubber to transparency to rigid ABS-grade engineering plastics. It encourages designers and engineers to explore and innovate and helps them to come to the right choices based on the best representation of their intended end-product.

Technical Specifications



Layer Thickness (Z-axis)
Horizontal build layers down to 16-micron
Tray Size (X×Y×Z)
260×260×200 mm (10.2 x 10.2 x 7.9 inch)
Net Build Size (X×Y×Z)
255×252×200 mm (10.0 x 9.9 x 7.9 inch)
Build Resolution
X-axis: 600 dpi
Y-axis: 600 dpi
Z-axis: 1600 dpi
Printing Modes
Digital Material (DM): 30-micron (0.001 inch)
High Quality (HQ): 16-micron (0.0006 inch)
High Speed (HS): 30-micron (0.001 inch)
Typical Accuracy
20-85um for features below 50mm
Up to 200um for full model size
(for rigid materials only, depending on geometry,
build parameters and model orientation)
Materials Supported
• Objet ABS-like Digital Material (RGD5160-DM)
• Objet VeroClear rigid transparent
• Objet Tango family of rubber-like flexible
• Objet FullCure®720 general purpose
transparent material
• Objet Vero family of rigid opaque
• Objet DurusWhite polypropolyne-like
Digital Materials
Wide range of composite materials
fabricated on the fly including:
• Engineering plastics such as Objet
ABS-like Digital Material (RGD5160-DM),
fabricated from RGD515 and RGD535
• Transparent shades and patterns
• Rigid opaque shades
• Different shore value rubber-like materials
• Polypropylene with improved thermal
resistance
Support Type
• Objet FullCure®705 Support
• Non-toxic gel-like photopolymer support
easily removed by WaterJet
Materials Cartridges:
• Four sealed 3.6 kg (7.9 lb) cartridges
• Objet VeroClear, Objet Tango family
Objet DurusWhite and Components
of Objet ABS-like Digital Material also
available as 1.44kg (3.17 lb) net weight
in a 3.6kg size casing
• Two different model materials loaded
• Front loading for quick replacement
Power Requirements
110 – 240 VAC 50/60 Hz
1.5 KW single phase
Machine Dimensions (W×D×H)
870×735×1200 mm (34.3 x 28.9 x 47.2 inch)
Machine Weight
Net 264 kg (582 lb)
Gross (in crate) 310 kg (683 lb)
Software
Objet Studio™ features:
• Easy selection of materials including
Digital Materials
• Part separation into sub-assemblies
• Automatic real-time support structure
generation
• Suggested build orientation, speed and
auto-placement
• Slice on the fly
• Network version
Input Format
STL, OBJDF and SLC File
Operational Environment
Temperature 18°C – 25°C (64.5°F to 71.5°F)
Relative Humidity 30 – 70%
CADMatrix™ Add-in
CADMatrix add-in enables designers
and engineers to seamlessly assign Objet
model materials to multi-part, multi-material
designs within CAD software*, thus
allowing for increased control of 3D model
validation.
Special Facility Requirements
None
Print Heads
8 units
Network Communication
LAN – TCP/IP
Compatibility
Windows XP, Windows Vista, Windows 7
