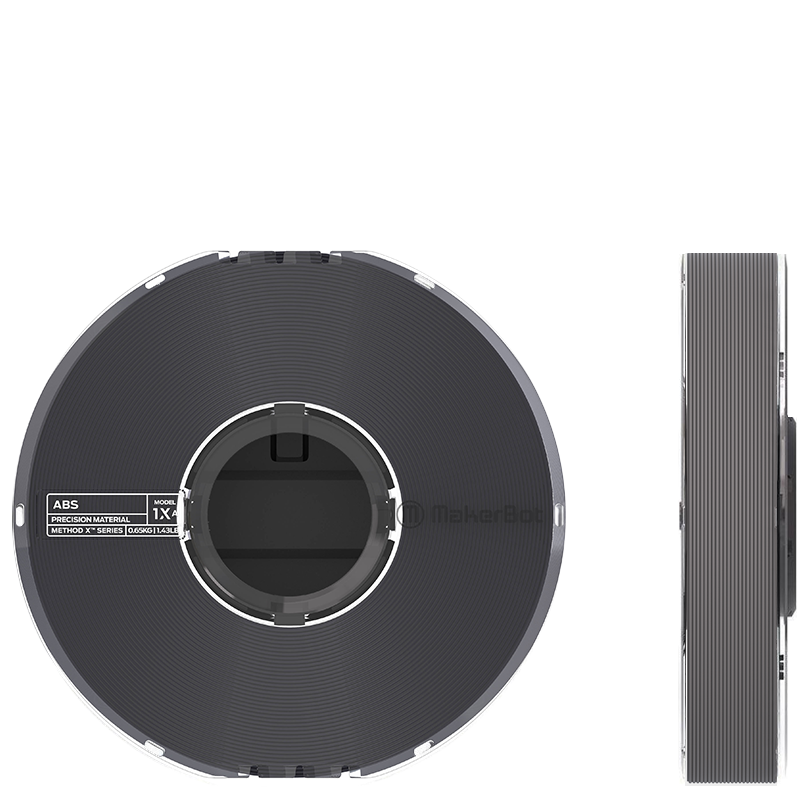

MAKERBOT ABS
ABS Grey 375-0026A (acrylonitrile butadiene styrene) is one of the most common plastics used in injection-molding, found in many common products such as LEGOS, computer keys, power-tool housings, and automotive parts.
REAL, PRODUCTION- GRADE ABS FOR MANUFACTURING APPLICATIONS
ABS is one of the most popular materials for injection molded consumer products due to its clean surface finish, durability, and heat resistance. METHOD X can print manufacturing-grade ABS without warping and without weakening additives thanks to its 100°C heated chamber.
MakerBot real ABS is a real, production-grade ABS material formulation for creating strong and durable functional prototypes, manufacturing tools, and end-use parts. Unlike desktop ABS material formulations containing damaging modifiers and stabilizers that lead to warping and cracking, this real ABS formulation empowers engineers to achieve part properties close to injection molded parts with high dimensional accuracy, durability, and repeatability. Outpace your competition with better materials and better parts. Only with METHOD and MakerBot real ABS.
The Smart Spool contains all the information that the printer needs, including material type, color, and amount remaining via an RFID chip. This is communicated directly to MakerBot Print, while a built-in desiccant absorbs any moisture exposure during the material loading process, ensuring your material stays fresher longer.
END-USE PARTS
Custom parts, low volume production, and components that require high geometric complexity
Applications include:
- • Liquid containers
- • Signage and graphic displays
- • Enclosures for electrical equipment
MANUFACTURING TOOLS
Create tools, jigs, and fixtures at lower cost, with faster turnaround, and without the need for expensive skilled labor
Applications include:
- • Manufacturing tools and aids
- • Robotic end effectors
- • Product testing tools
FUNCTIONAL PROTOTYPES
Get true fit and feel, test in realworld and beyond real-world scenarios, and expedite time to market in the same material as the final injection-molded part
Applications include:
- • Consumer product prototypes
- • Appliance assemblies
- • Automotive parts
SPOOL TYPE
Smart Spool™ provides valuable information including material type, color, and amount remaining via an RFID chip directly to MakerBot Print, while a desiccant in the spool maintains a low moisture level inside the drawer bay.
|
PRINTER COMPATIBILITY
MakerBot Method X
|
EXTRUDER COMPATIBILITY
Material Extruder 1XA
Support Extruder 2XA
|
| TECH SPECS |
Imperial |
Metric |
| Heat Deflection (ASTM 648, 66 psi) |
183°F |
84°C |
| Flexural Modulus (ASTM D790, 15 mm/min) |
11,200 psi |
77 MPa |
| Tensile Strength at yield (Type 1, 0.125", 0.2"/min) |
6,236 psi |
43 MPa |
| Tensile Modulus (ASTM D638, 50 mm/min) |
348,000 psi |
2,400 MPa |
| Strain at Yield - Elongation (%) |
>2.6% |
>2.6% |
| Notched Impact Strength (ASTM D256) |
0.48 ft-lb/in |
26 J/m |
SOFTWARE COMPATIBILITY
MakerBot Print
DIMENSIONS AND WEIGHT
Spool Diameter: 21.8 cm
Spool Width: 4.2 cm
Material Diameter: 1.75 mm
Shipping Weight: 1.1 kg
Net Weight: 0.65 kg
OPERATING ENVIRONMENT
Store MakerBot Method ABS Precision Material in the included a vacuum-sealed metalized polyester bag to avoid moisture absorption from air and long-term exposure to humidity can compromise material quality and performance. Make sure the built-in desiccant is ion the spool to absorb any moisture exposure during the material loading process.
DATA SHEET
Download date sheet -here-
