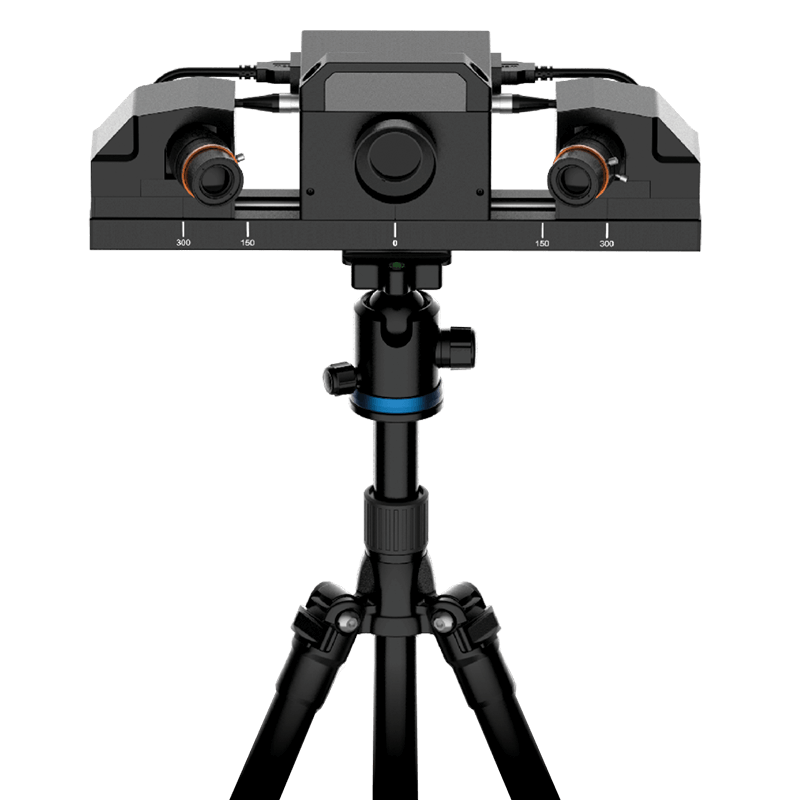

Transcan C

$6,799.00 ex gst $7,180.00 You Save 5% ($381.00 ex gst)

The Transcan C is a professional-grade 3D scanner, ideal for industries requiring high-resolution, accurate scans of medium-sized objects. With adjustable scanning range and 3 resolution levels, users can capture intricate detail with high efficiency.

12MP color cameras produce rich textured 3D models, providing an intuitive image of the physical object.

High accuracy scan data – 0.035 mm ~ 0.05 mm
Dual scan range – easily switch between 150 mm x 96 mm and 300 mm x 190 mm size
Two 12 MP colour cameras for detailed 24-bit colour mapping
Resolution – 0.0375 mm point distance

Light Source	White LED Light
Calibration Mode	Manual calibration
Scan Mode	Structured-light scan with automatic turntable
Scan Range	150mm x 96mm丨300mm x 190mm
Single Shot Accuracy	0.035mm丨0.05mm
Scan Speed	<70s (8 scans/turn without texture); <3s (single frame without texture)
Texture Color	RGB 24-bit color
Texture acquisition method	Fully automatic soft light shooting
Texture Map	12 mega pixels, high fidelity color
Align Mode	markers alignment; feature alignment; manual alignment
Working Distance	260mm丨480mm
Point Distance	0.0375mm；0.075mm；0.114mm丨0.075mm；0.154mm；0.23mm
Data Format	OBJ, STL, ASC, PLY, 3MF
Working Temperature	Indoor, room temperature
System	Win10; 64-bit
Recommended Computer Configuration	Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 1060; Video memory: ≥4 G; Processor: I7-8700; Memory: 32 GB
Size	Host module: 332mm x 110mm x 142mm (bare machine size) Tripod components: 475mm x 120mm x 120mm (bare machine size) Turntable module: 320mm x 320mm x 68mm (bare machine size)
Weight	Host module: 2.7KG (net weight) Tripod assembly: 2.2KG (net weight) Turntable module: 2.1KG (net weight)
Maximum Turntable Load-Bearing Capacity	≤10 KG
