$7,599.00 ex gst

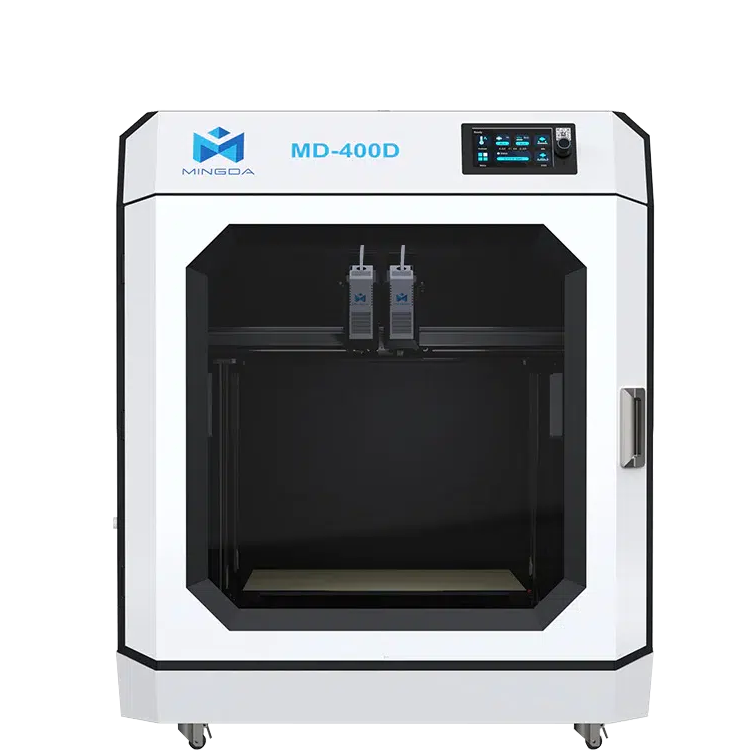

The MD-400D is high speed enclosed build chamber FFF 3D printer engineered with an Independent Dual Extruder (IDEX), making it stand out in its class. It features a substantial 400mm by 400mm by 400mm print volume, engineered specifically for reliable prints in engineering materials.
It offers several different printing modes that make it both versatile and capable of tackling numerous projects. Duplicate Mode offers the capability to print two identical models at once, thus increasing productivity. Mirror Mode enables users to create symmetrical models while saving significant time. Dual-Material Mode provides an option to print a single model in two colours or two materials with different mechanical properties, adding artistic and mechanical edge to 3D printed parts.
Experience superior print quality for complex geometric parts by implementing the MD-400D Support Mode, which assists in printing complex structural models with remarkable precision. This support-focused feature enables user to print with high-performance materials and breakaway material. Complex models with overhanging elements often require support structures, and this is especially true when working with advanced materials. By utilising the second extruder for support printing with a breakaway filament, the MD-400D simplifies support removal, ensuring a smooth and successful printing experience.
Both hot ends reach up to 350°C, allowing for printing high-temperature Nylon filaments and composites for demanding applications.
This printer utilises the latest in Klipper ecosytem of 3d printer technology including high 300m/s print speeds, vibration compensation, automated bed leveling and MINGDA world first optical nozzle alignment calibration.
DOWNLOAD MD-400D Brouchure Here
Best Large Format IDEX 3D Printer for
industrial applications
A substantial 400mm x 400mm x 400mm print volume. This
is not your average, simply upscaled consumer 3D printer since the focus was on ensuring suitability for dependable industrial prints and engineering materials. Fully enclosed, it employs closed-loop stepper motors on all axes.
The MD-400D features Independant Dual Extruders (IDEX). This reduces cross contamination of filament ooze ensuring clean multi-material parts and enables you to print in multiple printing models.
Boasting a class leading high flow rate of 40mm³/s and can print up to 350°C. This enables printing in high strength engineering materials at high speeds.
A direct drive dual geared extrusion systems ensures prescise filament extrusion at high speeds, even with soft flexible materials such as tpu.
IDEX offers the cleanest two-extruder solution that prevents cross-contamination, reduces time between material changes and significantly reduces material wait.
Industrial-grade linear rails ensure smooth and steady axial movements. A significant rise in precision, rigidity, and durability, print quality and accuarcy of 3d printed parts at high speeds.
Duplicate Mode-Print two of the same parts at once- effectively doubling your production rate for batch printing.
Mirror Mode-Print a left and right version of a object at once.
Multi Material Mode- Print in two material colours on the one object or using two different materials with various mechanical properties such as hard plastic with soft TPU.
Support Mode-Print a sacrificial support structure with the second print head. This may be a easy break away support or a soluble material. Ideal for complex geometry.
Klipper controlled firmware controls high print speeds of 300mm/s & travel speeds of up to 500mm/s with 10000mm/s ²Peak acceleration.
High-speed printing with exceptional print quality is ensured by smart technologies including input shaping and vibration compensation for quality prints.
The advanced air flow system truly takes model cooling to the next level with aerodynamic air duct design that blasts models with intensely powerful directed airflow for enhanced cooling capabilities, crafting perfect prints.
An advanced optical surface scanner measures the topology of the print surface within seconds. Ensuring a high accurate first layer with every print.
The PEI print surface with high temperature resistance ensures strong adhesion whilst printing, and is suitable for various consumables.
Once completed 3D prints can be removed with ease.
The heated bed heats to a Maximum of 110°C
The print bed surface heats evenly to 60°C in just 75 seconds.
The nozzle can be heated to 200°C in just 40 seconds.
The fully enclosed chamber controls warping of prints, improved dimensional accuracy and significantly increased the strength of 3D printed parts.
Input shaping technology improves print quality and accuracy.
Flow control allows precise management of the amount of filament being extruded, reducing errors like under/over-extrusion.
This leads to smoother prints with sharper details.
General Use
ABS-HF ASA PETG-HF PLA ASA-Aero
Production End-use
PET-GF PET-CF PA12-CF HtPA-GF HtPA-CF ABS-CF20 HtPA-GF25 HtPA-CF25
Flexible Filaments
TPU95A-HF TPU-75D
Support Filaments
PVA S-Multi S-HTPA
