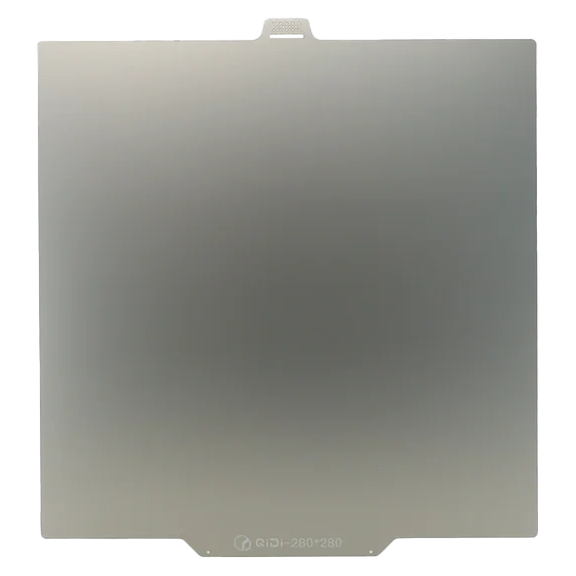

QIDI Q2 Dual-sided Smooth Plate

Sold Out $81.80 ex gst

QIDI Q2 Dual-sided Smooth and Matte Surface Finish Compared with ordinary PEI board, it provides a smoother printing texture and a smooth surface for your prints.

Dual-Sided PEI Coating: Both the top and bottom sides are laminated with 0.188mm-thick smooth PEI, ensuring long-lasting usability and excellent print adhesion for a variety of filaments.
Exceptional Adhesion: The PEI surface offers outstanding adhesion for most filaments, including PLA, ABS, PETG, TPU, PAHT-GF, PPA-CF and more.
Premium Materials: Made with 100% high-quality PEI materials sourced from the USA and Japan, ensuring superior performance and reliability.
Highly Durable: Resistant to wear and scratches, this build plate is designed for long-term use, saving you time and money.
Easy Maintenance: Effortlessly clean with isopropyl alcohol to maintain its superior adhesion and smooth surface.

Convenient Model Removal: After printing, models detach easily once the plate cools, reducing the risk of damage to prints or the plate.
High-Temperature Resistance: Perfect for printing high-performance materials that require heated beds, withstanding high temperatures without warping or degradation.
Convenient Model Removal: After printing, models detach easily once the plate cools, reducing the risk of damage to prints or the plate.

Q2 Double sided smooth build plate by qidi tech

Qidi Q2 3D Printer

Download Qidi Q2 User Guide

Download Qidi Q2 Technical Specifications

QIDI Q2 Technical Specifications

*Print Size (WDH)* 270270256 mm	Printer Dimensions 402438494 mm
Package Dimensions 480520585mm	Gross Weight23.5kg
Net Weight 18.1kg	Print Head Temperature ≤ 370℃
Printing PlateDual-Sided Textured PEI Plate	Hot Bed Temperature≤ 120℃
Max Speed of Tool Head 600mm/s	Acceleration ≤20000mm/s^2
XY Structure CoreXY, 1.5GT Belt	X Axis High Hardness Linear Guide Rail
Z Axis Dual Independent Lead Screw Motors	Printing Platform Aluminum Substrate Heating Bed
Nozzle Bimetal Nozzle	Nozzle Diameter 0.4mm （0.2/0.6/0.8mm Optional）
Extruder Gear Direct Extruder Hardened Steel Gears	Supported Filament PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer，etc.
Filament Diameter 1.75mm	Multi-Color Printing Compatible with QIDI Box(Multi-color)
Air filterYes（3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon）	Chamber Temperature(PTC Heater) 2nd Gen Up to 65° C Independent Chamber Heating
Automatic Leveling Hands-free Automatic Leveling（Loadcell Sensor Integrated into the Hotend）	Filament Detection Run Out Sensor(mounted above extruder), Clog and Tangle Detection(QIDI BOX required)
AI Camera Detection Yes	Auxiliary Part Cooling Fan 4-Pin PWM Fan with RPM Feedback
Hot End Cooling Fan 4-Pin PWM Fan with RPM Feedback	Model Cooling Fan 4-Pin PWM Fan with RPM Feedback
Power Loss Recovery： Yes	Input Shaping Yes
Voltage 110V / 220–240V AC, 50/60Hz (region-specific models available)	Rated Power 350W+280W(Chamber Heating)
Camera Camera (Up to 1080P) Timelapse Supported	Storage 32G EMMC and USB2.0 Flash Drive
Connectivity 2.4 GHz/5 GHz Wi-Fi, Ethernet, USB	Display Screen 4.3 Inch 480*272 Touch Screen
Slicer QIDI Studio and other third-party software, such as Orca,PrusaSlicer etc.	File Formats for Slicing STL, OBJ, 3MF,STEP,STP
