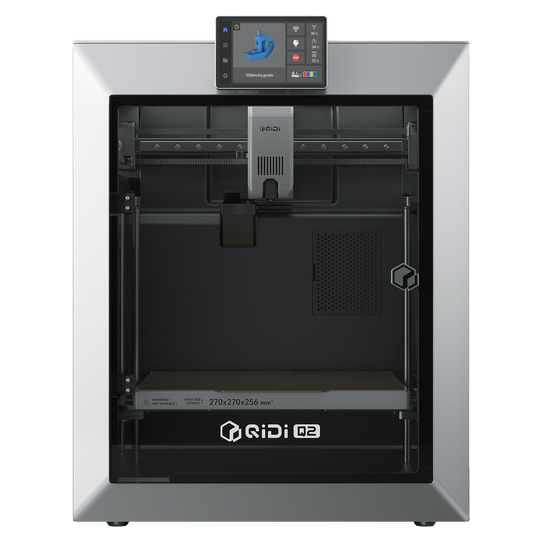

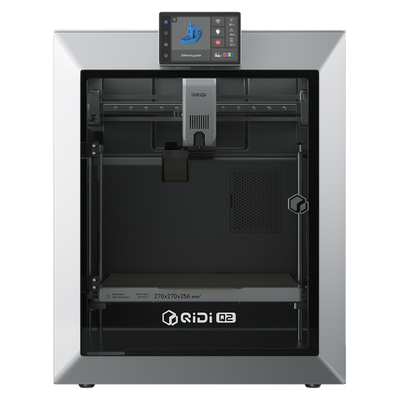

The QIDI Q2 sets a new benchmark for beginner 3D printers. It offers flawless first-layer leveling and a build volume of 270×270×256 mm. Equipped with second-generation active chamber heating reaching 65℃, it includes an integrated 3-in-1 air filtration system and is MET-certified. This model also supports the QIDI Box for multi-color printing. Featuinrg a high speed core XY gantry and 370℃ extrusion- this 3d printer is capable of printing engineering materials such as PPS-CF and PA6-CF carbon fiber filaments.
Download Qidi Q2 Technical Specifications
|
Print Size (W*D*H) 270*270*256 mm |
Printer Dimensions 402*438*494 mm |
|
Package Dimensions 480*520*585mm |
Gross Weight23.5kg |
| Net Weight 18.1kg | Print Head Temperature ≤ 370℃ |
|
Printing PlateDual-Sided Textured PEI Plate |
Hot Bed Temperature≤ 120℃ |
|
Max Speed of Tool Head 600mm/s |
Acceleration ≤20000mm/s^2 |
| XY Structure CoreXY, 1.5GT Belt | X Axis High Hardness Linear Guide Rail |
| Z Axis Dual Independent Lead Screw Motors | Printing Platform Aluminum Substrate Heating Bed |
| Nozzle Bimetal Nozzle | Nozzle Diameter 0.4mm （0.2/0.6/0.8mm Optional） |
| Extruder Gear Direct Extruder Hardened Steel Gears | Supported Filament PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer，etc. |

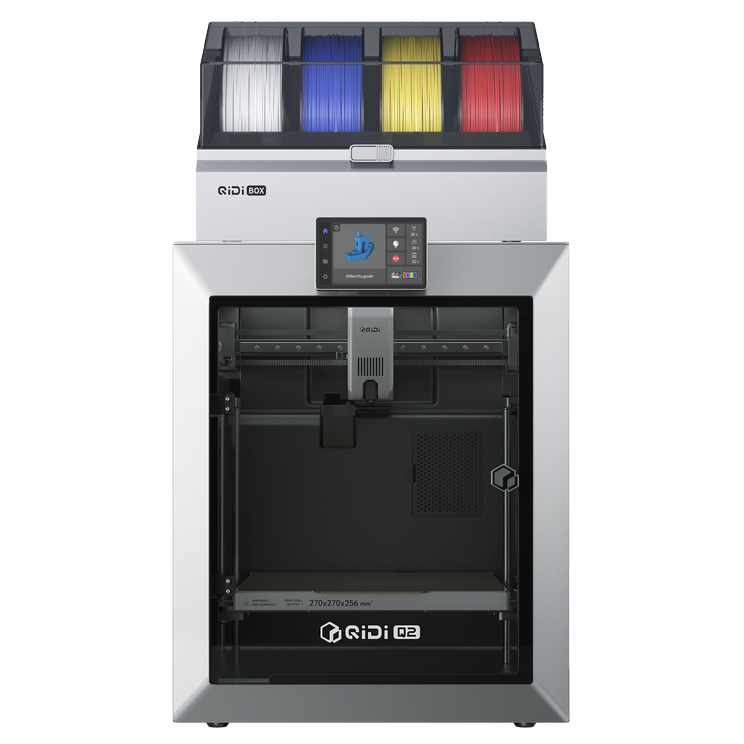

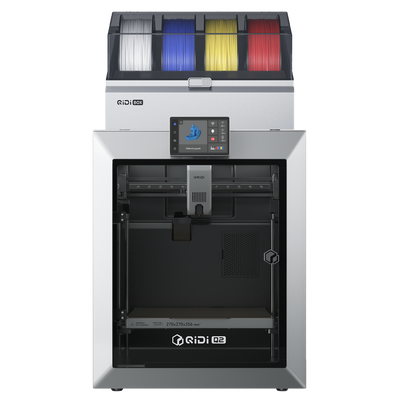

| Filament Diameter 1.75mm | Multi-Color Printing Compatible with QIDI Box(Multi-color) |
| Air filterYes（3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon） |
Chamber Temperature(PTC Heater) 2nd Gen Up to 65° C Independent Chamber Heating |
| Automatic Leveling Hands-free Automatic Leveling（Loadcell Sensor Integrated into the Hotend） | Filament Detection Run Out Sensor(mounted above extruder), Clog and Tangle Detection(QIDI BOX required) |
| AI Camera Detection Yes | Auxiliary Part Cooling Fan 4-Pin PWM Fan with RPM Feedback |
| Hot End Cooling Fan 4-Pin PWM Fan with RPM Feedback | Model Cooling Fan 4-Pin PWM Fan with RPM Feedback |
| Power Loss Recovery： Yes | Input Shaping Yes |
| Voltage 110V / 220–240V AC, 50/60Hz (region-specific models available) | Rated Power 350W+280W(Chamber Heating) |
| Camera Camera (Up to 1080P) Timelapse Supported | Storage 32G EMMC and USB2.0 Flash Drive |
| Connectivity 2.4 GHz/5 GHz Wi-Fi, Ethernet, USB | Display Screen 4.3 Inch 480*272 Touch Screen |
| Slicer QIDI Studio and other third-party software, such as Orca,PrusaSlicer etc. | File Formats for Slicing STL, OBJ, 3MF,STEP,STP |
