• Objet24 Desktop 3D Printer

    Objet

  • $0.00

  • Share this product

Description

Call us for a quote

High resolution 3D printing with 28 micron layer thickness isn’t just for big-budget enterprises. With Objet’s family of low-cost desktop 3D printers, designers and engineers can build true-to-life models and prototypes featuring ultra-precision details straight from the office desk.

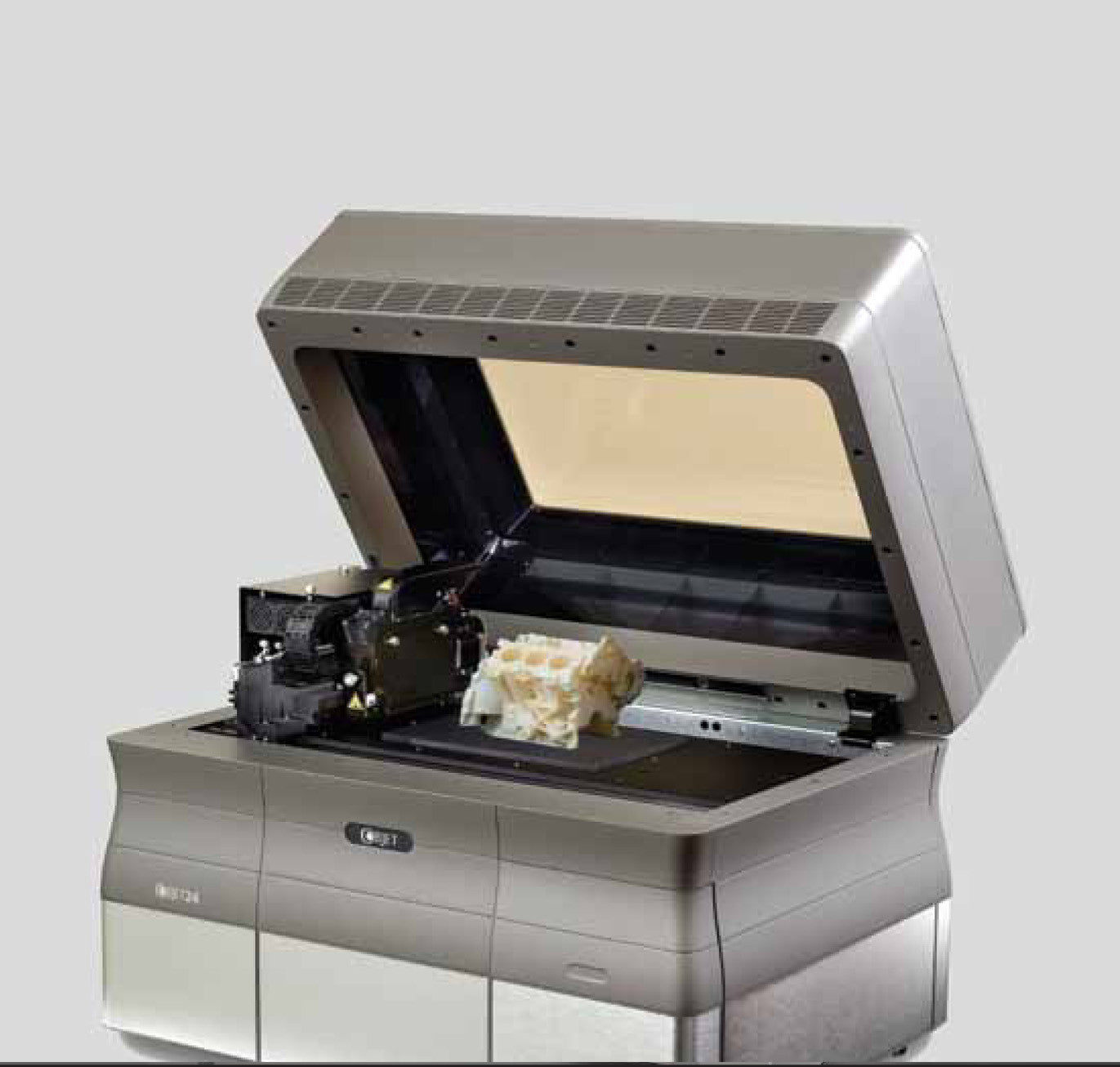

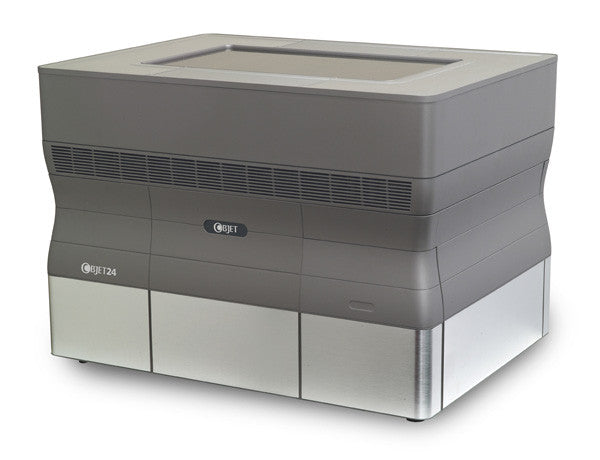

The Objet24 Desktop 3D Printer

The first desktop system to print true-to-life models featuring strong material, small moving parts, thin walls and smooth, paintable surfaces. The Objet24 is ideal for product and industrial designers and engineers looking to produce highly accurate models for visual aids, fit and assembly testing and functional applications.

Models printed on the Objet24 can be painted, drilled, machined or used for vacuum forming. The Objet24 uses Objet's rigid white material - ideal for general purpose 3D modeling and featuring excellent dimensional stability.

Shorten your Product Development Cycle

With an Objet24 on your desktop you can go through multiple design iterations in a single day to rapidly finalize and approve designs for production. The Objet24 lets you rapidly prototype whatever you need , as often as you like, in the convenience of your office – without the hassle of specialist training or equipment.

Technical Specifications



Layer Thickness (Z-axis)
Horizontal build layers down
to 28-micron (0.0011 in)
Tray Size (X×Y×Z)
240 × 200 × 150 mm
(9.45 × 7.87 × 5.9 in)
Net Build Size (X×Y×Z glossy)
234.4 x 192.7 x 148.6 mm
(9.22 x 7.58 x 5.85 in)
Build Resolution
X-axis: 600 dpi
Y-axis: 600 dpi
Z-axis: 900 dpi
Accuracy
0.1 mm (0.0039 in)
(Accuracy varies according to geometry, part
orientation and print size)
Material Supported
• VeroWhitePlus Opaque material
Support Type
• FullCure®705 Support
• Non-toxic gel-like photopolymer support
easily removed by WaterJet
Materials Cartridges:
Sealed 4x1 Kg (2.2 Ibs) cartridges
Power Requirements
Single phase:
100-120V~; 50-60Hz; 7A
200-240V~; 50-60Hz; 3.5A
Machine Dimensions (W×D×H)
82.5 × 62 × 59 cm
(32.28 × 24.4 × 23.22 in)
Machine Weight
93 kg (205 lbs)
Software
Objet Studio™ features:
• Automatic build orientation
• Automatic real time
support structure generation
• Slice on the fly
Workstation Compatibility
Windows XP, Windows 7
Network Connectivity
Ethernet TCP/IP 10/100 base T
Input Formats
STL and SLC Files
Operational Environment
Temperature 18 C - 25 C (64 F - 77 F)
Relative Humidity 30 - 70 %
Special Facility Requirements
None
Jetting Heads
SHR (Single Head Replacement), 2 heads
Regulatory Compliance:
CE/FCC/RoHS
Other Features
• Quiet office operation

All specifications are subject to change without notice.
Machine color may vary.
