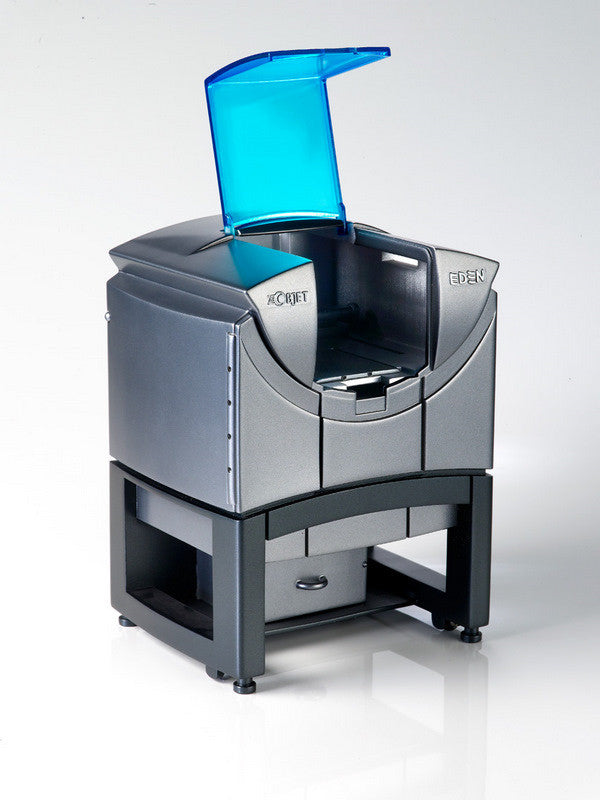

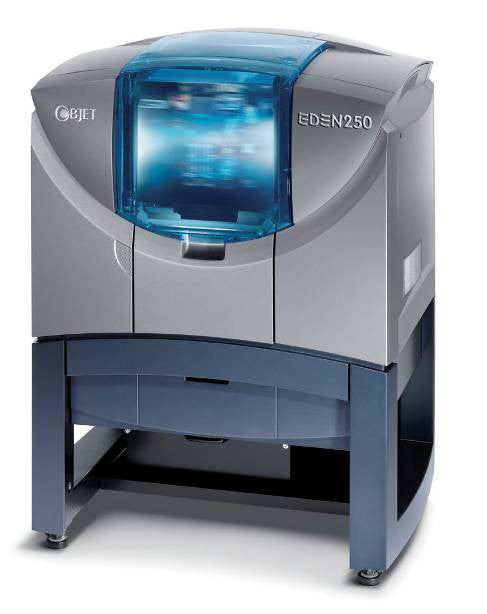

• Objet Eden250 Superior 3D Printer

    Objet

  • $0.00

  • Share this product

Description

Call us for a quote

The 16-Micron-layer 3D Printing System

The Eden250™ 3D printer provides the perfect entry point to the world of professional rapid prototyping.

Based on Objet's advanced inkjet technology, the Objet Eden250 provides a complete solution for the accurate building of any geometry – easily, quickly, cleanly and cost effectively. Models produced on the Eden250 are smooth and durable, with fine details and an outstanding surface finish.

The small-footprint system uses a completely clean process, making it ideal for standard office environments. It even fits through a typical doorway, making installation simple and quick.

With the Objet Eden250, consumer products, electronics, medical devices and fashion accessories companies, along with academic institutions and small businesses, can easily afford to bring their modeling in-house. This enables them to maintain full design confidentiality and improves group creativity by making it quick and cost effective to “see and touch” even early ideas.

Key Benefits

    High quality, reliable 3D printing system

    Outstanding accuracy, surface features and fine details

    Clean, smooth surfaces

    Highly flexible system

    Office friendly



Advance to Eden quality. The cost effective route to superior models.

    • Ultra-thin-layer PolyJet™ technology

    • 16 micron high resolution ensures smooth surfaces and fine details

    • Tray size: 260×260×200 mm

    • Office environment

    • Wide range of materials: FullCure®720, Vero and Durus

    • High Speed & High Quality Printing Modes

    • “Click & build” network printer



Technical Specifications



Layer Thickness (Z-axis)
Horizontal build layers down to 16-micron
Tray Size (X×Y×Z)
260×260×200 mm
Net Build Size (X×Y×Z)
250×250×200 mm
Build Resolution
X-axis: 600 dpi
Y-axis: 300 dpi
Z-axis: 1600 dpi
Printing Modes
High Quality (HQ): 16-micron
High Speed (HS): 30-micron
Typical Accuracy
20-85um for features below 50mm
Up to 200um for full model size
(for rigid materials only, depending on geometry,
build parameters and model orientation)
Material Supported
• FullCure®720 Model transparent
• VeroWhite Opaque material                                                      • VeroBlue Opaque material
• VeroBlack Opaque material

Support Type
• FullCure®705 Support
• Non-toxic gel-like photopolymer support
easily removed by WaterJet
Materials Cartridges
Sealed 2×2 kg cartridges easily and instantly
replaced through a front-loading door
Power Requirements
110 – 240 VAC 50/60 Hz
1.5 KW single phase
Machine Dimensions (W×D×H)
870×735×1200 mm
Machine Weight
Net 280 kg
Gross (in crate) 330 kg
Software
Objet Studio™ features:
• Suggested build orientation and speed,
Auto-placement
• Automatic real time support structure generation
• Slice on the fly
• PolyLog™ Materials Management
• Network version
Input Format
STL and SLC File
Operational Environment
Temperature 18˚C – 25˚C
Relative Humidity 30 – 70%
Special Facility Requirements
None
Jetting Heads
SHR (Single Head Replacement), 4 units
Network Communication
LAN – TCP/IP
Compatibility
Windows XP, Windows 2000
Other Features
• Removable tray for high productivity
• Quiet office operation

All specifications are subject to change without notice.
Machine color may vary.
