• Flashforge Inventor 3D Printer (ex gst)

    3D Printer Superstore

  • 19 Reviews ( 4.9 )
  • $0.00

  • Share this product

Description

The 3D Printer Superstore is proud to announce the global release of the Flashforge Inventor 2017. This latest design is a further development of the Highly acclaimed Flashforge Dreamer Series of 3d printers which includes an increased build volume and enhanced features. These include a larger build volume by increasing the build height by 20mm. The build size is now 230 x 150 x 160mm. New technology includes a on-board camera to monitor your 3d prints from any mobile device. Also an pause/ auto restart feature has been included if power is cut from your 3d printer.

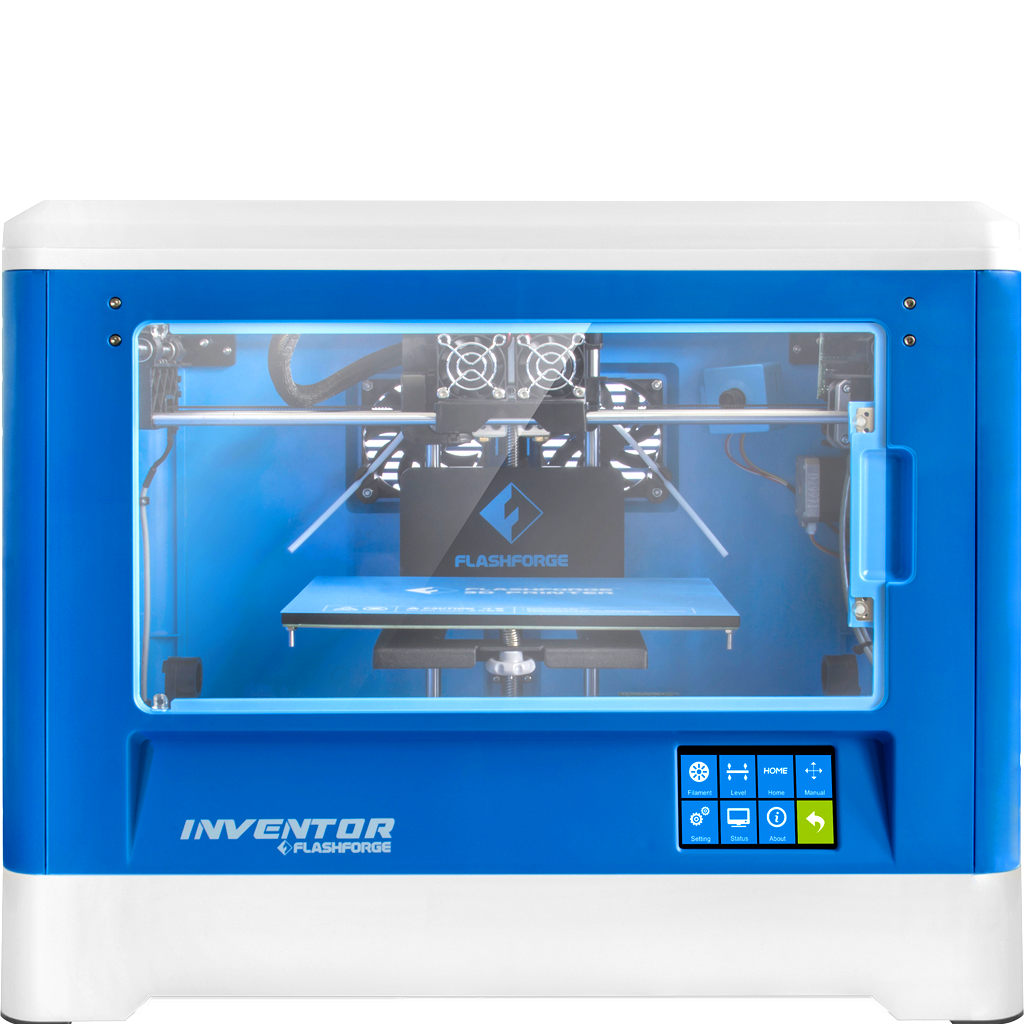

Dreamer Pro / Flashforge Inventor 3d printer 2017 front view

The all new Flashforge Inventor 2017 can print large 230 x 150 x 160mm models

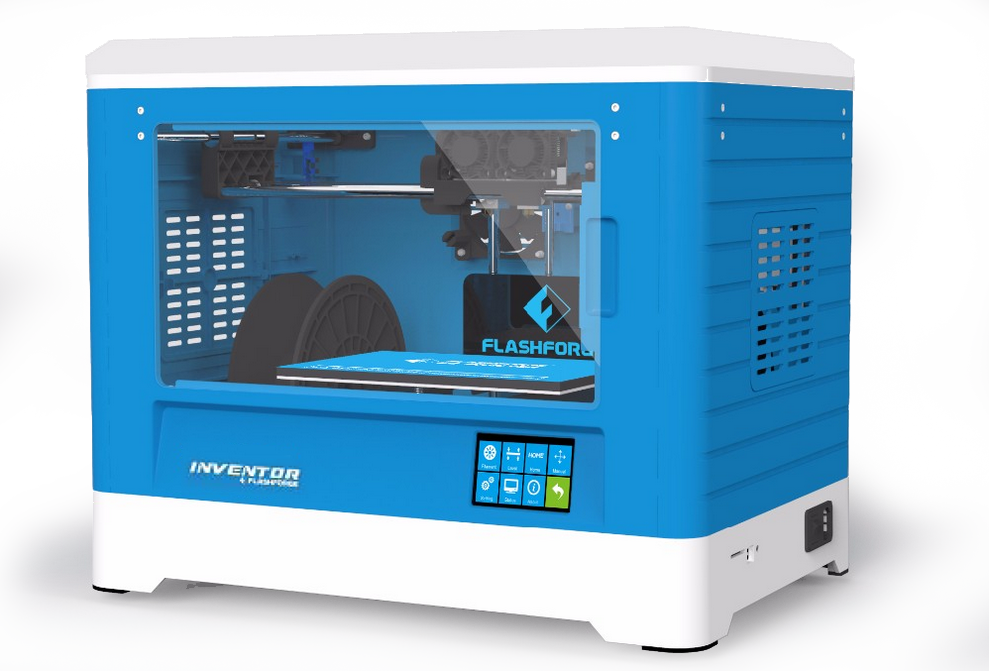

Flashforge Inventor 2017 Dreamer Pro with Inbuilt CameraThe new Flashforge Inventor for 2017 now includes a camera so you can monitor your 3d prints from mobile devices





This 3D Printer has become available thanks to open source technology. With an improved design and at less than two thirds the price of the original, it is the best value fully capable Dual Head 3D printer on the market.

Flashforge have developed their own easy to use 3D printer software - Flashprint which can generate gcode files or send directly to the printer via USB or SD Card. You may also use open source and third party 3D Printing slicing software with the FlashForge Inventor such as Simplify3D.

Creator pro now used flashprint software

Flashprint 3D Pritning Software for Flashforge 3D Printers

The Flashforge Inventor is a high performance, easy to use 3d printer and offers excellent value. Flashforge is fast becoming the largest 3D printer company in China for good reason!

Flashforge Flashprint custom support structures

The Flashforge Flashprint 3D Printing software that comes standard with these printers has seen a number of advancements. Although being very easy to use, it now includes some of the most advanced features that we have seen in 3d slicing programs. You can now generate your own custom support structures. Let the software automatically generate them, or add and subtract them at will.

Flashprint Slicing software now includes Tree Like support structures for resin printing

The Flashprint 3D Slicing software will now automatically build tree like support structures, plus you can build your own with just a few clicks. This powerful feature is especially ideal for creating support structures for Resin 3D Printers such as the up and coming Flashforge DLP Explorer.

With further improvements from the original design including improved electronic circuitry, a higher 0.1mm Z resolution, a refined MK9 print head and the addition of a cast aluminum heated build platform, allowing for printing in ABS and PLA plastic.

Flashforge Creator Pro 2016 dual extruder print head

The left print head is optimised for PLA with integrated fan, whilst the right extruder is optimised for ABS

If this is not the best value low cost dual head 3D printer on the market, let us know, because we want to know about it!

Fully Enclosed-

The Flashforge Inventor is fully enclosed and includes a tempurature sensor combined with dual extraction fans. This enables the 3d printer to control internal temperatures of the enclosure, controlling cooling and optimising cooling rates for different printing materials which improves print quality, and significantly reducing warping of printed parts.

Improved Heated Build Platform-

The Flashforge Inventor includes an improved 6.3mm aluminum heat bed which has great flatness and a more even heat distribution, enabling more precise prints and better part adhesion. This platform can be heated up to 120℃, enabling the printer to print in ABS an HIPS plastic. Additionally the head be now includes an 3 point bed leveling system which simplifies the calibration the build platform. The Z axis has also been improved with increased rigidity and improved print quality, now with 10mm Z-axis Rods & Metal Supports.



Flashforge Creator Build Plate and Rails

Improvements to the 2017 edition of the Flashforge Creator Pro include a solid cast aluminum heat bed and 10mm Z axis rods.



The MK9 Dual Extruder Head-

The MK9 extruder head is suitable for printing PLA, PVA, ABS, HIPS, Flexible and new materials such and metals filled. It includes spring loaded tensioner, ensuring optimal reliability of the filament feeding mechanism. It incorporates a quality Nema stepper motor, polyoxymethylene injection molded and CNC machined aluminum parts as well as roller bearings for smooth axial motion and low friction teflon tubing, ensuring quality and reliable printing.

Dual print heads enpower the creativity by enability the production of two colour parts. Additionally the second print head can be used to print soluble support structures. No more cleaning up of complex supports inside internal cavities, now you can print in water soluble PVA, Lemonine soluble HIPS or Caustic soda soluable PLA.

FlashForge Creator Pro MK9 Dual Extruder Dual Colour & Soluable Support Structures

Two Heads are better then one- The Flashforge Inventor can print two colour parts and soluble support structures.

Flashforge Inventor 2017 rear view with dual extration fans

The compact design of the Flashforge Inventor has the filament spools located inside the machine. The rear panel includes dual extraction fans which are used to regulate interior temperatures.



Whats in the Box-



Flashforge Inventor 2017 contents

Fine Detailed Printing-

Moon Buggy 3D Printed On a Flashforge Creator ProHigh Heal Shoe 3D Printed On a Flashforge Creator ProRobot Hand 3D Printed On a Flashforge Creator ProCreator Pro 3D Printed Building in PLA

When it comes to 3D printers, the proof is in the print quality. This is where the Flashforge Inventor 2017 3D printer delivers. No other printer gives you so much performance for such a small price tag. This is the best value low cost printer on the market today!

Downloads-

Flashforge Inventor User Manual pdf

Latest Software and Firmware

Specifications-

Print volume / build size (X,Y,Z) 5.5 litres (230x 150x160)
mm
Frame size (X,Y,Z) 476x332x383 mm
Resolution (Z-AXIS) 0.1 - 0.3   mm
Accuracy (Theoretical positioning resolution) Z axis 0.0025, XY axis 0.011 mm
Print Speed 40-150 mm/sec
Total mass 13.5 kg
Nozzle diameter 0.4 mm
Nozzle Flow Velocity 24 cc/hr
Recommended Nozzle Temp 230
Filament Diameter 1.75 mm
Filament Material ABS, PLA, PVA, HIPS, Nylon etc
Slicing Software Flashprint / Simplify3d (optional)
OS Support Windows 7, Linux, Mac OX
Print without PC Yes with SD card (included) or USB link
Heated Bed included  Yes up to 120
Power Consumption 220V, 350W
Extruder Heads included 2
Comes with 6 Months Extended Replacement Parts Warranty
