• e3D Legends Pack (ex gst)

    E3D

  • 0 Reviews ( 0.0 )
  • $309.00

  • Share this product

Description

genuine E3d online reseller

We are Australian Distributors of the infamous E3D V6 high performance full metal Hot Ends.

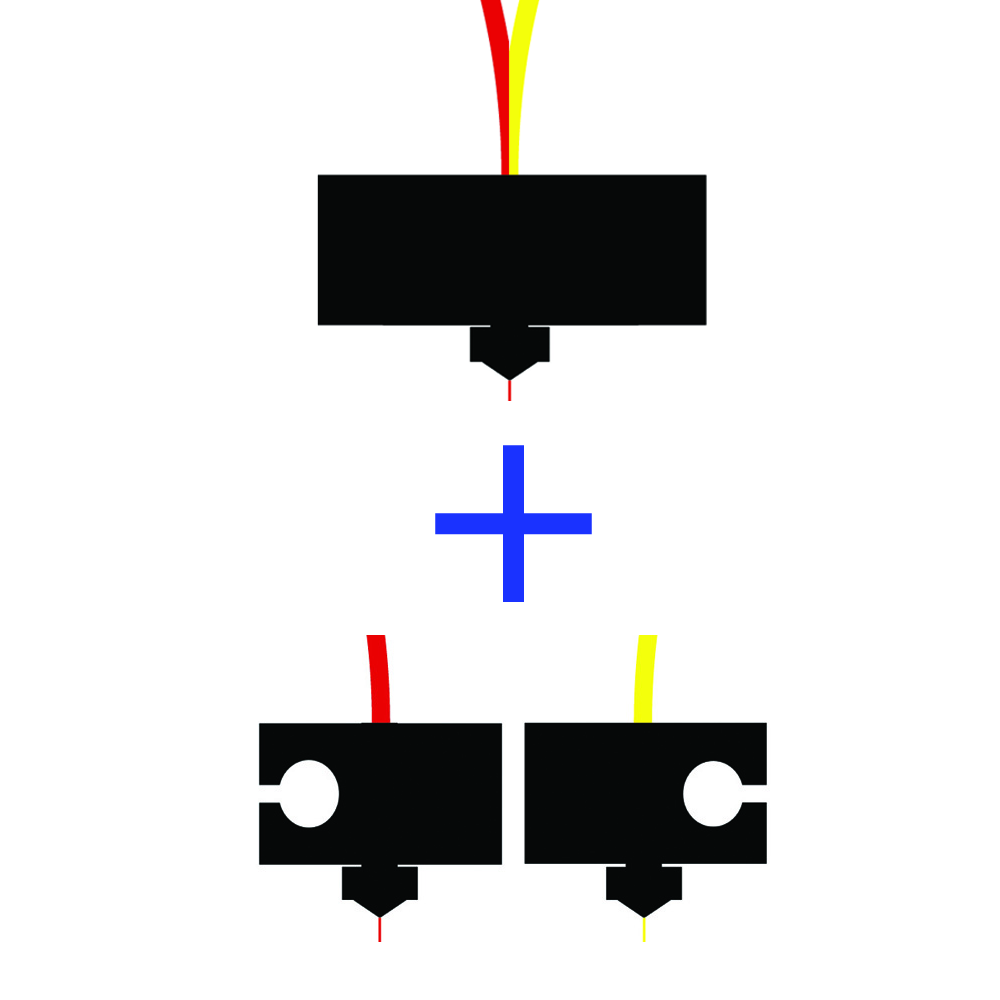

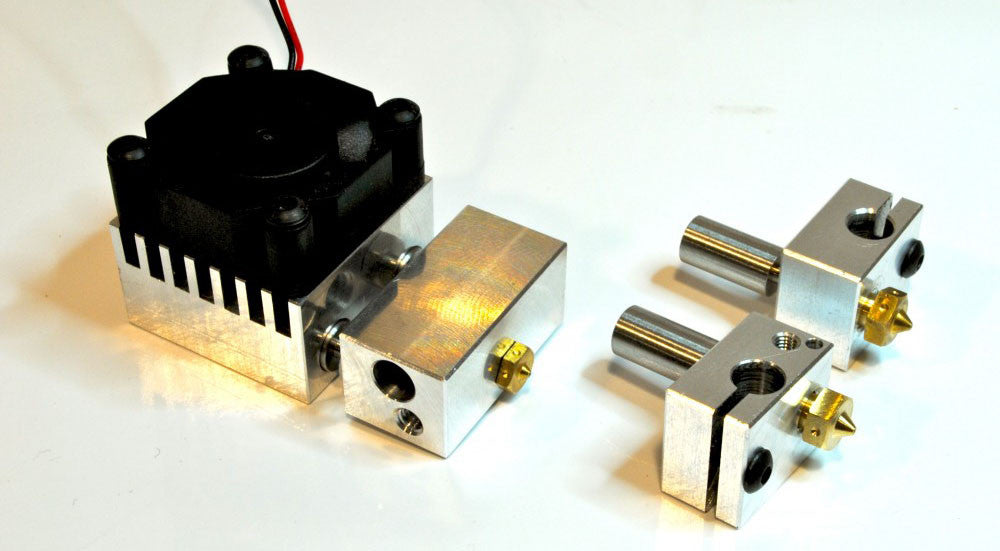

The e3D Legends pack includes both the Chimera and Cyclops multi-extrusion systems in one package. This enables you to be able to swap and change between the two options print head configurations on the one printer.

e3D Legends Pack

Add Multi-Extrusion capability to your machine with the easiest, most versatile, and highest performance HotEnds in the industry. E3D has a range of modular systems which give you the ability to create printers that can print a wide range of colours and materials in a single object, in one print.

These 3D printer Hot Ends are well regarded as one of the best full metal Hot Ends.  They are suitable for printing the widest range of print materials with excellent print results, allowing for soft flexible materials and higher temperature filaments such as polycarbonate and Nylons.

These well crafted HotEnds have renowned for their print quality, minimal blockading, fast response and efficient thermal properties, eliminating HotEnd meltdown failures associated with PEKK/PTFE designs. This HotEnd with the supplied thermistor can reach 300 degrees C (can reach 400 degree C with however may require additional electronics) and will heat from 20C to 200C in 65 seconds and the temperature control responsiveness will keep the HotEnd within 0.5 degrees C.

Dual Extrusion

Dual Extrusion brings the abilities of your printer to a whole new level; providing a way to print items in multiple colours, multiple materials and soluble support structures giving you unprecedented freedom in what you can print. Multi-material prints allow you to combine distinctly different material properties in a single print. Support materials allow you to ignore problems of overhangs or picking off tedious-same material supports by using soluble support materials, or materials that break away cleanly from your prints. If you are looking to expand your 3D printing capability and experiment with new ways to 3D print, then the Legends Pack which includes the Chimera and Cyclops is the ideal solution for you.

This multiple extrusion systems share some core design principles to the e3D HotEnds:
    The signature E3D V6 All-Metal, high performance design for fantastic prints in every material, every time.
    Easy to level nozzles make getting started in dual extrusion easier than ever before.
    Absolute minimum size and weight, won’t weigh down your machine or reduce printing performance.

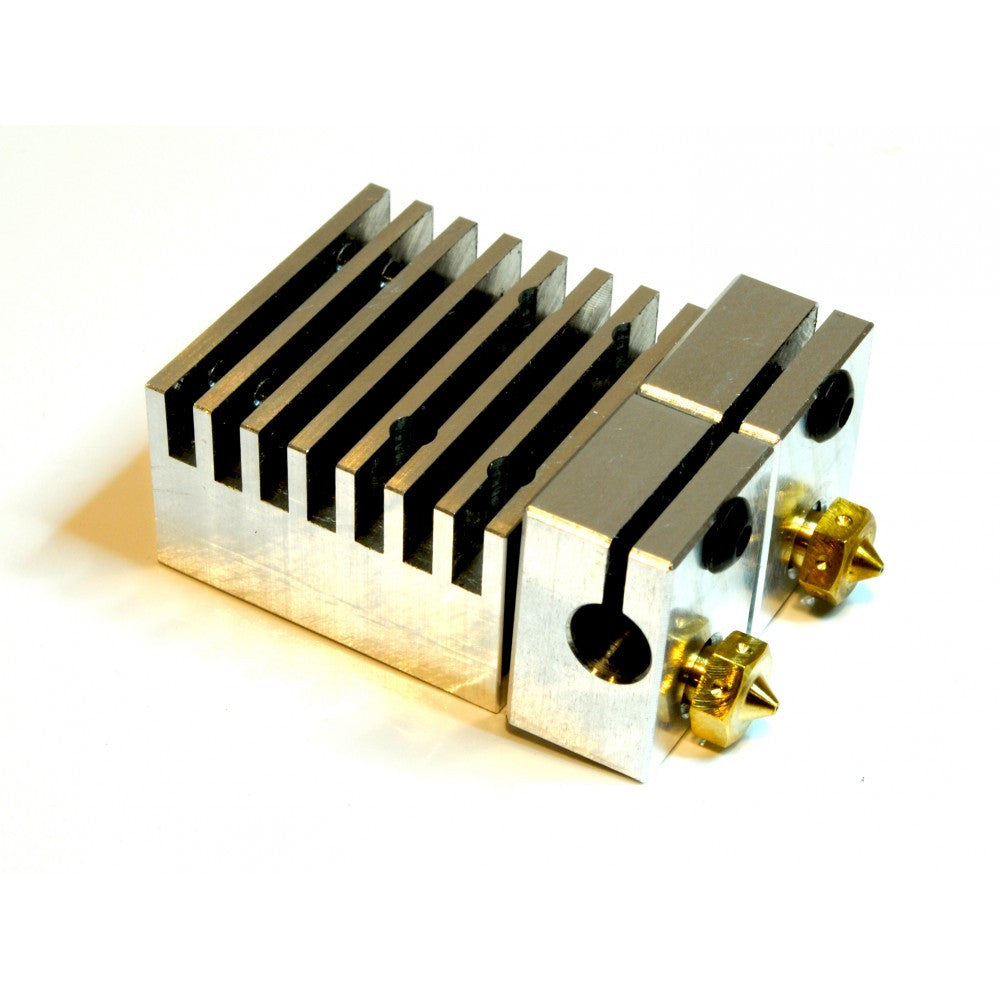

The Chimera 2 in 2 out

e3d chimera hotEnd

The Chimera is a neat and simple  and light weight way in which to add conventional dual extrusion to your machine in a simple, air cooled package. Nozzles can be individually adjusted in height for an easy setup experience. Each nozzle is individually temperature controllable for ultimate material versatility. Chimera inherits the best from it’s cousins, e3D v6 and e3 Kraken, combining them into a single, reliable, yet highly capable hotend with a tiny 30x28mm footprint and easy mounting.

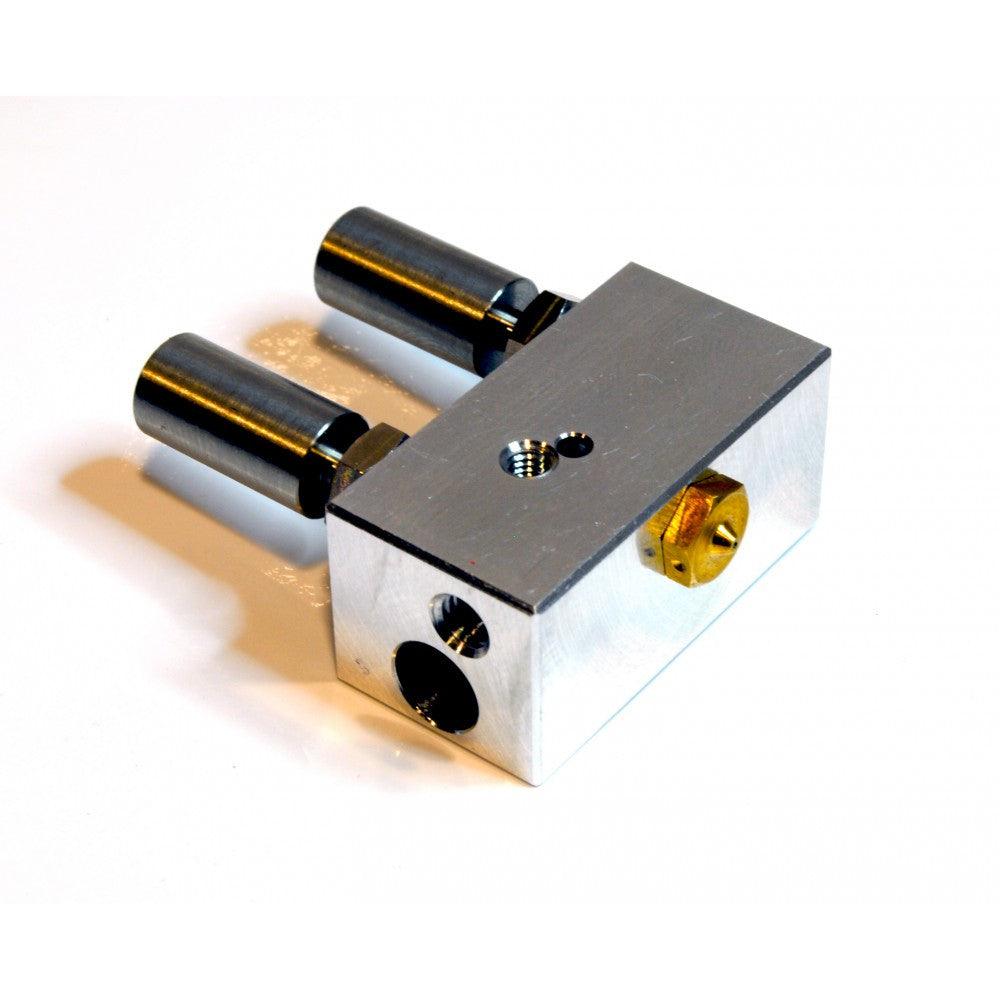

The Cyclops 2 in 1 out

The e3D Cyclops HotEnd

The Cyclops introduces a new way of printing multiple materials not yet seen before in commercially available hotends. By taking 2 input materials and printing them alternately from a single nozzle Cyclops is able to eliminate ooze problems that are inherent in most conventional dual extrusion systems. A great advantage of using the e3D Cyclops HotEnd this the fact that there is only one nozzle, eliminating any alignment issues associated with dual extrusion. This new approach has been working excellently, but it is released as an experimental product.

Some experimental techniques which e3D have conducted using the Cyclops Dual Extruder.

Whats in the box

    1 x Cyclops Cooler Block
    2 x Cyclops Heat Breaks
    1 x Cyclops Heat Block
    1 x Cyclops Nozzle 0.4mm
    2 x Kraken Heat Breaks
    2 x V6 Heater Blocks
    2 x V6 Nozzle 1.75mm x 0.4mm
    2 x Bowden Couplings- Threaded
    2x Bowden Couplings -For Metal
    1.6m x PTFE Tubing (1.75mm)
    3 x 100K Semitec Thermistor
    300mm x Blue Fibreglass Sleeving
    3 x 2-Way Thermistor Cable
    3 x (12V or 24V) 25W Heater Cartridge
    1  x (12V or 24V) 30x30x10mm Fan
    1 x "Cyclops Cold Side" Kit
    1 x "Cyclops Hot Side" Kit
    1 x "Dual V6 Hot Side" Kit
    1 x Cyclops Spanner

 For more information and assembly guides on the e3D Legends pack can be found -here-
