Objet24 Desktop 3D Printer

Sold Out out of stock

Call us for a quote

High resolution 3D printing with 28 micron layer thickness isn’t just for big-budget enterprises. With Objet’s family of low-cost desktop 3D printers, designers and engineers can build true-to-life models and prototypes featuring ultra-precision details straight from the office desk.

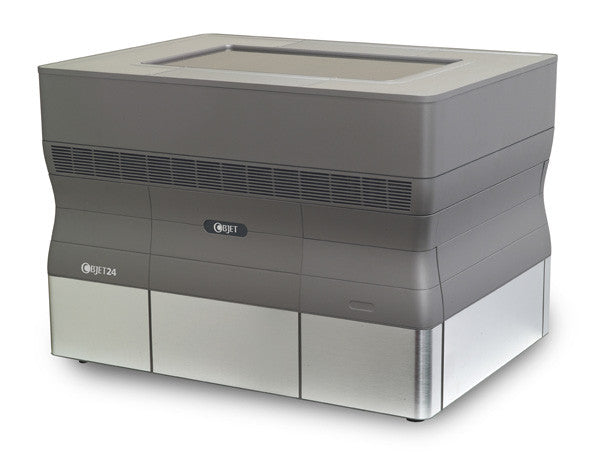

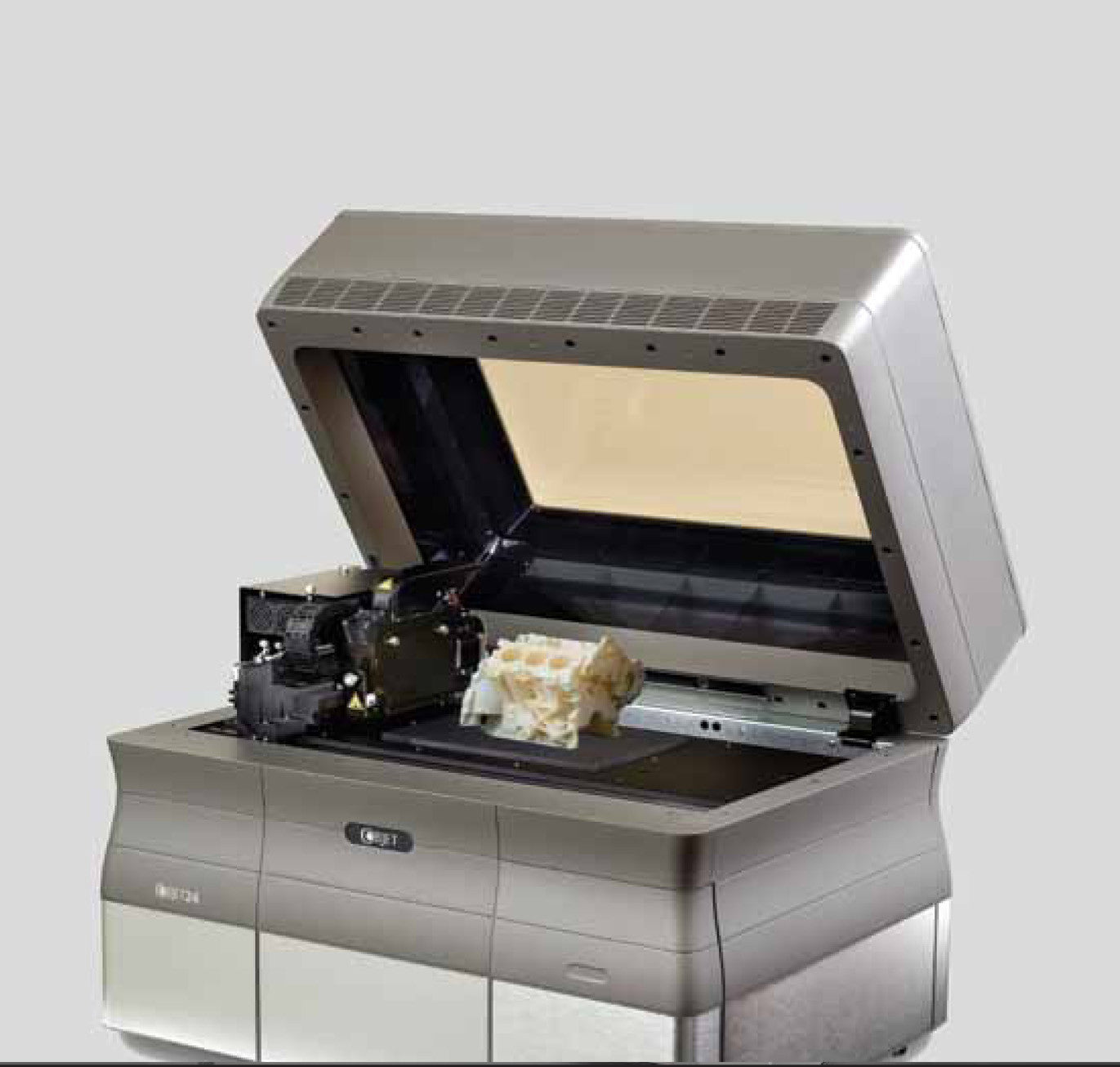

The Objet24 Desktop 3D Printer

The first desktop system to print true-to-life models featuring strong material, small moving parts, thin walls and smooth, paintable surfaces. The Objet24 is ideal for product and industrial designers and engineers looking to produce highly accurate models for visual aids, fit and assembly testing and functional applications.

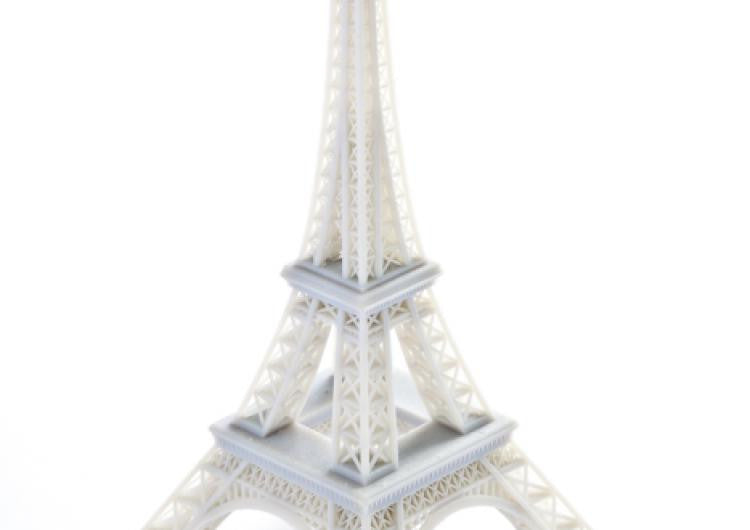

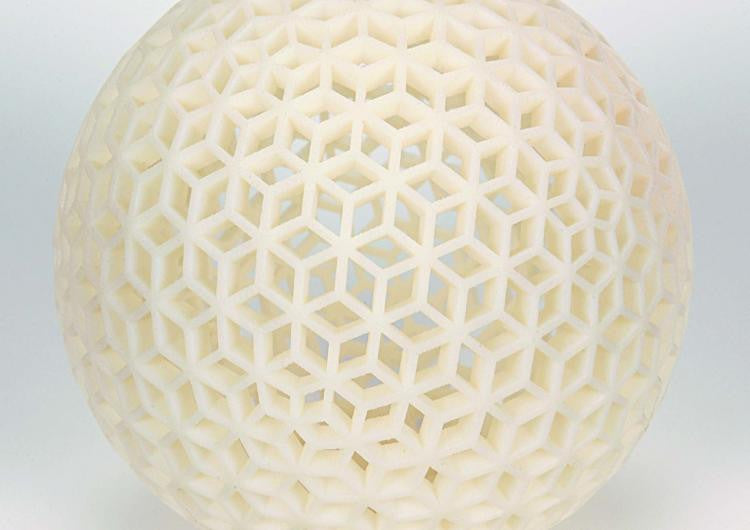

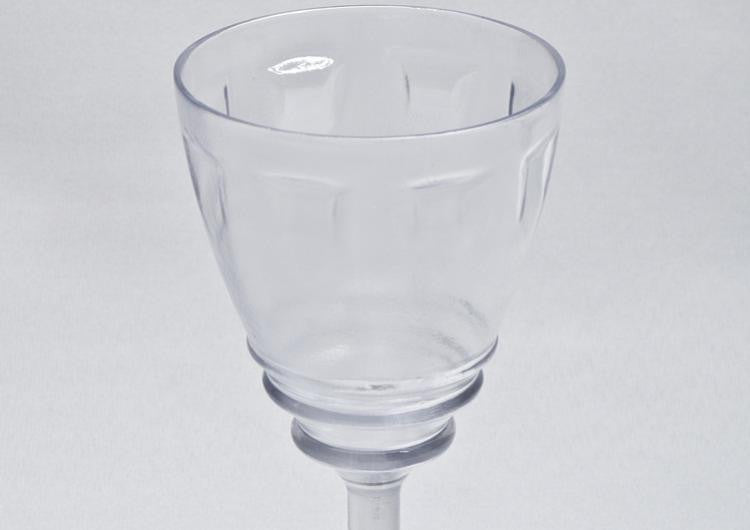

Models printed on the Objet24 can be painted, drilled, machined or used for vacuum forming. The Objet24 uses Objet's rigid white material - ideal for general purpose 3D modeling and featuring excellent dimensional stability.

Shorten your Product Development Cycle

With an Objet24 on your desktop you can go through multiple design iterations in a single day to rapidly finalize and approve designs for production. The Objet24 lets you rapidly prototype whatever you need , as often as you like, in the convenience of your office – without the hassle of specialist training or equipment.

Technical Specifications
Layer Thickness (Z-axis) Horizontal build layers down to 28-micron (0.0011 in) Tray Size (X×Y×Z) 240 × 200 × 150 mm (9.45 × 7.87 × 5.9 in) Net Build Size (X×Y×Z glossy) 234.4 x 192.7 x 148.6 mm (9.22 x 7.58 x 5.85 in) Build Resolution X-axis: 600 dpi Y-axis: 600 dpi Z-axis: 900 dpi Accuracy 0.1 mm (0.0039 in) (Accuracy varies according to geometry, part orientation and print size) Material Supported • VeroWhitePlus Opaque material	Support Type • FullCure®705 Support • Non-toxic gel-like photopolymer support easily removed by WaterJet Materials Cartridges: Sealed 4x1 Kg (2.2 Ibs) cartridges Power Requirements Single phase: 100-120V~; 50-60Hz; 7A 200-240V~; 50-60Hz; 3.5A Machine Dimensions (W×D×H) 82.5 × 62 × 59 cm (32.28 × 24.4 × 23.22 in) Machine Weight 93 kg (205 lbs) Software Objet Studio™ features: • Automatic build orientation • Automatic real time support structure generation • Slice on the fly	Workstation Compatibility Windows XP, Windows 7 Network Connectivity Ethernet TCP/IP 10/100 base T Input Formats STL and SLC Files Operational Environment Temperature 18 C - 25 C (64 F - 77 F) Relative Humidity 30 - 70 % Special Facility Requirements None Jetting Heads SHR (Single Head Replacement), 2 heads Regulatory Compliance: CE/FCC/RoHS Other Features • Quiet office operation

All specifications are subject to change without notice.
Machine color may vary.
