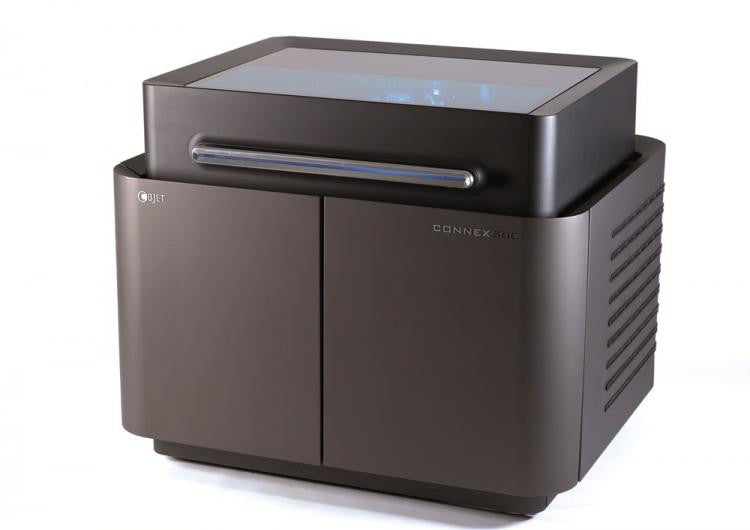

The Objet Connex500™ is Objet’s top of the line multi-material 3D printer. Featuring a large build tray size of 500 x 400 x 200mm, it enables designers and engineers to rapidly build prototypes to simulate their intended end-product closer than any other technology.
What’s Unique about Objet Connex?

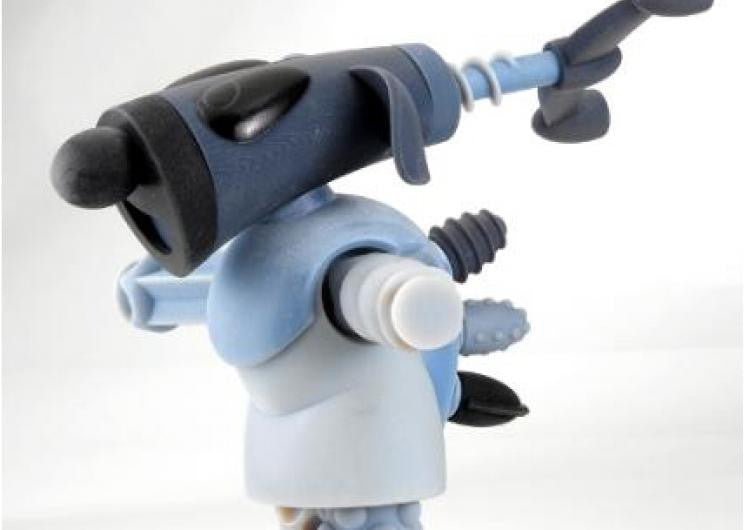

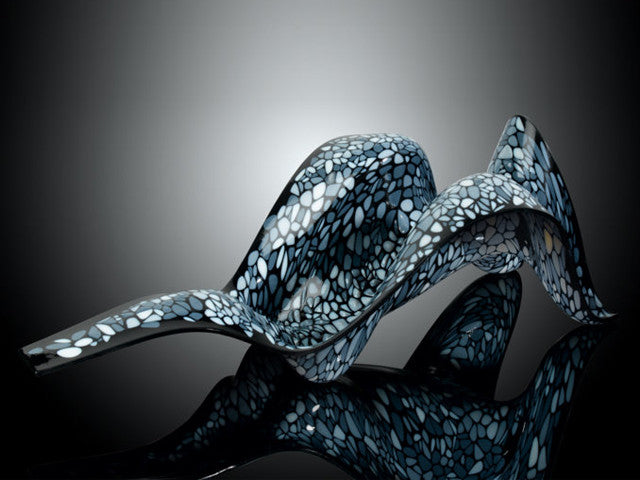

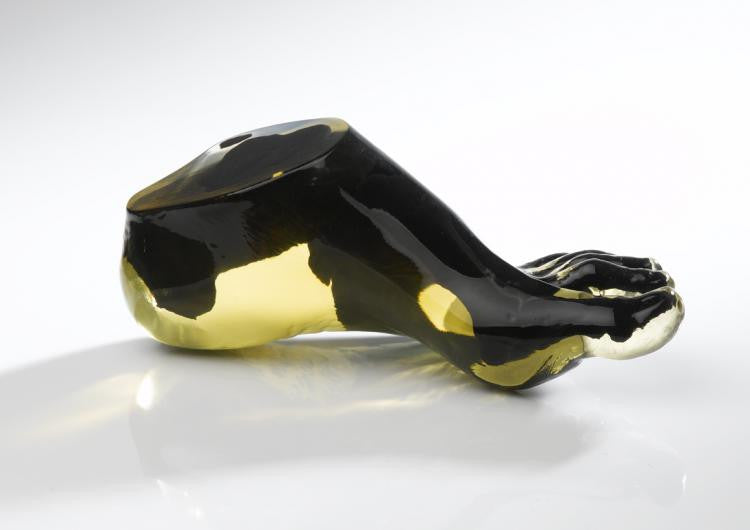

Using Objet’s patented simultaneous multi-material jetting technology, the Objet Connex500 can print models made of up to 14 different materials, in a single print job. The system is ideal for designers and engineers looking to effectively highlight the varying material components in complex or assembled products.
Freedom to Select your Own Materials

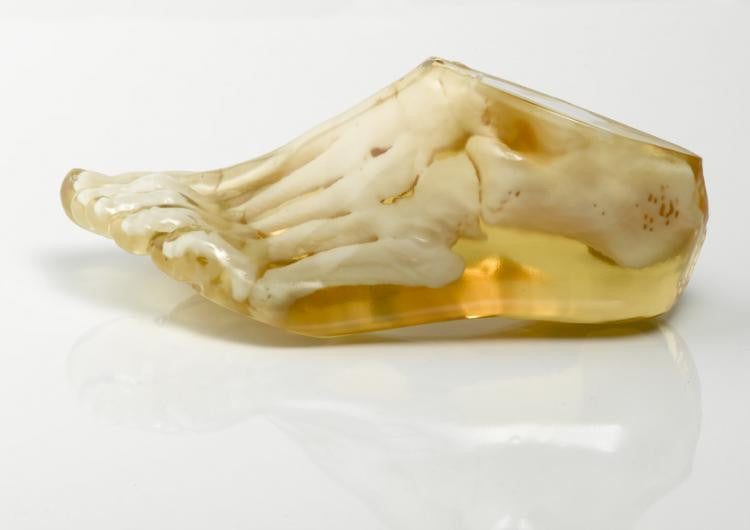

From an unrivalled range of over 100 materials including up to 90 Digital Materials™, the Objet Connex500 allows users to simulate diverse mechanical and physical properties, from rubber to rigid; opaque to transparent; and standard to ABS-grade engineering plastics.
Technical Specifications |
|
|
|
Layer Thickness (Z-axis) Horizontal build layers down to 16-micron Tray Size (X×Y×Z) 500×400×200 mm (19.7×15.7×7.9 inch) Net Build Size (X×Y×Z) 490×390×200 mm (19.3×15.4×7.9 inch) Build Resolution X-axis: 600 dpi Y-axis: 600 dpi Z-axis: 1600 dpi Printing Modes Digital Material (DM): 30-micron (0.001 inch) High Quality (HQ): 16-micron (0.0006 inch) High Speed (HS): 30-micron (0.001 inch) Typical Accuracy 20-85um for features below 50mm Up to 200um for full model size (for rigid materials only, depending on geometry, build parameters and model orientation) Supported Model Materials • FullCure®720 General Purpose, transparent material • Vero Family opaque materials • DurusWhite Polypropylene-like material • Tango Family rubber-like flexible material |
Digital Materials Wide range of composite materials fabricated on the fly Support Type • FullCure®705 Support • Non-toxic gel-like photopolymer support easily removed by WaterJet Materials Cartridges: • Four sealed 3.6 kg (7.9 lb) cartridges • Tango family and DurusWhite also available as 1.44kg (3.17 lb) net weight in 3.6 kg casing • Two different model materials loaded • Front loading for quick replacement Power Requirements 110–240 VAC 50/60 Hz 1.5 KW single phase Machine Dimensions (W×D×H) 1420×1120×1130 mm (55.9×44.1×44.5 inch) Machine Weight Net 500kg (Net 1102 lb) Operational Environment 18°C to 22°C (64.5°F to 71.5°F) Relative Humidity 30 – 70% Compatibility Windows XP, Windows Vista |
Software Objet Studio™ for Connex500 features: • Easy selection of materials including Digital Materials • Part separation into sub-assemblies • Automatic real time support structure generation • Suggested build orientation and speed, auto-place • Slice on the fly • Network version Input Formats STL, OBJDF and SLC Files CADMatrix™ Add-in CADMatrix add-in enables designers and engineers to seamlessly assign Objet model materials to multi-part, multi-material designs within CAD software*, thus allowing for increased control of 3D model validation. Special Facility Requirements None Print Heads 8 Units Network Communication LAN – TCP/IP * CAD software: CADMatrix™ is compatible with the following: Pro/ENGINEER®, SolidWorks, AutoDesk Inventor |
